LCD Touch Screen Wallpen Wall Printer Vertical Machine

LCD Touch Screen Wallpen Wall Printer Vertical Machine

  • LCD Touch Screen Wallpen Wall Printer Vertical Machine
  • LCD Touch Screen Wallpen Wall Printer Vertical Machine
LCD Touch Screen Wallpen Wall Printer Vertical Machine
Product Details:
Place of Origin: Beijing, China
Brand Name: Zhongkemeichuang
Certification: CE for machine, RoHS for ink
Model Number: ZK-Q8 Foldable
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: 1 plywood box
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Name: LCD Touch Screen Wallpen Wall Printer Vertical Machine Ink Consumption: 8--12ml/㎡(less Than 1usd)
Ink Base Color: 4 Colors CMYK, Eco-friendly Odorless Wter-based Ink Auto Skip Blank: Y
Printhead: Foldable, Printhead Can Be Folded Down To Maintain More Moisture Display Screen: 7" LCD
Horizonal Rail: Foldable, Lead Rails Width Only 24cm When Folded Ultrasonic Sensors: 2pcs
Ink Heating: Y Dpi: Up To 2880
High Light:

lcd wallpen wall printer

,

touch screen wallpen wall printer

,

touchscreen vertical wall printer machine

LCD Touch Screen Wallpen Wall Printer Vertical Machine



We are upgrading our wall printer all the time for the convenience use of the machine buyers.



Wall printer can print any size of any patterns.

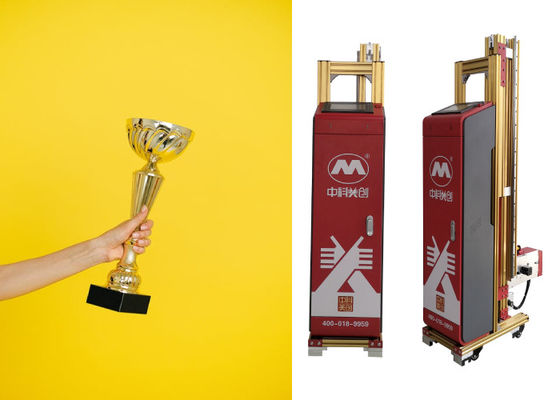

After folded, the printer is only 1.4meter in height, can be put easily into the back of a car, or into elevator. Whats more, after finish work, the print head can be rotated direction to the floor and can easily keep the print head moisture for 2---3months as long as there remains ink in the ink tank.



Machine configuration
X axis guide 5m rails(5 lead rails, each 1meter long, each foldable 22cm width only after be folded)
Y axis guide Standard model: 219cm(the other models: 239cm, 309cm), Y axis foldable, 1.4m in height after folded
Z axis guide 15cm
Display screen 7’’ LCD, touch screen
Spay distance 0.5-1cm
Print head International brand Epson brand, print head fodable after using, which can make print head moisture and advoid dust
X axis effective stroke 470cm
Y axis effective stroke Standard model: 180cm (the other models: 200cm, 270cm)
Z axis effective stroke 10cm
Synchro belt 1pc
Drive rack 5pcs
Net picture print height Standard 1.8m (can tailor-made other models: 2.0m, 2.7m), unlimited width
Machine weight 62kg
Lead rails weight 10kg*5pcs
Applied wall Inside & outside putty wall, latex wall, white wall, diatom mud wall, shell powder wall, wooden wall, paper, brick wall, canvas, etc.
Control configuration
Ink container capacity 400ml
Printhead cleaning Auto
Pump test Y
Stepper motor Y
Level Y
Painting mode Bi-directional
Ultrasonic sensors 2pcs
Performance configuration
Language switch Chinese, English

Auto skip blank,

Auto laser Positioning

Y
Intelligent lifting Support
Ink supply mode Negative pressure auto ink supply
Color matching treatment Auto
Ink use Water based ink
Surface treatment Water based varnish
Integrated voltage stabilizer Y
Ink Heating Y
Software Professional Printer Maintop Software, ZKMC output software
Computer system Windows XP, win7, win8, win10
Remarks The above data for reference only, may change due to continuous product/model upgrading.









LCD Touch Screen Wallpen Wall Printer Vertical Machine 0

LCD Touch Screen Wallpen Wall Printer Vertical Machine 1

LCD Touch Screen Wallpen Wall Printer Vertical Machine 2

LCD Touch Screen Wallpen Wall Printer Vertical Machine 3LCD Touch Screen Wallpen Wall Printer Vertical Machine 4

LCD Touch Screen Wallpen Wall Printer Vertical Machine 5LCD Touch Screen Wallpen Wall Printer Vertical Machine 6
LCD Touch Screen Wallpen Wall Printer Vertical Machine 7

LCD Touch Screen Wallpen Wall Printer Vertical Machine 8LCD Touch Screen Wallpen Wall Printer Vertical Machine 9



Q&A

Q1. What kind of ink does our machine use?

A: Special customized water based ink: CMYK 4 colors, 1 bottle/color/500ml.

Our machine is applied both indoor and outdoor wall decor, the eco friendly ink has no harm to health. It meets the public requirements for health care.

Q2. What is the difference between vertical machine and horizontal machine?

A: Vertical machine can print any width photo; while the horizontal machine can only print 1.8m*1.7m



Q3 What kind of surface your machine can print?

A: it can be widely used for painting on many kinds of vertical surfaces, professional in putty powder wall, diatom mud wall, latex paint wall, shell powder wall, chemical fiber canvas, wallpaper,wood, metal, ceramics, rice paper, etc.





Q4: How shall we assemble the machine?

A: Customer shall assemble the machine based on our video and operation manual provided. It’s easy, usually take about 15 minutes after customer becoming familiar with our machine.



Q5: How shall we operate the machine? Is training necessary?

A: The operation of the machine is easy to learn. We will provide operation manual with pictures and related videos to customer. Additionally, we’ll provide online training while needed. So, our customers could master our machine operation within within 1---3hours. Customer can also come to our workshop to get training.



Q6: What are the after sales service?

A: Our machine has 1 year warranty (ink and printhead excluded) if not artificial damaged. After the warranty, we still provide lifetime technical support and service.



Q7: What’s the delivery time?

A: About 5-10 working days after receive the payment.
