| Place of Origin: | Beijing, China |
| Brand Name: | Zhongkemeichuang |
| Certification: | CE for machine, RoHS for ink |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 plywood box |
| Delivery Time: | 5-10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets/month |
| Name: | Zkmc Automatic Picture Ceramic Tiles Painting 3d Wall Printer Machine | X Axis Effective Stroke: | 470cm |
|---|---|---|---|
| Y Axis Effective Stroke: | Standard Model: 170cm | Z Axis Effective Stroke: | 10cm |
| 10cm: | 5m Rail | Synchro Belt: | 1pcs |
| High Light: | Movable Wall 3d Printing Machine,Wall 3d Printing Machine Movable,bidirectional wallpen machine |
||

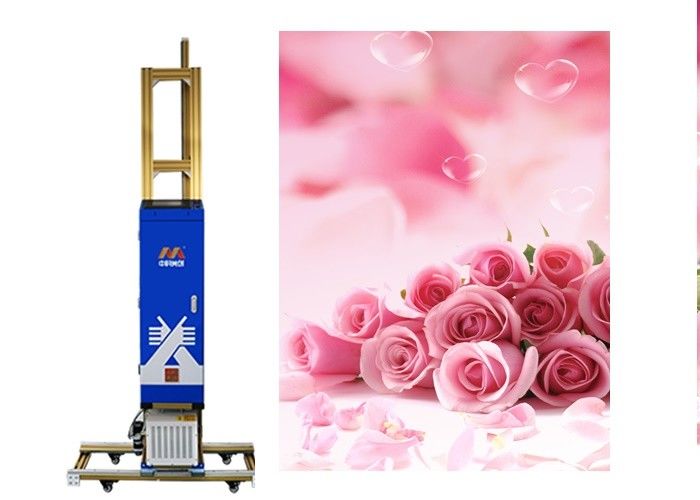

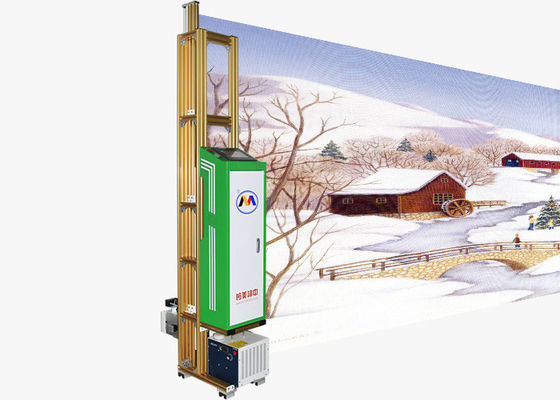

Zkmc Automatic Picture Ceramic Tiles Painting 3d Wall Printer Machine
Features
1. ZKMC wall printer robot has good compatibility and widely use. It can print any pictures on various materials.
2. The printer is faster and lower cost compared to traditional manual mural drawing.
3. Auto color matching.
4. Full color image can complete at once.
5. You can master all of skills within 1 or 2 days. No need any professional background.
6. Easy operation and maintenance.
7. High precision and perfect printing: the printer use special UV ink shows the image very lifelike.
8. ZKMC wall printer robot uses closed and continuous ink system. You can add the ink conveniently. This design can
avoid the dust into the system and can protect the ink of ejecting head flow fluency to minimize the print cost.
| Basic parameters | |
| Data transmission mode | USB |
| L*W*H (main body from ground) | 70*31*239cm |
| Printhead | Auto cleaning |
| Ink consumption | 8-12ml/m2 (less than USD1/m2) |
| Ink base color | CMYK, customzied UV ink |
| Painting precision | From 720DPI, upto 2880DPI |
| Painting direction | Vertical |
| Painting speed | Multispeed adjustable, ~1-8m2/h |
| Voltage/power | 90-246V/380W,47-63HZ |
| Noise | Standy<20dBA, painting <50dBA |
| Storage/Operation | -10℃-35℃(59°F-95°F) |
| 10%-70% relative humidity, in non-condensation state | |
| Surface tracing | Hyperbolic banner sensors, two-way induction up and down |
| Machine configuration | |
| X axis guide | 5m rails |
| Y axis guide | 219cm |
| Z axis guide | 14cm |
| Display screen | 7’’ LCD |
| Spay distance | 0.5-1cm |
| Net picture print height | 1.7m, unlimited width |
| Machine weight | 71kg |
| Lead rails weight | 10kg*5pcs |
| Applied wall | Inside & outside putty wall, latex wall, white wall, diatom mud wall, shell powder wall, wooden wall, paper, brick wall, canvas, etc. |
| Control configuration | |
| Ink container capacity | 400ml |
| Printhead cleaning | Auto |
| Pump test | Y |
| Z-Axis Automation | Y |
| Level | Y |
| Ultrasonic sensors | 2pcs |
| Performance configuration | |
| Language | English |
| Painting mode | Bidirectional |
| Auto blank skip | Y |
| Ink supply mode | Negative pressure auto ink supply |
| Color matching treatment | Auto |
| Integrated voltage stabilizer | Y |
| Ink Heating | Y |
| Laser light | Y |
| Painting Media | All planar materials |
| Software | Professional Printer Maintop Software, ZKMC output software |
| Computer system | Windows XP, win7, win8, win10 |
ZKMC wall printer robot is not only successful sales in China, and have been exported to worldwide, including: Israel, Swiss, Sweden, Romanica, Russia, Egypt, South Africa and so on. We have the best supply chain in China and parts manufacturers, and a solid record of quality and innovation.
FAQ
Q: How is your warranty?
A: 1 year warranty for non-artificial damaged parts (ink and printhead excluded). During warranty period, users send us back the problematic part and we provide the new one for replacement.
Q: How is your technical support?
A: Our English-speaking after sales staff is available online via email and WeChat, WhatsApp, etc. Also, we can remote control your machine via TeamViewer to solve some issues.
Contact: Teresa Wu
In charge of foreign trade
Telegram/WhatsApp/WeChat/Mobile: +8613011010380
Email: wallprinter@foxmail.com
Contact Person: Teresa Wu
Tel: +8613011010380
