3d Intelligent Vertical Operated Wall Printing Machine

3d Intelligent Vertical Operated Wall Printing Machine

3d Intelligent Vertical Operated Wall Printing Machine
3d Intelligent Vertical Operated Wall Printing Machine
3d Intelligent Vertical Operated Wall Printing Machine
Product Details:
Place of Origin: Beijing, China
Brand Name: Zhongkemeichuang
Certification: CE for machine, RoHS for ink
Model Number: ZK-Q7PLUS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: 1 plywood box
Delivery Time: 5-10 work days
Payment Terms: T/T
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Name: Zkmc Automatic 3d Intelligent Vertical Operated Wall Printing Machine Applicable Industries: Interior And Exterior Vertical Wall Decorations
Resolution: 720*720, 720*1080, 720*1440...720*2880dpi Printing Speed: About 1-7 Square Meters Every Hour
Weight: 62kg Usage: Vertical Wall Printing Decorations
High Light:

3d Vertical Operated Wall Printing Machine

,

3d Intelligent Wall Printing Machine

,

bidirectional vertical printer wall


Zkmc Automatic 3d Intelligent Vertical Operated Wall Printing Machine

ZKMC vertical operated wall printing machine with intelligent operation. Buyers could master its operation easily in about 2 hours, no painting skills and background needed. Customers'd use professional ZKMC output software for intelligent automatic picture painting, no need large project painting team like before.


Basic parameters
Data transmission mode USB
L*W*H (main body from ground) Standard model: 70*31*239cm (the other models: 259cm, 329cm)
Printhead Auto cleaning
Ink consumption 8-12ml/m2 (less than USD1/m2)
Ink base color Dual 4 colors (CMYK, CMYK), use special water based ink
Painting precision From 720DPI, upto 2880DPI
Painting direction Vertical
Painting speed Multispeed adjustable, ~1-7m2/h
Voltage/power 90-246V/380W,47-63HZ
Noise Standy<20dBA, painting <50dBA
Storage/Operation -10℃-35℃(59°F-95°F)
10%-70% relative humidity, in non-condensation state
Surface tracing Hyperbolic banner sensors, two-way induction up and down
Machine configuration
X axis guide 5m rails
Y axis guide Standard model: 219cm (other models: 239cm, 309cm)
Z axis guide 15cm
Display screen 4.3’’ LCD, touch screen
Spay distance 0.5-1cm
X axis effective stroke 470cm
Y axis effective stroke Standard model: 180cm (other models: 200cm, 270cm)
Z axis effective stroke 10cm
Synchro belt 1pc
Drive rack 5pcs
Net picture print height Standard 1.8m (other models: 2.0m, 2.7m), unlimited width
Machine weight 62kg
Lead rails weight 10kg/piece*5pcs, total 50kg
Applied wall Inside & outside putty wall, latex wall, white wall, diatom mud wall, shell powder wall, paper, brick wall, normal white wall, canvas, etc.
Control configuration
Ink container capacity 400ml
Printhead cleaning Auto
Pump test Y
Stepper motor Y
Level Y
Painting mode Bi-directional
Ultrasonic sensors 2pcs
Performance configuration
Language English
Auto blank skip N
Ink supply mode Negative pressure auto ink supply
Color matching treatment Auto
Ink use Special water based ink
Surface treatment after printing Water based varnish
Integrated voltage stabilizer Y
Ink Heating Y
Software Professional Printer Maintop Software, ZKMC output software
Computer system Windows XP, win7, win8, win10
Packing 1 plywood packing for standard model of machine, machine and inks in 1 box, total gross weight ~220kg, box dimension ~237x81x68cm
Remarks The above data for reference only, may change due to continuous product/model upgrading.


Beijing Zhongkemeichuang Science And Technology Ltd. is a new type of enterprise in the field of wall printing machine research and development and manufacturing, over the years has always adhered to the market demand-oriented, innovation-led, with excellent scientific research results to win the recognition of our customers.

ZKMC recognized that today's wall mural painting construction market demand is growing, but there are still many problems in the construction process and quality effect, customer demand is often difficult to achieve. To this end, ZKMC exclusive research and development launched a series of wall printing machine equipment, successfully solved the technical problems of the wall mural painting market.

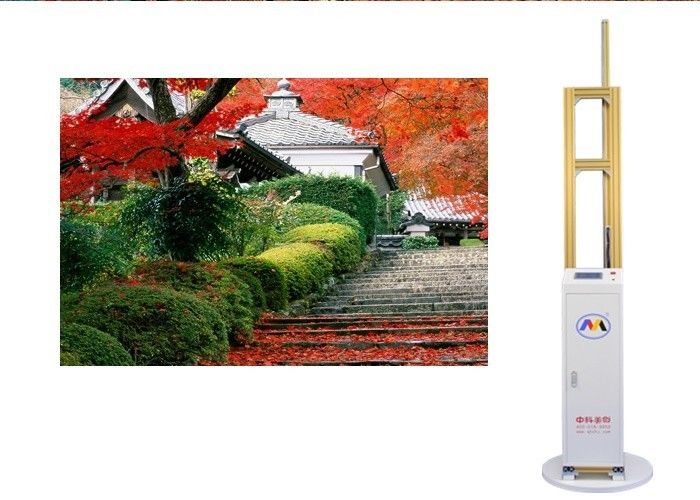

3d Intelligent Vertical Operated Wall Printing Machine 0

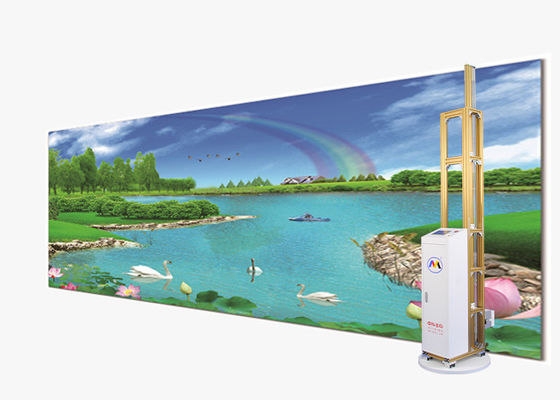

3d Intelligent Vertical Operated Wall Printing Machine 13d Intelligent Vertical Operated Wall Printing Machine 23d Intelligent Vertical Operated Wall Printing Machine 33d Intelligent Vertical Operated Wall Printing Machine 4
