Place of Origin: | Beijing, China |
Brand Name: | Zhongkemeichuang |
Certification: | CE for machine, RoHS for ink |
Model Number: | ZK-Q7PLUS |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiable |
Packaging Details: | 1 plywood box |
Delivery Time: | 5-10 work days |
Payment Terms: | T/T |
Supply Ability: | 100 sets/month |
Name: | 4.3'' LCD 720x2880 Dpi Fully Automatic Vertical Wall Printer For Outdoor Print | Automatic Grade: | Automatic |
---|---|---|---|
Voltage: | 47-63HZ | Painting Speed: | Three-speed Adjustable |
Color Matching: | Auto | Painting Resolution: | 720DPI, Upto 2880DPI |
High Light: | 720x2880 Vertical Wall Printer,4.3'' LCD Vertical Wall Printer,720DPI Vertical Wall Printer |

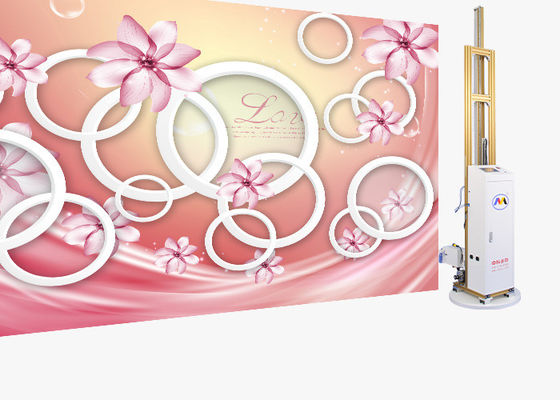

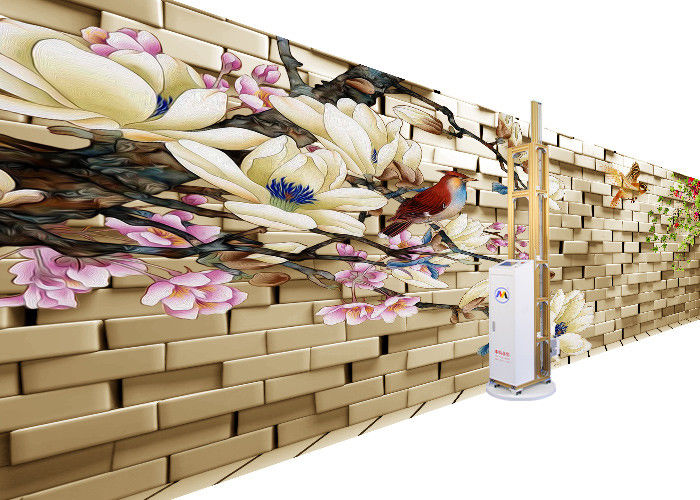

4.3'' LCD 720x2880 Dpi Fully Automatic Vertical Wall Printer For Outdoor Print
The vertical wall priner launched by ZKMC, has original integrated circuit chips, integrated voltage regulator, unique ink heating program, two ultrasonic sensors, encoded motor, all those improvements make our printer more stable and high efficiency.
Basic parameters | |
Data transmission mode | USB |
L*W*H (main body from ground) | Standard model: 70*31*239cm (the other models: 259cm, 329cm) |
Printhead | Auto cleaning |
Ink consumption | 8-12ml/m2 (less than USD1/m2) |
Ink base color | Dual 4 colors (CMYK, CMYK), use special water based ink |
Painting precision | From 720DPI, upto 2880DPI |
Painting direction | Vertical |
Painting speed | Multispeed adjustable, ~1-7m2/h |
Voltage/power | 90-246V/380W,47-63HZ |
Noise | Standy<20dBA, painting <50dBA |
Storage/Operation | -10℃-35℃(59°F-95°F) |
10%-70% relative humidity, in non-condensation state | |
Surface tracing | Hyperbolic banner sensors, two-way induction up and down |
Machine configuration | |
X axis guide | 5m rails |
Y axis guide | Standard model: 219cm (other models: 239cm, 309cm) |
Z axis guide | 15cm |
Display screen | 4.3’’ LCD, touch screen |
Spay distance | 0.5-1cm |
X axis effective stroke | 470cm |
Y axis effective stroke | Standard model: 180cm (other models: 200cm, 270cm) |
Z axis effective stroke | 10cm |
Synchro belt | 1pc |
Drive rack | 5pcs |
Net picture print height | Standard 1.8m (other models: 2.0m, 2.7m), unlimited width |
Machine weight | 62kg |
Lead rails weight | 10kg/piece*5pcs, total 50kg |
Applied wall | Inside & outside putty wall, latex wall, white wall, diatom mud wall, shell powder wall, paper, brick wall, normal white wall, canvas, etc. |
Control configuration | |
Ink container capacity | 400ml |
Printhead cleaning | Auto |
Pump test | Y |
Stepper motor | Y |
Level | Y |
Painting mode | Bi-directional |
Ultrasonic sensors | 2pcs |
Performance configuration | |
Language | English |
Auto blank skip | N |
Ink supply mode | Negative pressure auto ink supply |
Color matching treatment | Auto |
Ink use | Special water based ink |
Surface treatment after printing | Water based varnish |
Integrated voltage stabilizer | Y |
Ink Heating | Y |
Software | Professional Printer Maintop Software, ZKMC output software |
Computer system | Windows XP, win7, win8, win10 |
Packing | 1 plywood packing for standard model of machine, machine and inks in 1 box, total gross weight ~220kg, box dimension ~237x81x68cm |
Remarks | The above data for reference only, may change due to continuous product/model upgrading. |
Machine advantages for you choosing us:
- Wide range of picture materials
- Broad market outlook and applications
- Unique, novelty, individuality
- Stable, high efficiency, low cost
- Average cost is lessen than USD 1 for per m2 painting, multispeed adjustable.
- Intelligent lift platform
- High resolution up to 720x2880 dpi
- One year warranty if not artificial damaged and lifetime maintenance
- CE for machine, RoHS for ink
FAQ
1. What type of files can I print with?
Support JPG, TIFF.
2. What is the print height?
The picture print height is 180-270cm based on our machine sizes you ordered, no width limit.
3. Durability of the ink – is it for interior or exterior applications?
It’s indoor can be kept for ~10 years without fading, and the outdoor can be kept for ~5 years without fading.
4. What materials can I print on?
Putty wall, latex paint wall, brick wall, diatom mud wall, shell powder wall, paper, etc.
ZKMC UV-wall printer can also print on non-absorbent surfaces such as: glass, ceramic tiles, metal.
