| Place of Origin: | Beijing, China |
| Brand Name: | Zhongkemeichuang |
| Certification: | CE for machine, RoHS for ink |
| Model Number: | ZK-Q8 Foldable |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 plywood box |
| Supply Ability: | 100 sets/month |
| Name: | ZKMC 3d 4d Printhead Rotatable For Printhead Saving Lead Rails Foldable Vertical Wall Printer | Printhead: | Foldable, Printhead Can Be Folded Down To Maintain More Moisture |
|---|---|---|---|
| Vertical Rail: | Foldable, Machine 1.4m In Height When Folded | Horizonal Rail: | Foldable, Lead Rails Width Only 24cm When Folded |
| Auto Skip Blank: | Y | Auto Laser Positioning: | Y |
| Screen: | 7" LCD Big Touch Screen | Resolution: | 720--2880dpi |
| LWH: | 70*31*140cm | Ink Base Color: | CMYK,Special Waterbased Ink |
| High Light: | 3d wall printer robot,4d wall printer machine,lcd wall painting printer machine |
||

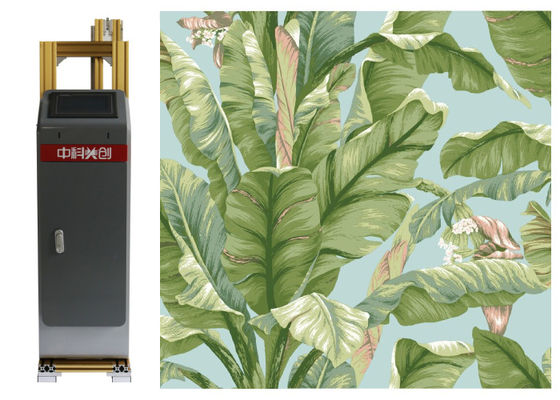

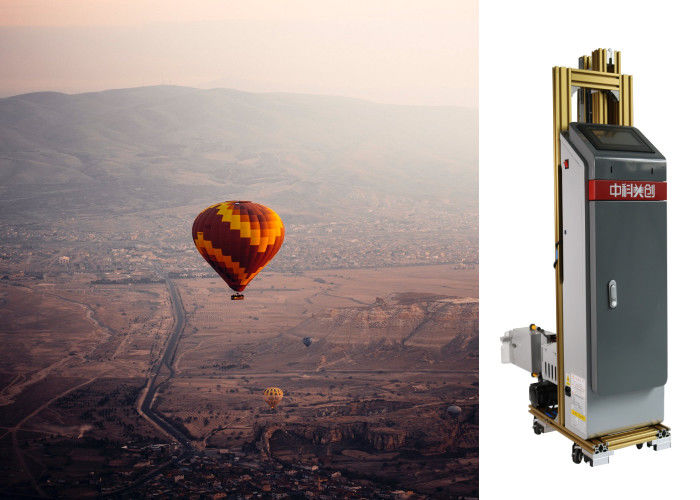

ZKMC 3d 4d Printhead Rotatable for Printhead Saving Lead rails Foldable Vertical Wall Printer
According to the feedback of our potential buyers, this year we publicized foldable wall printer, it took our R&D department staff 8 months to upgrade our machines into this new function.
The wall painting machine is easy to travel, can be easily put into a car or an elevator. why? Because, after folded the machine only 1.4m in height. The land rails is foldable, after folded, each rail width only 24cm, will save space and easy to put into your car. There is no need to buy a van to transfer this machine.
After using, the printhead can be rotatated its direction to the ground, as long as there is ink left, the printhead can maintain moisture, moisture is important for printhead longlife.
| Machine configuration | |
| X axis guide | 5m rails(5 lead rails, each 1meter long, each foldable 22cm width only after be folded) |
| Y axis guide | Standard model: 219cm(the other models: 239cm, 309cm), Y axis foldable, 1.4m in height after folded |
| Z axis guide | 15cm |
| Display screen | 7’’ LCD, touch screen |
| Spay distance | 0.5-1cm |
| Print head | International brand Epson brand, print head fodable after using, which can make print head moisture and advoid dust |
| X axis effective stroke | 470cm |
| Y axis effective stroke | Standard model: 180cm (the other models: 200cm, 270cm) |
| Z axis effective stroke | 10cm |
| Synchro belt | 1pc |
| Drive rack | 5pcs |
| Net picture print height | Standard 1.8m (can tailor-made other models: 2.0m, 2.7m), unlimited width |
| Machine weight | 62kg |
| Lead rails weight | 10kg*5pcs |
| Applied wall | Inside & outside putty wall, latex wall, white wall, diatom mud wall, shell powder wall, wooden wall, paper, brick wall, canvas, etc. |
| Control configuration | |
| Ink container capacity | 400ml |
| Printhead cleaning | Auto |
| Pump test | Y |
| Stepper motor | Y |
| Level | Y |
| Painting mode | Bi-directional |
| Ultrasonic sensors | 2pcs |
| Performance configuration | |
| Language switch | Chinese, English |
|
Auto skip blank, Auto laser Positioning |
Y |
| Intelligent lifting | Support |
| Ink supply mode | Negative pressure auto ink supply |
| Color matching treatment | Auto |
| Ink use | Water based ink |
| Surface treatment | Water based varnish |
| Integrated voltage stabilizer | Y |
| Ink Heating | Y |
| Software | Professional Printer Maintop Software, ZKMC output software |
| Computer system | Windows XP, win7, win8, win10 |
| Remarks |
The above data for reference only, may change due to continuous product/model upgrading. |
Q&A
Q1. What kind of ink does our machine use?
A: Special customized water based ink: CMYK 4 colors, 1 bottle/color/500ml.
Our machine is applied both indoor and outdoor wall decor, the eco friendly ink has no harm to health. It meets the public requirements for health care.
Q2. What is the difference between vertical machine and horizontal machine?
A:Vertical machine can print any width photo; while the horizontal machine can only print 1.8m*1.7m
Q3 What kind of surface your machine can print?
A: it can be widely used for painting on many kinds of vertical surfaces, professional in putty powder wall, diatom mud wall, latex paint wall, shell powder wall, chemical fiber canvas, wallpaper,wood, metal, ceramics, rice paper, etc.
Q4: How shall we assemble the machine?
A: Customer shall assemble the machine based on our video and operation manual provided. It’s easy, usually take about 15 minutes after customer becoming familiar with our machine.
Q5: How shall we operate the machine? Is training necessary?
A: The operation of the machine is easy to learn. We will provide operation manual with pictures and related videos to customer. Additionally, we’ll provide online training while needed. So, our customers could master our machine operation within within 1---3hours. Customer can also come to our workshop to get training.
Q6: What are the after sales service?
A: Our machine has 1 year warranty (ink and printhead excluded) if not artificial damaged. After the warranty, we still provide lifetime technical support and service.
Q7: What’s the delivery time?
A: About 5-10 working days after receive the payment.
