| Place of Origin: | Beijing, China |
| Brand Name: | Zhongkemeichuang |
| Certification: | RoHS for ink |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 plywood box |
| Supply Ability: | 100 sets/month |
| Name: | 1.4m Folding Machine Height 2880dpi Smart Foldable Printhead Foldable Rails 3d Wall Mural Printing Machine | Ultra Sonic Sensors: | 2pcs, Surfaces Tracing Automaticaly For Prinhtead Protection |
|---|---|---|---|
| Printhead: | Foldable, Printhead Can Be Folded Down To Maintain More Moisture | Ink: | Special Uv Ink, CMYK 4 Colors For 1-printhead |
| Horizonal Rail: | Foldable, Lead Rails Width Only 24cm When Folded | Noise: | Standy<20dBA, Painting <50dBA |
| High Light: | 1.4m height uv wall printer,foldable rails uv wall printer,usb 3d wall printer |
||

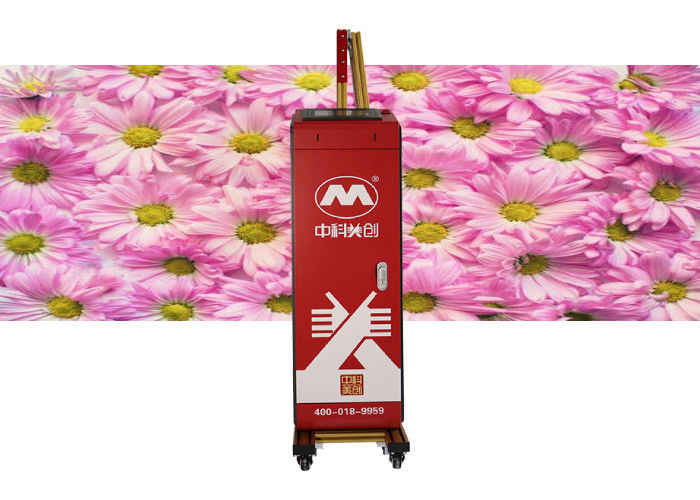

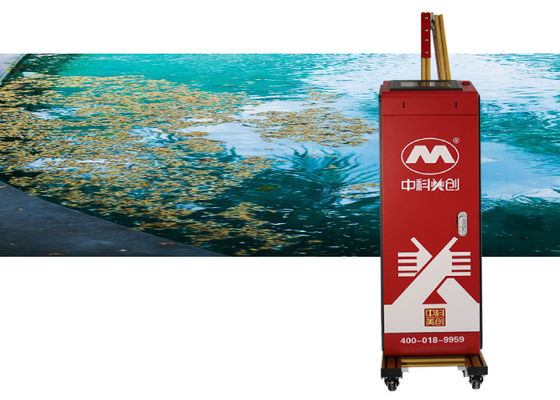

1.4m Folding Machine Height 2880dpi Smart Foldable Printhead Foldable Rails 3d Silent Wall Mural Printing Machine
This ZKMC new type of wall painting machine is very convenient to be moved from project to project. It'd be easily put into the car trunk due to only 1.4m height after folding. Its auto operation, does not require the operator to any painting technical experience. Our buyer could master it with several hous via our online video training beside our operation related videos and opeationa manual provided.
| Machine configuration | |
| X axis guide | 5m rails (5 lead rails, each 1m long, each foldable 24cm width only after be folded) |
| Y axis guide | Standard model: 219cm (height customizable), Y axis foldable, 1.4m in height after folded |
| Z axis guide | 15cm |
| Display screen | 7’’ LCD, touch screen |
| Spay distance | 0.5-1cm |
| Printhead | Printhead fodable after using (for 1-printhead machine), which can make print head moisture and advoid dust |
| X axis effective stroke | 470cm |
| Y axis effective stroke | Standard model: 160cm |
| Z axis effective stroke | 10cm |
| Synchro belt | 1pc |
| Drive rack | 5pcs |
| Net picture print height | Standard 1.6m |
| Lead rails weight | 10kg*5pcs |
| Applied wall | PVC, metal, glass, ceramic tiles, inside & outside putty wall, latex wall, white wall, diatom mud wall, shell powder wall, wooden wall, paper, brick wall, canvas, etc. |
| Control configuration | |
| Ink container capacity | 400ml |
| Printhead cleaning | Auto |
| Pump test | Y |
| Stepper motor | Y |
| Level | Y |
| Painting mode | Bi-directional |
| Ultrasonic sensors | 2pcs |
| Performance configuration | |
| Language | English |
|
Auto skip blank, Auto laser Positioning |
Y |
| Intelligent lifting | Support |
| Ink supply mode | Negative pressure auto ink supply |
| Color matching treatment | Auto |
| Ink use | Special uv ink |
| Integrated voltage stabilizer | Y |
| Ink Heating | Y |
| Software | Professional Printer Maintop Software, ZKMC output software |
| Computer system | Windows XP, win7, win8, win10 |
| Remarks | The above data for reference only, may change due to continuous product/model upgrading. |
Features
1. The pattern of painting is automatically drawn under computer control, so there is no need to worry about mistakes, the pattern effect is guaranteed.
2. Compared with lacquer painting, our machine is more efficient, and it does not need many personnel, one person one machine can work, which saves a lot of costs for investors.
3. It s a one-time investment project, only need entrepreneurs to invest a machine, after that, can make money all the time with this machine. It is low risk, suitable for entrepreneurs.
ZKMC would be your lifetime reliable partner!
Q&A
Q1. What is the difference between vertical machine and horizontal machine?
A: Vertical machine can print any width photo; while the horizontal machine can only print 1.8m*1.7m
Q2: How shall we assemble the machine?
A: Customer shall assemble the machine based on our video and operation manual provided. It’s easy, usually take about 15 minutes after customer becoming familiar with our machine.
Q3: How shall we operate the machine? Is training necessary?
A: The operation of the machine is easy to learn. We will provide operation manual with pictures and related videos to customer. Additionally, we’ll provide online training while needed. So, our customers could master our machine operation within within 1---3hours. Customer can also come to our workshop to get training.
Q4: What are the after sales service?
A: Our machine has 1 year warranty (ink and printhead excluded) if not artificial damaged. After the warranty, we still provide lifetime technical support and service.
Q5: What’s the delivery time?
A: About 5-10 working days after receive the payment.
