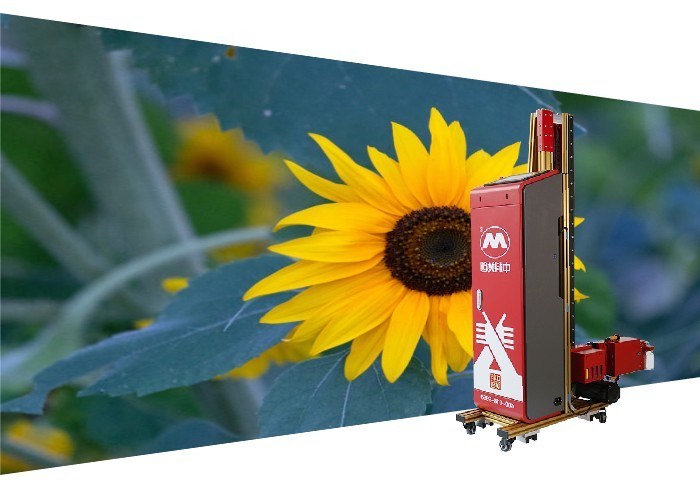

Intelligent Auto Skip Blank 3d 4d Wall Mural Printing Machine Foldable Printhead Foldable Rails

Intelligent Auto Skip Blank 3d 4d Wall Mural Printing Machine Foldable Printhead Foldable Rails

  • Intelligent Auto Skip Blank 3d 4d Wall Mural Printing Machine Foldable Printhead Foldable Rails
  • Intelligent Auto Skip Blank 3d 4d Wall Mural Printing Machine Foldable Printhead Foldable Rails
Intelligent Auto Skip Blank 3d 4d Wall Mural Printing Machine Foldable Printhead Foldable Rails
Product Details:
Place of Origin: Beijing, China
Brand Name: Zhongkemeichuang
Certification: CE for machine, RoHS for ink
Model Number: ZK-Q8 Foldable
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: 1 plywood box
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Name: Intelligent Foldable Printhead Foldable Rails Auto Skip Blank 3D4D Vertical Wall Printer Printhead: Foldable, Printhead Can Be Folded Down To Maintain More Moisture
Vertical Rail: Foldable, Machine 1.4m In Height When Folded Horizonal Rail: Foldable, Lead Rails Width Only 22cm When Folded
Memory: Either PC Or Machine Powerful Off, Machine Can Continue Print When Power On Auto Skip Blank: Y
Auto Laser Positioning: Y Screen: 7" LCD Big Touch Screen
High Light:

4d wall mural printing machine

,

silent wall mural printing machine

,

silent wall printer 3d



Intelligent Foldable Printhead Foldable rails auto skip blank 3D4D Vertical Wall Printer





Advantages as follows



ü The wall painting machine is easy to travel, can be easily put into a car. Only 1.4m in height. It is intelligent auto operation,it does not require the operator to have much high technical experience, as long as the machine operator get simple guidance via video showing or ZKMC machine booklet, investors can get started.



ü The pattern of painting is automatically drawn under computer control, so there is no need to worry about mistakes, the pattern effect is guaranteed.



ü The research and development of the ZKMC wall painting machine follows the principle of environmental protection and odorless.Compared with lacquer painting, our machine is more efficient and eco friendly, and it does not need many personnel, one person one machine can work, which saves a lot of costs for investors.



ü It s a one-time investment project, only need entrepreneurs to invest a machine, after that, can make money all the time with this machine. It is low risk, suitable for green-hand investors.



ü To fully ensure the interests of the investors, in each specific town, we normally only choose one investor to own our machines. All the wealth are specially set for this investor.





ZKMC will be your lifetime reliable partner!



Machine configuration
X axis guide 5m rails(5 lead rails, each 1meter long, each foldable 22cm width only after be folded)
Y axis guide Standard model: 219cm(the other models: 239cm, 309cm), Y axis foldable, 1.4m in height after folded
Z axis guide 15cm
Display screen 7’’ LCD, touch screen
Spay distance 0.5-1cm
Print head International brand Epson brand, print head fodable after using, which can make print head moisture and advoid dust
X axis effective stroke 470cm
Y axis effective stroke Standard model: 180cm (the other models: 200cm, 270cm)
Z axis effective stroke 10cm
Synchro belt 1pc
Drive rack 5pcs
Net picture print height Standard 1.8m (can tailor-made other models: 2.0m, 2.7m), unlimited width
Machine weight 62kg
Lead rails weight 10kg*5pcs
Applied wall Inside & outside putty wall, latex wall, white wall, diatom mud wall, shell powder wall, wooden wall, paper, brick wall, canvas, etc.
Control configuration
Ink container capacity 400ml
Printhead cleaning Auto
Pump test Y
Stepper motor Y
Level Y
Painting mode Bi-directional
Ultrasonic sensors 2pcs
Performance configuration
Language switch Chinese, English

Auto skip blank,

Auto laser Positioning

Y
Intelligent lifting Support
Ink supply mode Negative pressure auto ink supply
Color matching treatment Auto
Ink use Water based ink
Surface treatment Water based varnish
Integrated voltage stabilizer Y
Ink Heating Y
Software Professional Printer Maintop Software, ZKMC output software
Computer system Windows XP, win7, win8, win10
Remarks The above data for reference only, may change due to continuous product/model upgrading.





Intelligent Auto Skip Blank 3d 4d Wall Mural Printing Machine Foldable Printhead Foldable Rails 0

Intelligent Auto Skip Blank 3d 4d Wall Mural Printing Machine Foldable Printhead Foldable Rails 1

Intelligent Auto Skip Blank 3d 4d Wall Mural Printing Machine Foldable Printhead Foldable Rails 2





Q&A

Q1. What kind of ink does our machine use?

A: Special customized water based ink: CMYK 4 colors, 1 bottle/color/500ml.

Our machine is applied both indoor and outdoor wall decor, the eco friendly ink has no harm to health. It meets the public requirements for health care.

Q2. What is the difference between vertical machine and horizontal machine?

A: Vertical machine can print any width photo; while the horizontal machine can only print 1.8m*1.7m



Q3 What kind of surface your machine can print?

A: it can be widely used for painting on many kinds of vertical surfaces, professional in putty powder wall, diatom mud wall, latex paint wall, shell powder wall, chemical fiber canvas, wallpaper,wood, metal, ceramics, rice paper, etc.





Q4: How shall we assemble the machine?

A: Customer shall assemble the machine based on our video and operation manual provided. It’s easy, usually take about 15 minutes after customer becoming familiar with our machine.



Q5: How shall we operate the machine? Is training necessary?

A: The operation of the machine is easy to learn. We will provide operation manual with pictures and related videos to customer. Additionally, we’ll provide online training while needed. So, our customers could master our machine operation within within 1---3hours. Customer can also come to our workshop to get training.



Q6: What are the after sales service?

A: Our machine has 1 year warranty (ink and printhead excluded) if not artificial damaged. After the warranty, we still provide lifetime technical support and service.



Q7: What’s the delivery time?

A: About 5-10 working days after receive the payment.
