Smart Lcd Touch Screen 3d 2880dpi Digital Wall Printer

Smart Lcd Touch Screen 3d 2880dpi Digital Wall Printer

  • Smart Lcd Touch Screen 3d 2880dpi Digital Wall Printer
  • Smart Lcd Touch Screen 3d 2880dpi Digital Wall Printer
Smart Lcd Touch Screen 3d 2880dpi Digital Wall Printer
Product Details:
Place of Origin: Beijing, China
Brand Name: Zhongkemeichuang
Certification: CE for machine, ROHs for ink
Model Number: ZK-Q7 plus
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: 1 plywood box
Supply Ability: 100sets/month
Contact Now
Detailed Product Description
Name: Smart LCD Touch Screen 3D Effect Auto Cleaning Inkjet Vertical Wall Printer 2880 Dpi Painting Speed: Speed Adjustable, 1-7㎡/h
Noise: Standy<20dBA, Painting <50dBA Painting Picture Net Height: 1.8m
Surface Treatment After Printing: Water Based Varnish Painting Precision: 720---2880dpi
Machine Weight: 62kg Software: Professional Printer Maintop Software, ZKMC Output Software
Color Matching Treatment: Auto
High Light:

2880dpi digital wall printer

,

lcd touch screen digital wall printer

,

direct wall printing machine 2880dpi

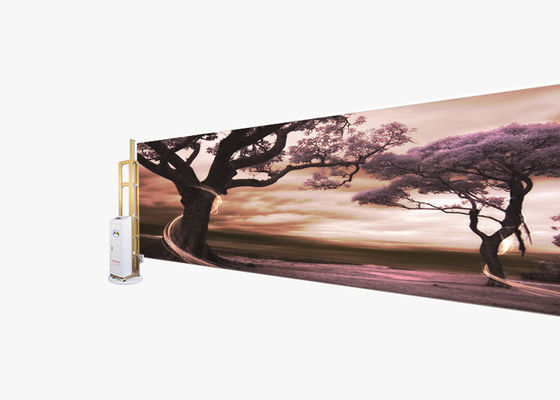

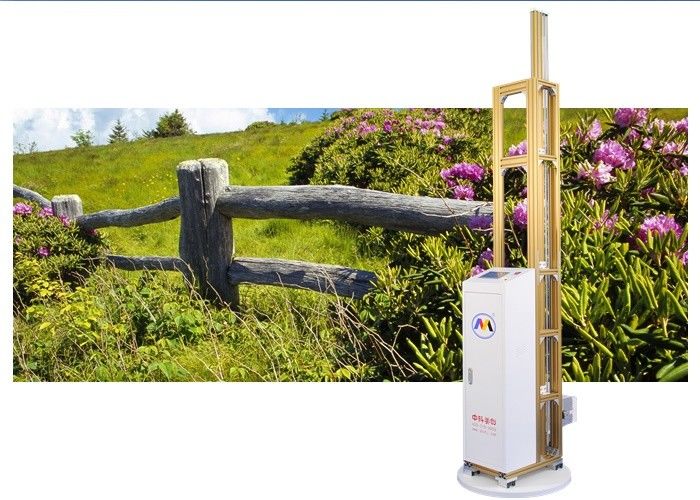

Smart LCD touch screen 3D effect auto cleaning Inkjet Vertical Wall Printer 2880 Dpi



ZKMC vertical wall printer ZK-Q7PLUS, is very popular. Why? Mainly because it's affordable price and stable machine performance for both indoor and outdoor mural printings, the machine quality is great and our after-services are warm heating and can bring you a lot of business chance and money.



The machine's equipped with 2 American banner ultrasonic sensors which can detect the wall flatness automatically. Accordingly, the printhead moves back and forth on the Z axis. Therefore, an appropriate distance from the wall and the printhead is kept, to effectively preventing printhead damage.



Basic parameters
Data transmission mode USB
L*W*H (main body from ground) Standard model: 70*31*239cm (the other models: 259cm, 329cm)
Printhead Auto cleaning
Ink consumption 8-12ml/m2 (less than USD1/m2)
Ink base color Dual 4 colors (CMYK, CMYK), use special water based ink
Painting precision From 720DPI, upto 2880DPI
Painting direction Vertical
Painting speed Multispeed adjustable, ~1-7m2/h
Voltage/power 90-246V/380W,47-63HZ
Noise Standy<20dBA, painting <50dBA
Storage/Operation -10-35℃(59°F-95°F)
10%-70% relative humidity, in non-condensation state
Surface tracing Hyperbolic banner sensors, two-way induction up and down
Machine configuration
X axis guide 5m rails
Y axis guide Standard model: 219cm (other models: 239cm, 309cm)
Z axis guide 15cm
Display screen 4.3’’ LCD, touch screen
Spay distance 0.5-1cm
X axis effective stroke 470cm
Y axis effective stroke Standard model: 180cm (other models: 200cm, 270cm)
Z axis effective stroke 10cm
Synchro belt 1pc
Drive rack 5pcs
Net picture print height Standard 1.8m (other models: 2.0m, 2.7m), unlimited width
Machine weight 62kg
Lead rails weight 10kg/piece*5pcs, total 50kg
Applied wall Inside & outside putty wall, latex wall, white wall, diatom mud wall, shell powder wall, paper, brick wall, normal white wall, canvas, etc.
Control configuration
Ink container capacity 400ml
Printhead cleaning Auto
Pump test Y
Stepper motor Y
Level Y
Painting mode Bi-directional
Ultrasonic sensors 2pcs
Performance configuration
Language English
Computer system Windows XP, win7, win8, win10
Packing 1 plywood packing for standard model of machine, machine and inks in 1 box, total gross weight ~220kg, box dimension ~237x81x68cm
Remarks The above data for reference only, may change due to continuous product/model upgrading.



ZKMC vertical wall printer advantages:



Customizable 2880dpi 1.8m Height Inkjet Wall Printing Machine 0Customizable 2880dpi 1.8m Height Inkjet Wall Printing Machine 1



Beijing Zhongkemeichuang (ZKMC) Science And Technology Ltd., established in 2013, is a high-tech company specializing in R & D, production, sales and after-sales service of intelligent wall printer machine. In order to meet the market demand, the scale of the brand is becoming larger and larger. We have sole agents in Middle East, Russia and Belarus, have set up offices in Changsha, Guiyang, Jinan. Zhongkemei is the founder of 3d colorful inkjet wall printer. This invention not only saves labor cost, but also breaks the limitation of hand drawing. Break through the technical problems at all levels, perfect response to curved wall, all kinds of weather, and other problems. Many traditional hand-painted masters are very much impressed by our wall printer. It was recommended as a potential investment project by CCTV, and was specially reported by CCTV financial channel. Our products are exported to Romania, Switzerland, Russia, Egypt, Israel, Canada, Sweden, Vietnam, and other countries. ZKMC wall printer quality has been well received by customers.



Customizable 2880dpi 1.8m Height Inkjet Wall Printing Machine 2

Customizable 2880dpi 1.8m Height Inkjet Wall Printing Machine 3

FAQ


1. What payment method are supported?
Preferred payment method is T/T.



2. What’s your delivery time?
We will arrange the delivery within 5~10 working days after receiving the payment.

3. Can we send our technician to your factory for training?
Yes, you are warmly welcome to visit us for free training.



4. Once there is something need to replace, what can I do?
We supply all the spare parts for the printer. We suggest that users order spare parts package for long time maintenance and fast replacement.

5. If I have some technical problem, how can you help us to solve it?
Detailed description, photos or video will help our technician analyze the issue and provide related solution accordingly.
