Multicolor Treatment Direct To Wall Printer With 4.3Inch Lcd

Multicolor Treatment Direct To Wall Printer With 4.3Inch Lcd

Multicolor Treatment Direct To Wall Printer With 4.3Inch Lcd
video
Multicolor Treatment Direct To Wall Printer With 4.3Inch Lcd
Product Details:
Place of Origin: Beijing, China
Brand Name: Zhongkemeichuang
Certification: CE for machine, RoHS for ink
Model Number: ZK-Q7PLUS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: 1 plywood box
Delivery Time: 5-10 work days
Payment Terms: T/T
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Name: 8 Strengths Automatic Multi Color Treatment Inkjet Direct To Wall Printer Applicable Industries: Office Buildings, Different Shops
Dimensions(l*w*h): 70*31*239cm, Or 259, 329mm Ink Color: C M Y K, Dual 4 Colors
Touch Screen: 4.3'' LCD Lead Rails: 1m/piece, Total 5 PCs
High Light:

4.3Inch Lcd Direct To Wall Printer

,

Multicolor Treatment Direct To Wall Printer

,

380W Direct To Wall Printer



8 Strengths Automatic Multi Color Treatment Inkjet Direct To Wall Printer



ZKMC direct to wall printer has one of the significant advantages: quick drawing - It only takes one-tenth of the time to draw by hand, twice as much as drawing manually. For example, hotels, restaurants and other commercial places, hand-drawn need a lot of time, pattern error is very troublesome, time cost is greater. But our direct to wall printer is just like printers, inkjet printers, cameras, do not limit any patterns, even printing errors can be quickly repeated, more time-saving.



Basic parameters
Data transmission mode USB
L*W*H (main body from ground) Standard model: 70*31*239cm (the other models: 259cm, 329cm)
Printhead Auto cleaning
Ink consumption 8-12ml/m2 (less than USD1/m2)
Ink base color Dual 4 colors (CMYK, CMYK), use special water based ink
Painting precision From 720DPI, upto 2880DPI
Painting direction Vertical
Painting speed Multispeed adjustable, ~1-7m2/h
Voltage/power 90-246V/380W,47-63HZ
Noise Standy<20dBA, painting <50dBA
Storage/Operation -10℃-35℃(59°F-95°F)
10%-70% relative humidity, in non-condensation state
Surface tracing Hyperbolic banner sensors, two-way induction up and down
Machine configuration
X axis guide 5m rails
Y axis guide Standard model: 219cm (other models: 239cm, 309cm)
Z axis guide 15cm
Display screen 4.3’’ LCD, touch screen
Spay distance 0.5-1cm
X axis effective stroke 470cm
Y axis effective stroke Standard model: 180cm (other models: 200cm, 270cm)
Z axis effective stroke 10cm
Synchro belt 1pc
Drive rack 5pcs
Net picture print height Standard 1.8m (other models: 2.0m, 2.7m), unlimited width
Machine weight 62kg
Lead rails weight 10kg/piece*5pcs, total 50kg
Applied wall Inside & outside putty wall, latex wall, white wall, diatom mud wall, shell powder wall, paper, brick wall, normal white wall, canvas, etc.
Control configuration
Ink container capacity 400ml
Printhead cleaning Auto
Pump test Y
Stepper motor Y
Level Y
Painting mode Bi-directional
Ultrasonic sensors 2pcs
Performance configuration
Language English
Auto blank skip N
Ink supply mode Negative pressure auto ink supply
Color matching treatment Auto
Ink use Special water based ink
Surface treatment after printing Water based varnish
Integrated voltage stabilizer Y
Ink Heating Y
Software Professional Printer Maintop Software, ZKMC output software
Computer system Windows XP, win7, win8, win10
Packing 1 plywood packing for standard model of machine, machine and inks in 1 box, total gross weight ~220kg, box dimension ~237x81x68cm
Remarks The above data for reference only, may change due to continuous product/model upgrading.

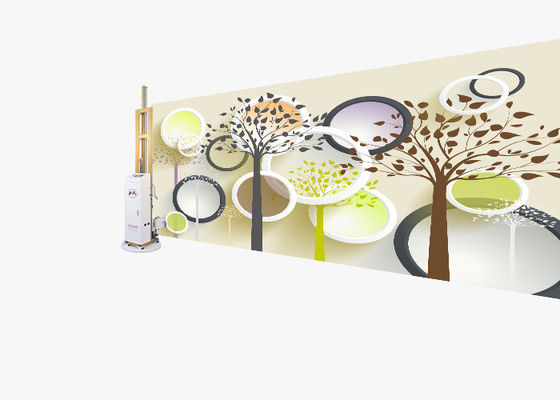

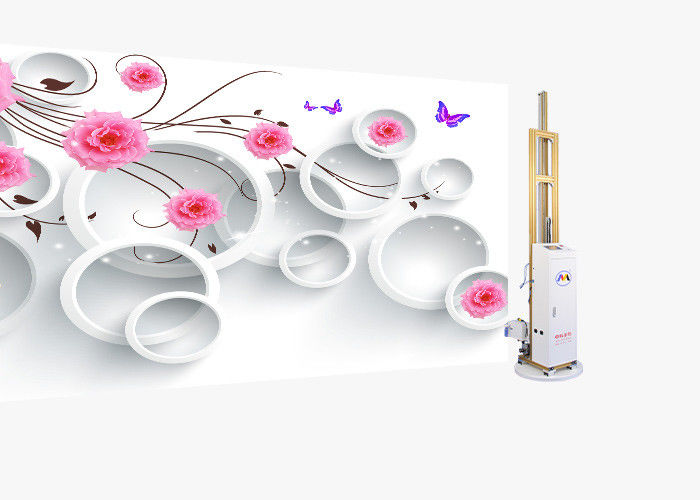

Multicolor Treatment Direct To Wall Printer With 4.3Inch Lcd 0
Multicolor Treatment Direct To Wall Printer With 4.3Inch Lcd 1
Multicolor Treatment Direct To Wall Printer With 4.3Inch Lcd 2
Multicolor Treatment Direct To Wall Printer With 4.3Inch Lcd 3
Multicolor Treatment Direct To Wall Printer With 4.3Inch Lcd 4

Supply Ability:
1200 sets/year for ZKMC Automatic Wall Inkjet Printer

Packaging & Delivery:
Packaging Details: 1 plywood packaging, box dimension (L*W*H): 237*81*68cm
Thick plywood case according to International Export Standard for ZKMC Automatic Wall Inkjet Printer.
ZKMC Automatic Wall Inkjet Printer is ready for delivery between 5-10 working days.

Port:
Tianjin Xingang, or any other sea ports or airports in China for shipping ZKMC Automatic Wall Inkjet Printer.
