| Place of Origin: | Beijing, China |
| Brand Name: | Zhongkemeichuang |
| Certification: | CE for machine, RoHS for ink |
| Model Number: | ZK-Q7PLUS |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 plywood box |
| Delivery Time: | 5-10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets/month |
| Name: | Accuracy Up To 2880dpi, Speed Up To 7m2/H Zkmc Automatic 3d Robot Wall Printer | Hyperbolic Banner Sensors: | Two-way Induction Up And Down For Surface Tracing |
|---|---|---|---|
| Operation: | -10℃-35℃（59°F-95°F） | Storage: | 10%-70% Relative Humidity, In Non-condensation State |
| Ink Used: | Special Water Based Ink, Customized Ink | Certificate: | CE For Machine, RoHS For Ink |
| High Light: | 3d Robot Wall Printer 2880dpi,Robot Wall Printer 7m2/H,wall printer robot 2880dpi |
||

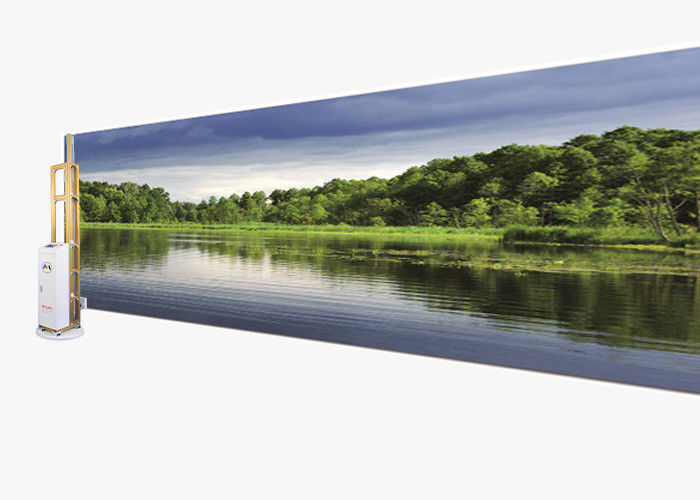

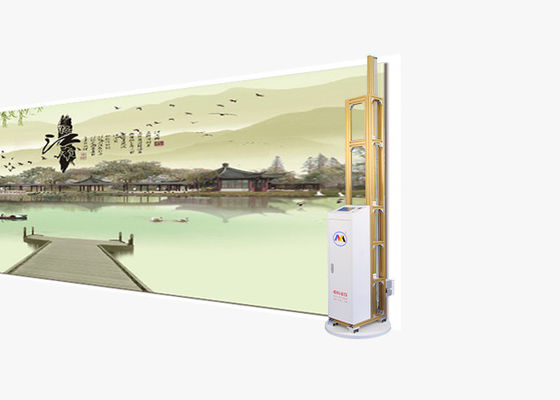

Accuracy Up To 2880dpi, Speed Up To 7m2/H Zkmc Automatic 3d Robot Wall Printer
ZKMC Robot Wall Printer is cost effective newly development model in 2018. uses American ultrasonic sensors for automatic surface tracking while two-way induction up and down, Results in printhead automatically move along the Z axis based on its detection of wall tilt results. Therefore, printhead damage rates decreased dramatically.
| Machine configuration | |
| X axis guide | 5m rails |
| Y axis guide | Standard model: 219cm (other models: 239cm, 309cm) |
| Z axis guide | 15cm |
| Display screen | 4.3’’ LCD, touch screen |
| Spay distance | 0.5-1cm |
| X axis effective stroke | 470cm |
| Y axis effective stroke | Standard model: 180cm (other models: 200cm, 270cm) |
| Z axis effective stroke | 10cm |
| Synchro belt | 1pc |
| Drive rack | 5pcs |
| Net picture print height | Standard 1.8m (other models: 2.0m, 2.7m), unlimited width |
| Machine weight | 62kg |
| Lead rails weight | 10kg/piece*5pcs, total 50kg |
| Applied wall | Inside & outside putty wall, latex wall, white wall, diatom mud wall, shell powder wall, paper, brick wall, normal white wall, canvas, etc. |
| Control configuration | |
| Ink container capacity | 400ml |
| Printhead cleaning | Auto |
| Pump test | Y |
| Stepper motor | Y |
| Level | Y |
| Painting mode | Bi-directional |
| Ultrasonic sensors | 2pcs |
| Performance configuration | |
| Language | English |
| Auto blank skip | N |
| Ink supply mode | Negative pressure auto ink supply |
| Color matching treatment | Auto |
| Ink use | Special water based ink |
| Surface treatment after printing | Water based varnish |
| Integrated voltage stabilizer | Y |
| Ink Heating | Y |
| Software | Professional Printer Maintop Software, ZKMC output software |
| Computer system | Windows XP, win7, win8, win10 |
| Packing | 1 plywood packing for standard model of machine, machine and inks in 1 box, total gross weight ~220kg, box dimension ~237x81x68cm |
| Remarks | The above data for reference only, may change due to continuous product/model upgrading. |
