| Place of Origin: | Beijing, China |
| Brand Name: | Zhongkemeichuang |
| Certification: | CE for machine, RoHS for ink |
| Model Number: | ZK-Q7PLUS |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 plywood box |
| Delivery Time: | 5-10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets/month |
| Name: | 720x2880dpi Direct Picture Painting Robot Zkmc Wall Inkjet Printer | Applicable Industries: | Gym, Outdoor Indoor Wall Decorations |
|---|---|---|---|
| Ink Type: | Pigment Ink | Warranty: | One Year |
| Printhead: | Micro Piezo Printhead | Color: | Multi Color Printing,4 Color(C/M/Y/K)5 Color(C/M/Y/K/W) |
| High Light: | 720x2880dpi Direct To Wall Printer,Direct To Wall Printer Micro Printhead |
||

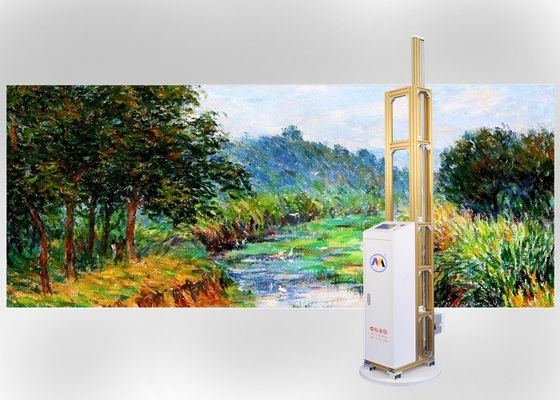

720x2880dpi Direct Picture Painting Robot Zkmc Wall Inkjet Printer
ZKMC wall inkjet printer is equipped with American ultrasonic sensors for detecting the wall tilt automatically, unique ink heating program which ensure its stable performance in cold weather, original integrated circuit chips, micro-piezoelectric printhead, etc. those improvement make our printer would get the best 3d printing effects. 5 pieces of lead rails which save space, make the transport and reconnect easily,
| Basic parameters | |
| Data transmission mode | USB |
| L*W*H (main body from ground) | Standard model: 70*31*239cm (the other models: 259cm, 329cm) |
| Printhead | Auto cleaning |
| Ink consumption | 8-12ml/m2 (less than USD1/m2) |
| Ink base color | Dual 4 colors (CMYK, CMYK), use special water based ink |
| Painting precision | From 720DPI, upto 2880DPI |
| Painting direction | Vertical |
| Painting speed | Multispeed adjustable, ~1-7m2/h |
| Voltage/power | 90-246V/380W,47-63HZ |
| Noise | Standy<20dBA, painting <50dBA |
| Storage/Operation | -10℃-35℃(59°F-95°F) |
| 10%-70% relative humidity, in non-condensation state | |
| Surface tracing | Hyperbolic banner sensors, two-way induction up and down |
| Machine configuration | |
| X axis guide | 5m rails |
| Y axis guide | Standard model: 219cm (other models: 239cm, 309cm) |
| Z axis guide | 15cm |
| Display screen | 4.3’’ LCD, touch screen |
| Spay distance | 0.5-1cm |
| X axis effective stroke | 470cm |
| Y axis effective stroke | Standard model: 180cm (other models: 200cm, 270cm) |
| Z axis effective stroke | 10cm |
| Synchro belt | 1pc |
| Drive rack | 5pcs |
| Net picture print height | Standard 1.8m (other models: 2.0m, 2.7m), unlimited width |
| Machine weight | 62kg |
| Lead rails weight | 10kg/piece*5pcs, total 50kg |
| Applied wall | Inside & outside putty wall, latex wall, white wall, diatom mud wall, shell powder wall, paper, brick wall, normal white wall, canvas, etc. |
| Control configuration | |
| Ink container capacity | 400ml |
| Printhead cleaning | Auto |
| Pump test | Y |
| Stepper motor | Y |
| Level | Y |
| Painting mode | Bi-directional |
| Ultrasonic sensors | 2pcs |
| Performance configuration | |
| Language | English |
| Auto blank skip | N |
| Ink supply mode | Negative pressure auto ink supply |
| Color matching treatment | Auto |
| Ink use | Special water based ink |
| Surface treatment after printing | Water based varnish |
| Integrated voltage stabilizer | Y |
| Ink Heating | Y |
| Software | Professional Printer Maintop Software, ZKMC output software |
| Computer system | Windows XP, win7, win8, win10 |
| Packing | 1 plywood packing for standard model of machine, machine and inks in 1 box, total gross weight ~220kg, box dimension ~237x81x68cm |
| Remarks | The above data for reference only, may change due to continuous product/model upgrading. |
Advantages
1. Our print inks have an amazing 3D effect and could achieve gold, silver and jade effects. No other additional ink is needed to have these effects.
2. All of our machines are equipped with 2 ultrasonic sensors that automatically sense the flatness of the wall. So, our machine can print high quality picture on slightly curved wall.
3. It takes about 15 minutes for machine assembling. Machine is 62kg. The weight of the 5 pieces (1m/piece) of rail is 50kg. One people could operate the machine easily.
