| Place of Origin: | Beijing, China |
| Brand Name: | Zhongkemeichuang |
| Certification: | CE for machine, RoHS for ink |
| Model Number: | ZK-Q7PLUS |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 plywood box |
| Delivery Time: | 5-10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets/month |
| Name: | Direct Wall Painting Multispeed Adjustable Vertical Wall Painting Machine | Voltage: | 47-63Hz |
|---|---|---|---|
| Ink Cost: | Less Than USD 1/m2 | Application: | Indoor Outdoor Advertisement |
| Color: | 4 Colors (CMYK) | Painting Speed: | ~1-7m2/h |
| High Light: | Wall Printer Machine Multispeed Adjustable,Vertical Wall Printer Multispeed Adjustable,bidirectional wallpen printer |
||

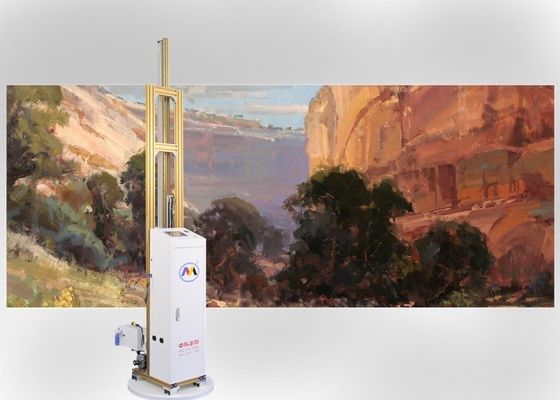

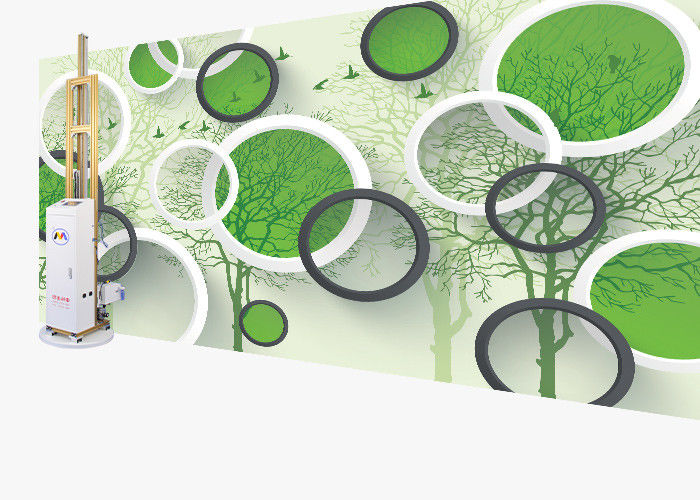

Direct Wall Painting Multispeed Adjustable Vertical Wall Painting Machine
| Basic parameters | |
| Data transmission mode | USB |
| L*W*H (main body from ground) | Standard model: 70*31*239cm (the other models: 259cm, 329cm) |
| Printhead | Auto cleaning |
| Ink consumption | 8-12ml/m2 (less than USD1/m2) |
| Ink base color | Dual 4 colors (CMYK, CMYK), use special water based ink |
| Painting precision | From 720DPI, upto 2880DPI |
| Painting direction | Vertical |
| Painting speed | Multispeed adjustable, ~1-7m2/h |
| Voltage/power | 90-246V/380W,47-63HZ |
| Noise | Standy<20dBA, painting <50dBA |
| Storage/Operation | -10℃-35℃(59°F-95°F) |
| 10%-70% relative humidity, in non-condensation state | |
| Surface tracing | Hyperbolic banner sensors, two-way induction up and down |
| Machine configuration | |
| X axis guide | 5m rails |
| Y axis guide | Standard model: 219cm (other models: 239cm, 309cm) |
| Z axis guide | 15cm |
| Display screen | 4.3’’ LCD, touch screen |
| Spay distance | 0.5-1cm |
| X axis effective stroke | 470cm |
| Y axis effective stroke | Standard model: 180cm (other models: 200cm, 270cm) |
| Z axis effective stroke | 10cm |
| Synchro belt | 1pc |
| Drive rack | 5pcs |
| Net picture print height | Standard 1.8m (other models: 2.0m, 2.7m), unlimited width |
| Machine weight | 62kg |
| Software | Professional Printer Maintop Software, ZKMC output software |
| Computer system | Windows XP, win7, win8, win10 |
| Packing | 1 plywood packing for standard model of machine, machine and inks in 1 box, total gross weight ~220kg, box dimension ~237x81x68cm |
| Remarks | The above data for reference only, may change due to continuous product/model upgrading. |
