| Place of Origin: | Beijing, China |
| Brand Name: | Zhongkemeichuang |
| Certification: | CE for machine, RoHS for ink |
| Model Number: | ZK-Q8 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 plywood box |
| Delivery Time: | 5-10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets/month |
| Name: | Auto Blank Skip Bi-directional Painting 2880 Dpi 3d Vertical Wall Printer | Type: | Inkjet Printer |
|---|---|---|---|
| Applicable Industries: | Printing Shops | Color: | Multicolor |
| Grade: | Automatic | Ink: | Special Water Based Ink |
| High Light: | 2880 Dpi Vertical Wall Printer,Vertical Wall Printer Auto Blank Skip,Vertical Wall Printer Bidirectional Painting |
||

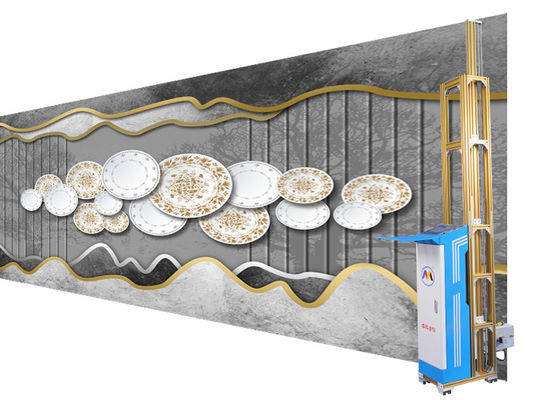

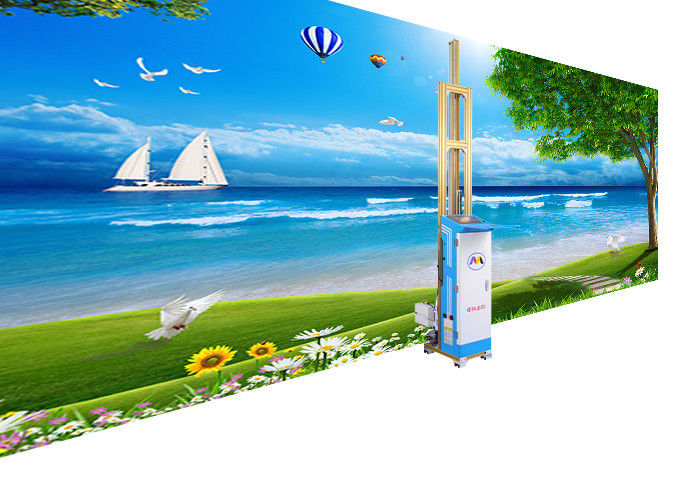

Auto Blank Skip Bi-directional Painting 2880 Dpi 3d Vertical Wall Printer
We are a leader in wall printer related R& D and production. Our vertical wall printer can automatically print various pictures on wall directly. It has the characteristics of fast, efficient, flexible and personalized printing output. Meanwhile, it can dry immediately after printing. Administrative levels feeling of color, gradient, color transitions and other effects show up perfectly by our vertical wall printer.
| Basic parameters | |
| Data transmission mode | USB |
| L*W*H (main body from ground) | Standard model: 70*31*239cm (the other models: 259cm, 329cm) |
| Printhead | Auto cleaning |
| Ink consumption | 8-12ml/m2 (less than USD1/m2) |
| Ink base color | Dual 4 colors (CMYK, CMYK), use special water based ink |
| Painting precision | From 720DPI, upto 2880DPI |
| Painting direction | Vertical |
| Painting speed | Multispeed adjustable, ~1-10m2/h |
| Voltage/power | 90-246V/380W,47-63HZ |
| Noise | Standy<20dBA, painting <50dBA |
| Storage/Operation | -10℃-35℃(59°F-95°F) |
| 10%-70% relative humidity, in non-condensation state | |
| Surface tracing | Hyperbolic banner sensors, two-way induction up and down |
| Machine configuration | |
| X axis guide | 5m rails |
| Y axis guide | Standard model: 219cm (other models: 239cm, 309cm) |
| Z axis guide | 15cm |
| Display screen | 7’’ LCD, touch screen |
| Spay distance | 0.5-1cm |
| X axis effective stroke | 470cm |
| Y axis effective stroke | Standard model: 180cm (other models: 200cm, 270cm) |
| Z axis effective stroke | 10cm |
| Synchro belt | 1pc |
| Drive rack | 5pcs |
| Net picture print height | Standard 1.8m (other models: 2.0m, 2.7m), unlimited width |
| Machine weight | 62kg |
| Lead rails weight | 10kg/piece*5pcs, total 50kg |
| Applied wall | Inside & outside putty wall, latex wall, white wall, diatom mud wall, shell powder wall, paper, brick wall, normal white wall, canvas, etc. |
| Control configuration | |
| Ink container capacity | 400ml |
| Printhead cleaning | Auto |
| Pump test | Y |
| Stepper motor | Y |
| Level | Y |
| Painting mode | Bi-directional |
| Ultrasonic sensors | 2pcs |
| Performance configuration | |
| Language | English |
| Auto blank skip | Y |
| Ink supply mode | Negative pressure auto ink supply |
| Color matching treatment | Auto |
| Ink use | Special water based ink |
| Surface treatment after printing | Water based varnish |
| Integrated voltage stabilizer | Y |
| Ink Heating | Y |
| Software | Professional Printer Maintop Software, ZKMC output software |
| Computer system | Windows XP, win7, win8, win10 |
| Packing | 1 plywood packing for standard model of machine, machine and inks in 1 box, total gross weight ~220kg, box dimension ~237x81x68cm |
| Remarks | The above data for reference only, may change due to continuous product/model upgrading. |
1. Stable, high efficiency, ZK-Q7PLUS with dual-fiber driver, original integrated circuit chips, add Integrated Voltage Regulator and ink heating program, encoded motor, all those improvement make our printer more stable and high efficiency.
2. Train like lead rails, 5pcs *1 meter, save space, transport and reconnect easily.
3. Micro-piezoelectric printhead, the ink jet is much smoothly, quickly, dyeing is more accurate, delicate, bright and clearly.
4. Intelligent lift platform,adjust the machine height according to the different wall heights.
5. Hight Resolution, Printing resolution can reach upto 2880dpi.
6. Automatical printhead cleansing and the uneven wall detecting.
7. CE certificate for wall printer, Rohs for the ink.
8. Warranty, one year warranty (ink and printhead excluded) and lifetime maintenance.
