| Place of Origin: | Beijing, China |
| Brand Name: | Zhongkemeichuang |
| Certification: | CE for machine, RoHS for ink |
| Model Number: | ZK-Q8 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 plywood box |
| Delivery Time: | 5-10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets/month |
| Name: | Automatic Zkmc Wall Decoration Customizable 3d Wall Printing Machine | Lead Time: | 5-10 Working Days |
|---|---|---|---|
| Automatic Blank Skip: | Increase Printing Speed With Lower Cost | Net Height Printing: | Standard 1.8m For Water Based Ink Machine (1.7m For Standard Uv Ink Machine Or Customized Height) |
| Unique Ink Heating System: | Ensure The Machine Works Normally In Cold Weather | Ink: | Special Water Based Ink (uv Machine Uses Special Uv Ink)) |
| High Light: | ceramic 3d wall inkjet printer,customizable height 3d wall inkjet printer,zkmc wall inkjet printer |
||

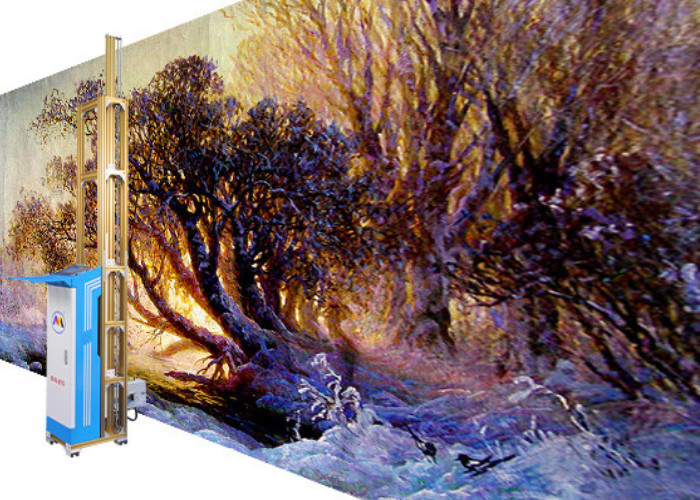

ZKMC 7'' LCD Q8 3D Wall Printer , Customizable Height Wall Decoration Ceramic Decal Printer
There're many sellers in wall printing machine market, ZKMC wall printer plays the key role in this industry because of high quality and effective technical support for trouble shooting.
ZKMC 3d Wall Printing Machine, set from software development to hardware design, system testing, technical services are completed by professional and technical personnel.
Characteristics
1. Adopt precise imported sensors, ZKMC wallpen mural printer can print uneven wall
2. Adopt continuous ink supply system, low using cost
3. ZKMC wall printing machine printing resolution up to 2880dpi
4. With 7'' LCD touch screen build in machine, easy operation
5. Can use for outdoor and indoor printing for advertising and decoration
6. ZKMC developed professional vertical printing program, system
We know our customers well and know how to discover the most valuable parts of our business to help our buyers achieve their goals. Our products not only successfully occupy the vast majority of the market in China, but also exported to all over the world, including: Russia, Canada, Switzerland, Israel, Sweden, Romania, Egypt and so on.
ZKMC has the best component manufacturers and the best supply chain in China, as well as a sound quality and innovation. Our goal is very simple: provide industry-leading customer service, and to sell the best machines at the best prices for win-win situation.
| Basic parameters | |
| Data transmission mode | USB |
| L*W*H (main body from ground) | Standard model: 70*31*239cm (machine total height 239cm of net picture printing height 1.8m for 1-head water based ink machine, 1.7m for 1-head uv ink machine). Machine height customizable |
| Printhead | Auto cleaning |
| Ink consumption | 8-12ml/m2/printhead (less than USD1/m2) |
| Ink base color | CMYK, use special water based ink (uv machine uses uv ink) |
| Painting precision | From 720DPI, upto 2880DPI |
| Painting direction | Vertical |
| Painting speed | Multispeed adjustable, low, medium, high |
| Voltage/power | 90-246V/380W,47-63HZ |
| Noise | Standy<20dBA, painting <50dBA |
| Storage/Operation | -10℃-35℃(59°F-95°F) |
| 10%-70% relative humidity, in non-condensation state | |
| Surface tracing | Hyperbolic banner sensors, two-way induction up and down |
| Machine configuration | |
| X axis guide | 5m rail |
| Y axis guide | Standard model: 219cm |
| Z axis guide | 15cm |
| Display screen | 7’’ LCD, touch screen |
| Spay distance | 0.5-1cm |
| X axis effective stroke | 470cm |
| Y axis effective stroke | Standard model: 170cm (standard uv model 170cm) |
| Z axis effective stroke | 10cm |
| Synchro belt | 1pcs |
| Drive rack | 5pcs |
| Net picture print height | Standard 1.8m (standard uv model 170cm), unlimited width |
| Lead rails weight | 10kg*5pcs |
| Applied wall | Inside & outside putty wall, latex wall, white wall, diatom mud wall, shell powder wall, wooden wall, paper, brick wall, canvas, etc. (uv ink machine could print on glass, metal, pvc, ceramic tiles, etc.) |
| Control configuration | |
| Ink container capacity | 400ml |
| Printhead cleaning | Auto |
| Pump test | Y |
| Stepper motor | Y |
| Level | Y |
| Painting mode | Bi-directional |
| Ultrasonic sensors | 2pcs |
| Performance configuration | |
| Language switch | English |
| Auto skip blank | Y |
| Intelligent lifting | Support |
| Ink supply mode | Negative pressure auto ink supply |
| Color matching treatment | Auto |
| Ink use | Water based ink (uv machine uses customized special uv ink) |
| Integrated voltage stabilizer | Y |
| Ink Heating | Y |
| Software | Professional Printer Maintop Software, ZKMC output software |
| Computer system | Windows XP, win7, win8, win10 |
| Remarks | The above data for reference only, may change due to continuous product/model upgrading. |
