| Place of Origin: | Beijing, China |
| Brand Name: | Zhongkemeichuang |
| Certification: | RoHS for ink |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 plywood box |
| Delivery Time: | 5-10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets/month |
| Name: | ZKMC 2880 Dpi HD Smart 3d Glass Metal Ceramic Tiles Painting UV Wall Printer | Printhead: | Foldable For 1-printhead |
|---|---|---|---|
| Horizontal Rails: | Foldable If Needed | Painting color: | CMYK Or CMYK+WWWW Per Demand |
| Ultrasonic sensors: | 2 Pcs Sensors, Automatic Up And Down Surface Tracing | Ink supply mode: | Negative Pressure Auto Ink Supply |
| High Light: | foldable printhead uv wall printer,1.4m uv wall printer,bidirectional wall digital printing machine |
||

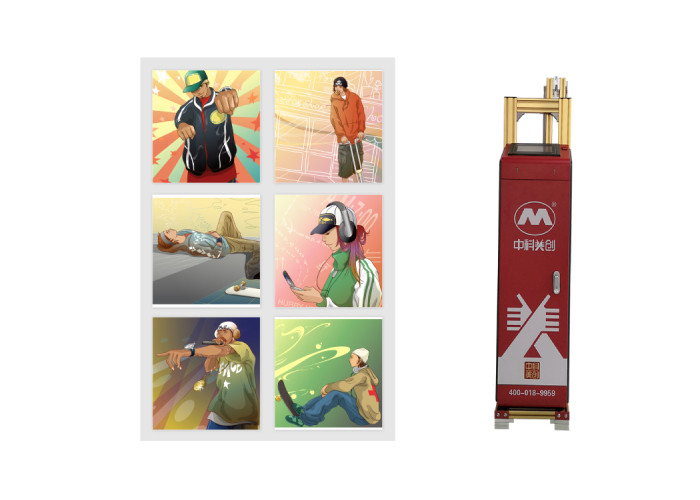

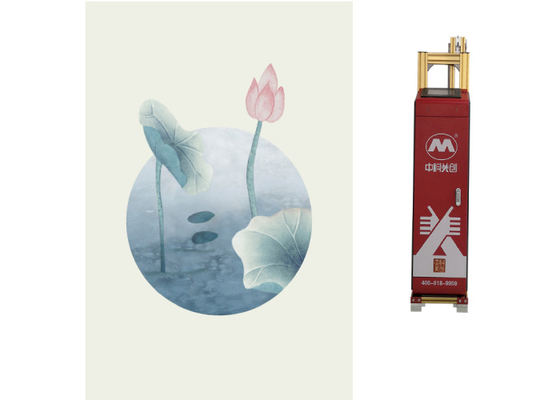

ZKMC 2880 Dpi HD Smart 3d Glass Metal Ceramic Tiles Painting UV Wall Printer
Our wall printer participated in expo in Berlin IFA 2018, and Moscow 2019. You are welcome to meet us on next expo or we can have video call. Over the past years, many of our buyers became very successful businessmen by using our wall printers to fulfill their entrepreneurship, they are happy with our one-stop services including marketing intelligence, company running procedure, and after-sales services.
Features
1. Quick Drawing - It only takes one-tenth of the time to draw by hand, twice as much as drawing by hand.
2. Intelligent operation: several hours to master the core technology, simple as use of mobile phone operation, no painting skills needed.
3. Unique ink heating program: not afraid of cold, four seasons available
4. Intelligent speed adjustment - automatic speed adjustment in the middle of printing
5. Train track-type automatic movement, easy to carry to different projects by cars.
6. Smart blank skip from up to down, left to right.
7. The device uses imported chip integrated circuit, instead of artificial drawing, more intelligent, humane, faster.
8. Equipped with dual ultrasonic sensors, up and down two-way sensing, surface tracking, automatic positioning, automatic solution to uneven walls, wall tilt and other issues.
| Basic parameters | |
| Data transmission mode | USB |
| L*W*H (main body from ground) | Standard model: 70*31*239cm (machine total height 239cm of net picture printing height 1.7m). Height 1.4m after folding. |
| Printhead | Auto cleaning, printhead foldable |
| Ink consumption | 8-12ml/m2 (less than USD1/m2) |
| Ink base color | CMYK for 1-printhead, or CMYK+WWWW for 2-printhead, use special customized uv ink |
| Painting precision | Up to 2880DPI |
| Painting speed | Multispeed adjustable, ~1-10m2/h |
| Voltage/power | 90-246V/380W,47-63HZ |
| Noise | Standy<20dBA, painting <50dBA |
| Storage/Operation | -10℃-35℃(59°F-95°F) |
| 10%-70% relative humidity, in non-condensation state | |
| Surface tracing | Hyperbolic banner sensors, two-way induction up and down |
| Machine configuration | |
| X axis guide | 5m rail |
| Y axis guide | Standard model: 219cm, height customizable |
| Z axis guide | 15cm |
| Display screen | 7’’ LCD, touch screen |
| Spay distance | 0.5-1cm |
| X axis effective stroke | 470cm |
| Y axis effective stroke | Standard model: 170cm,customizable |
| Z axis effective stroke | 10cm |
| Synchro belt | 1pcs |
| Drive rack | 5pcs |
| Net picture print height | Standard 1.7m,(height customizable), unlimited width |
| Machine weight | 62kg |
| Lead rails weight | 10kg*5pcs, rail foldable |
| Applied materials | Metal, pvc, glass, putty wall, latex wall, white wall, diatom mud wall, shell powder wall, wooden wall, paper, brick wall, canvas, etc. |
| Control configuration | |
| Ink container capacity | 400ml per piece |
| Printhead cleaning | Auto |
| Pump test | Y |
| Stepper motor | Y |
| Level | Y |
| Painting mode | Bi-directional |
| Ultrasonic sensors | 2pcs |
| Performance configuration | |
| Language switch | English |
| Auto skip blank | Y |
| Intelligent lifting | Support |
| Ink supply mode | Negative pressure auto ink supply |
| Color matching treatment | Auto |
| Ink use | Special customized uv ink |
| Integrated voltage stabilizer | Y |
| Ink Heating | Y |
| Software | Professional Printer Maintop Software, ZKMC output software |
| Computer system | Windows XP, win7, win8, win10 |
| Remarks | The above data for reference only, may change due to continuous product/model upgrading. |
ZKMC products development history:
*Jul 2013 model: zk-q 1st generation
*Jul 2013 model: zk-q 2nd generation
*Jul 2013 model: zk-q 3rd generation
*Mar 2014 model: zk-q 4th generation
*Oct 2014 model: zk-q 5th generation
*Mar 2015 model: zk-q 6th generation
*Sep 2016 model: zk-q 7th generation
*Nov 2017 model: zk-q 7plus generation
*Feb 2018 model: zk-q 8th generation
*Mar 2019 model: zk-q 9th generation
*Jun 2019 model: zk-q 10th generation
