| Place of Origin: | Beijing, China |
| Brand Name: | Zhongkemeichuang |
| Certification: | RoHS for ink |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 plywood box |
| Delivery Time: | 5-10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets/month |
| Name: | ZKMC 2021 Released Foldable Rails And Printhead Bidirectional Printing 2880dpi Smart Direct To Wall Printer Robot | Printhead: | 1-printhead Foldable |
|---|---|---|---|
| Vertical: | Foldable, Height Customizable | Ink Used: | Special Uv Ink |
| Software: | Maintop, And ZKMC Output Software | Machine Height: | 1.4m After Folding. Machine Height Customizable |
| High Light: | bidirectional printing uv wall printer,1.4m uv wall printer,usb vertical wall printer machine |
||

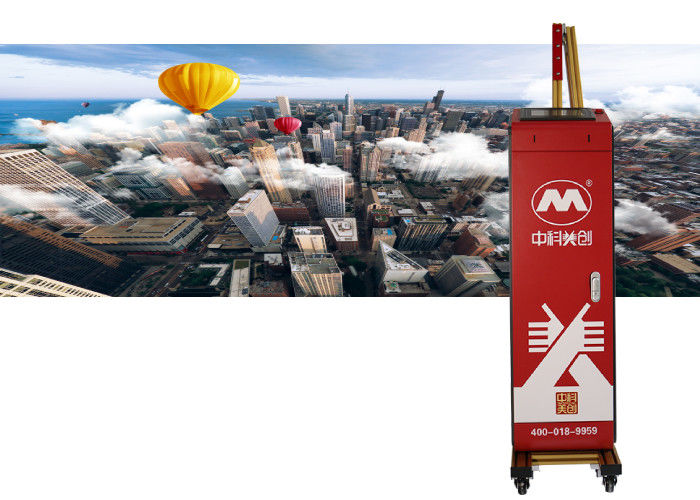

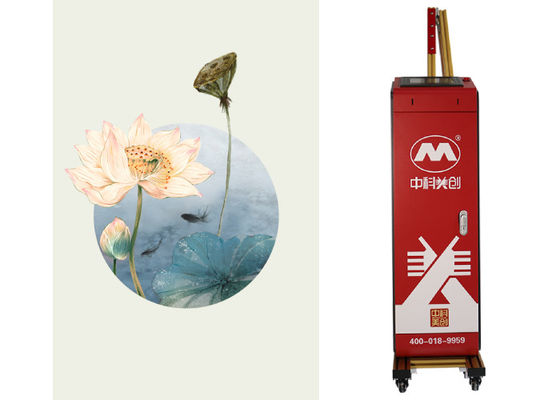

ZKMC 2021 Released Foldable Rails And Printhead Bidirectional Printing 2880dpi Smart Direct To Wall Printer Robot
We have 9 patents related on wall printing machine since 2013:
1. Nozzle vertical movement device (practical type)
2. Wall plotter control box (practical type)
3. Cartridge constant temperature heating device (practical type)
4. Wall plotter nozzle automatic tracking device (practical type)
5. Detachable wall plotter base (practical type)
6. Multifunctional guide rail wall plotter with unlimited screen length (practical type)
7. Automatic cleaning device for the nozzle of wall plotter (practical type)
8. 3D wall-mounted printer (design)
9. Multifunctional guide rail coating machine (appearance design)
Our machines are recommended by investors and brands authoritatively recommended by CCTV1, CCTV2, CCTV4, CCTV7, CCTV9, and CCTV10.
ZKMC wall printer is a multi-functional wall printing machine, suitable for many materials, to create a modern trend home, the effect is obvious, and the price also has a certain advantage, won praise and pursuit of people, the market praise. In many projects, the price of ZKMC wall printing machine is very popular, the brand of high-quality environmental protection products, become the choice of many consumers, achieved good results, market visibility has also been very good promotion, has become a well-deserved leader in the industry.
| Basic parameters | |
| Data transmission mode | USB |
| L*W*H (main body from ground) | Standard model: 70*31*239cm (height customizable). Height 1.4m after folding. |
| Printhead | Auto cleaning, 1-printhead foldable |
| Ink consumption | 8-12ml/m2 (less than USD1/m2) |
| Ink base color | CMYK, use special water based ink |
| Painting precision | Up to 2880DPI |
| Painting speed | Multispeed adjustable, ~1-10m2/h |
| Voltage/power | 90-246V/380W,47-63HZ |
| Noise | Standy<20dBA, painting <50dBA |
| Storage/Operation | -10℃-35℃(59°F-95°F) |
| 10%-70% relative humidity, in non-condensation state | |
| Surface tracing | Hyperbolic banner sensors, two-way induction up and down |
| Machine configuration | |
| X axis guide | 5m rail |
| Y axis guide | Standard model: 219cm (height customizable) |
| Z axis guide | 15cm |
| Display screen | 7’’ LCD, touch screen |
| Spay distance | 0.5-1cm |
| X axis effective stroke | 470cm |
| Y axis effective stroke | Standard model:160cm (height customizable) |
| Z axis effective stroke | 10cm |
| Synchro belt | 1pcs |
| Drive rack | 5pcs |
| Net picture print height | Standard 1.6m (height customizable), unlimited width |
| Machine weight | 62kg |
| Lead rails weight | 10kg*5pcs, rail foldable |
| Applied wall | Ceramic tiles, canvas, tiles, glass, inside & outside putty wall, latex wall, white wall, diatom mud wall, shell powder wall, wooden wall, paper, brick wall, canvas, etc. |
| Control configuration | |
| Ink container capacity | 400ml |
| Printhead cleaning | Auto |
| Pump test | Y |
| Stepper motor | Y |
| Level | Y |
| Painting mode | Bi-directional |
| Ultrasonic sensors | 2pcs |
| Performance configuration | |
| Language switch | Chinese, English |
| Auto skip blank | Y |
| Intelligent lifting | Support |
| Ink supply mode | Negative pressure auto ink supply |
| Color matching treatment | Auto |
| Ink use | Special uv ink |
| Integrated voltage stabilizer | Y |
| Ink Heating | Y |
| Software | Professional Printer Maintop Software, ZKMC output software |
| Computer system | Windows XP, win7, win8, win10 |
| Remarks | The above data for reference only, may change due to continuous product/model upgrading. |
The price of ZKMC wall printing machine is cheap, it is the industry leader, by virtue of its own advantages, occupied a large market, attracted the attention of countless entrepreneurs.
Whether for consumers or investors, ZKMC wall painting machine is a very trustworthy project, it has a great advantage in terms of price, favored by people, the demand is increasing, investment prospects are considerable, trustworthy.
ZKMC Wall Printer is a very good entrepreneurial project, it is highly popular in the industry, good reputation, in the face of such a good opportunity, if you want to know more about the brand situation, do not miss.
