Home ProductsVertical Wall Printing Machine

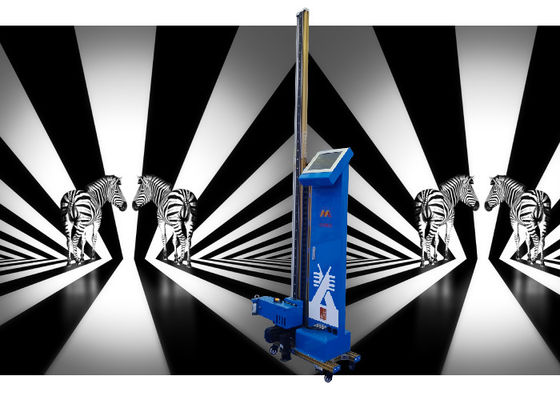

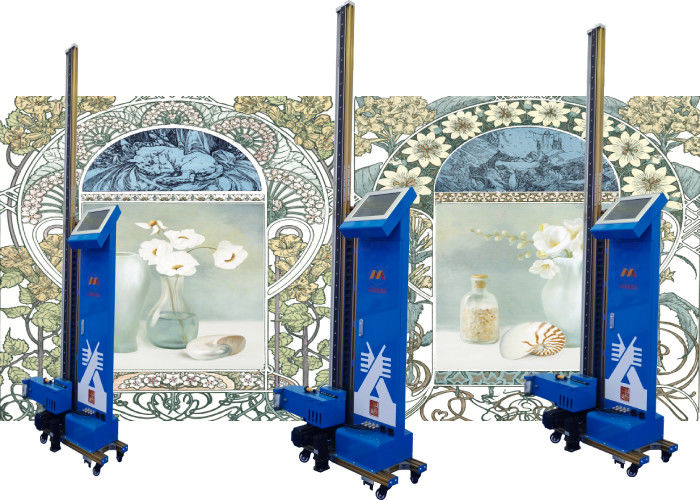

Touch Cmyk Automatic Color Matching Wall Printing Robot

Touch Cmyk Automatic Color Matching Wall Printing Robot

Touch Cmyk Automatic Color Matching Wall Printing Robot
Touch Cmyk Automatic Color Matching Wall Printing Robot
Touch Cmyk Automatic Color Matching Wall Printing Robot
Product Details:
Place of Origin: Beijing, China
Brand Name: Zhongkemeichuang
Certification: RoHS for ink
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: 1 plywood box
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Name: 3d Effects 50kg Industrial Computer CMYK 4 Colors Automatic Color Matching 2880dpi Auto Skip Blank Vertical Wall Printer Display Screen: Touch Computer All In One
Foldable Rail: Yes, Vertical Rail Foldable Ink Base Color: CMYK 4 Colors, Use Special Water Based Ink
Color Matching Treatment: Automatic Color Matching Come Into Market: 2021
High Light:

cmyk 3d wallpaper printing machine


cmyk wall printing robot


automatic color matching wall printing robot


3d effects 50kg Industrial Computer CMYK 4 Colors Automatic Color Matching 2880dpi Auto Skip Blank Vertical Wall Printer


It is not possible that high configuration machine be sold out at a lower price, because all sorts of wall painting machine parts are delicate and valuable, our factory can not produce all the machine parts, for instance, the print head etc need to be imported from other countries, so the machine price can not be too low to cover our imported machine parts etc. cost. The print head is delicate and need to be take good care of, the print head diameter one percent of one millimeter, which is as thin as one quarter of human hair.


ZKMC Wall Printing Machine, You get what You pay for.


As we all know, the advantage of  wall painting machine is to save time and energy, as long as put the design pictures into the computer, the wall printer can print beautiful patterns.The painting effect done by the machine is more delicate and realistic and efficient compared with manual artists works.


About the price and quality, the fact is, the higher the price, the higher the quality. Wall painting machine price largely determines the service life of it.




1. Patents: In the past 8 years, ZKMC has obtained around 9 related patents regarding wall printing machine.

2. Credentials: Our products have been certified with CE for machine, RoHS for ink, and DGM Ink Air Transport.

3. Global market: Our machines are getting popular in many countries worldwide. So far, our printers have been exported to Israel, Romania, Canada, Egypt, Swiss, Sweden, Russia, and so on.

4. Local service in abroad: Customers from Russia, Belarus, Middle East... could get in touch with our sole agents there for timely consultation of ZKMC wall printing machine.


ZKMC will be your lifetime reliable partner!


Machine configuration
X axis guide 5m rails
Y axis guide Standard model: 219cm (height customizable)
Z axis guide 15cm
Touch computer all in one Installed in machine
Spay distance 0.5-1cm
X axis effective stroke 470cm
Y axis effective stroke Standard model: 180cm (height customizable)
Z axis effective stroke 10cm
Synchro belt 1pc
Drive rack 5pcs
Net picture print height Standard 1.8m (height customizable), unlimited width
Machine weight 50kg
Lead rails weight 10kg*5pcs
Applied wall Inside & outside putty wall, latex wall, white wall, diatom mud wall, shell powder wall, wooden wall, paper, brick wall, canvas, etc.
Control configuration
Ink container capacity 400ml
Printhead cleaning Auto
Pump test Y
Stepper motor Y
Level Y
Painting mode Bi-directional
Ultrasonic sensors 2pcs
Performance configuration
Language switch Chinese, English
Auto skip blank Y
Intelligent lifting Support
Ink supply mode Negative pressure auto ink supply
Color matching treatment Auto
Ink use Water based ink
Surface treatment Water based varnish
Integrated voltage stabilizer Y
Ink Heating Y
Software Professional Printer Maintop Software, ZKMC output software
Computer system Windows XP, win7, win8, win10
Remarks The above data for reference only, may change due to continuous product/model upgrading.



It's our newly developed wall painting robot. Why? Well, it's touch computer all in one, auto skip blank function, and laser auto positioning funtion. Its auto ink heating  system can make the robot work even in cold winter, and the color effect can reach 2880dpi, 100% showing the original photo effect, if the photo itself is 3D, printing on walls will show 3D effect accordingly.


ZKMC is professional in 3d wall printer robot innovation and producing. We are leading in this field in China, welcome to meet us in our office buiding or on our booth on international fairs, or we can have vivid video calls so that you can have a deep understanding in this smart wall printer robot, bring her to  your home and she can be your good partner, she can print on walls automatically as long as you switch it with your laptop delicate photos.



Intelligent 3D Wall Printing Machine 0


Beijing Zhongkemeichuang Science And Technology Ltd. was founded in 2013, Beijing, China. Being the pioneer of wall printer related R&D, we grew up together with our customers. A lot of our buyers have make good money in mural printing business, and become very successful entrepreneurs. Hopefully, more people could know this magic printing robot, to grasp this precious opportunity to become richer as well.


Intelligent 3D Wall Printing Machine 1Intelligent 3D Wall Printing Machine 2Intelligent 3D Wall Printing Machine 3Intelligent 3D Wall Printing Machine 4


Real cases done by ZKMC wall printers!


Intelligent 3D Wall Printing Machine 5Intelligent 3D Wall Printing Machine 6
