| Place of Origin: | Beijing, China |
| Brand Name: | Zhongkemeichuang |
| Certification: | CE for machine, RoHS for ink |
| Model Number: | ZK-Q8 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 plywood box |
| Delivery Time: | 5-10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets/month |
| Name: | Outdoor Indoor 5m Rails Dual 4 Colors 3d Vertical Wall Printing Machine | Ink Color: | C M Y K, Dual 4 Colors |
|---|---|---|---|
| Storage: | -10℃-35℃（59°F-95°F） | Operation: | 10%-70% Relative Humidity, In Non-condensation State |
| Surface Tracing: | Hyperbolic Banner Sensors, Two-way Induction Up And Down | Voltage/power: | 90-246V/380W,47-63HZ |
| High Light: | 5m Rails Vertical Wall Printing Machine,63HZ Vertical Wall Printing Machine |
||

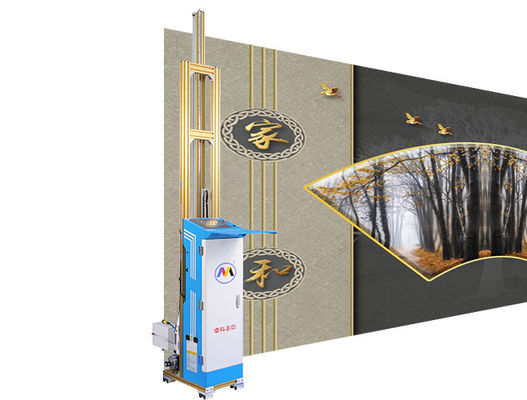

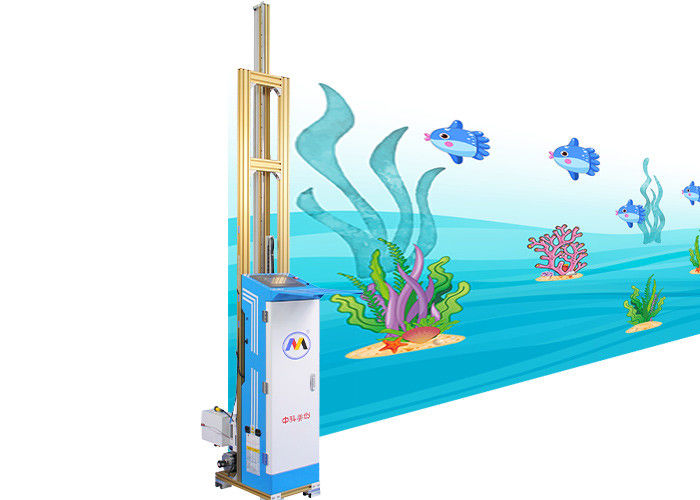

Outdoor Indoor 5m Rails Dual 4 Colors 3d Vertical Wall Printing Machine
The vertical wall printer can paint on various materials, including but not limited to latex wall, putty powder wall, diatom wall, brick wall, white wall, paper, etc.
| Basic parameters | |
| Data transmission mode | USB |
| L*M*H (main body from ground) | Standard model: 70*31*239cm (the other models: 259cm, 329cm) |
| Printhead | Auto cleaning |
| Ink consumption | 8-12ml/m2 (less than USD1/m2) |
| Ink base color | Dual 4 colors (CMYK, CMYK), use special water based ink |
| Painting precision | From 720DPI, upto 2880DPI |
| Painting direction | Vertical |
| Painting speed | Multispeed adjustable, ~1-10m2/h |
| Voltage/power | 90-246V/380W,47-63HZ |
| Noise | Standy<20dBA, painting <50dBA |
| Storage/Operation | -10℃-35℃(59°F-95°F) |
| 10%-70% relative humidity, in non-condensation state | |
| Surface tracing | Hyperbolic banner sensors, two-way induction up and down |
| Machine configuration | |
| X axis guide | 5m rails |
| Y axis guide | Standard model: 219cm(the other models: 239cm, 309cm) |
| Z axis guide | 15cm |
| Display screen | 7’’ LCD, touch screen |
| Spay distance | 0.5-1cm |
| X axis effective stroke | 470cm |
| Y axis effective stroke | Standard model: 180cm (the other models: 200cm, 270cm) |
| Z axis effective stroke | 10cm |
| Synchro belt | 1pc |
| Drive rack | 5pcs |
| Net picture print height | Standard 1.8m (other models: 2.0m, 2.7m), unlimited width |
| Machine weight | 62kg |
| Lead rails weight | 10kg*5pcs |
| Applied wall | Inside & outside putty wall, latex wall, white wall, diatom mud wall, shell powder wall, wooden wall, paper, brick wall, canvas, etc. |
| Control configuration | |
| Ink container capacity | 400ml |
| Printhead cleaning | Auto |
| Pump test | Y |
| Stepper motor | Y |
| Level | Y |
| Painting mode | Bi-directional |
| Ultrasonic sensors | 2pcs |
| Performance configuration | |
| Language switch | Chinese, English |
| Auto skip blank | Y |
| Intelligent lifting | Support |
| Ink supply mode | Negative pressure auto ink supply |
| Color matching treatment | Auto |
| Ink use | Water based ink |
| Surface treatment | Water based varnish |
| Integrated voltage stabilizer | Y |
| Ink Heating | Y |
| Software | Professional Printer Maintop Software, ZKMC output software |
| Computer system | Windows XP, win7, win8, win10 |
| Remarks | The above data for reference only, may change due to continuous product/model upgrading. |
Over the past years, many of ZKMC customers became very successful businessmen because of applying our wall printer to fulfill their entrepreneurship. Additionally, we've exported to many countries, like American, European, Middle East, and Asian countries... In China's domestic market, our average sales quantity is ~50 sets monthly.
As a matter of fact, our machine running cost is very low, less than USD1 ink cost of per sqm painting. But has return of tens of times if you just charge USD 10 per sqm to your customers. Ink consumption is~ 8-12ml/sqm. There's huge market outlook for a total revolution of wall decoration for leading a new business trend.
