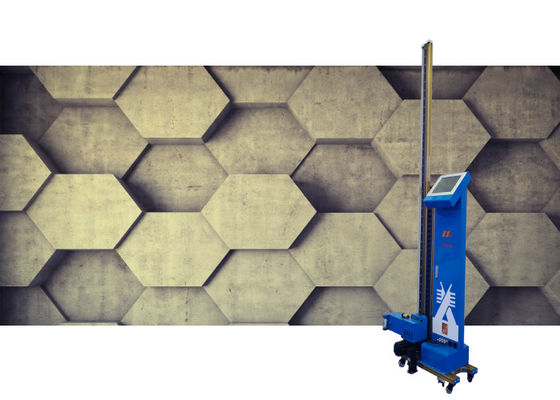

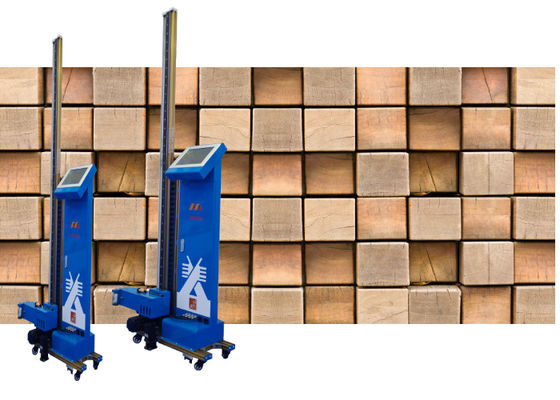

USB Type Zkmc Water Based Ink Robot Wall Printer

USB Type Zkmc Water Based Ink Robot Wall Printer

USB Type Zkmc Water Based Ink Robot Wall Printer
USB Type Zkmc Water Based Ink Robot Wall Printer
USB Type Zkmc Water Based Ink Robot Wall Printer
Product Details:
Place of Origin: Beijing, China
Brand Name: Zhongkemeichuang
Certification: ROHs for ink
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: 1 plywood box
Supply Ability: 100sets/month
Contact Now
Detailed Product Description
Name: Zkmc 2021 New Water Based Ink Foldable Vertical Rail Automatic Surface Tracing 3d Mural Wall Printer Robot Ink Use: Special Water Based Ink
Data transmission mode: USB Painting Speed: Speed Adjustable, 1-10㎡/h
L*W*H (main body from ground): Standard Model: 70*31*239cm Painting Precision: From 720dpi, Upto 2880dpi
Ink consumption: 8-12ml/m2 (less Than USD1/m2) Ultrasonic Sensors: 2pcs, Automatic Surface Tracing
High Light:

USB vertical 3d wall printing machine


zkmc robot wall printer


water based ink robot wall printer


Zkmc 2021 New Water Based Ink Foldable Vertical Rail Automatic Surface Tracing 3d Mural Wall Printer Robot


Tne new slim thin model of water based ink machine is developed based on our international customers' demand. Its foldable vertial rail and universal wheels under the machine which enable the machine moves easily from project to project.


The machine's equipped with 2 American banner ultrasonic sensors which can detect the wall flatness automatically. Accordingly, the printhead moves back and forth on the Z axis. Therefore, an appropriate distance from the wall and the printhead is kept, to effectively preventing printhead damage.


In every country, advertising and decoration field is a gold mine, for instance, China's advertising decoration industry annual value is 16billion USD. The cost of printing brochures, posters, metal billboards, LED billboards etc are low, and the profits of these advertising can be hundreds or thousands times of the cost.


Wall painting market is a guaranteed market. The robot is not expensive, the ink cost is less than USD1 per square meter, but the market price is USD10-50 per square meter. What you need to do is to buy a brand Wall Painting Robot and start your business.


ZKMC vertical wall printer, is very popular, espeically in some developing coutries. Why? Mainly because it's affordable price and stable machine performance for both indoor and outdoor mural printings, and can bring you a lot of business chance and money.



Basic parameters
Data transmission mode USB
L*W*H (main body from ground) Standard model: 70*31*239cm (height customizable)
Printhead 2 pcs, Auto cleaning
Ink consumption 8-12ml/m2 (less than USD1/m2)
Ink base color Dual 4 colors (CMYK, CMYK), use special water based ink
Painting precision From 720DPI, upto 2880DPI
Painting direction Vertical
Painting speed Multispeed adjustable, ~1-10m2/h
Voltage/power 90-246V/380W,47-63HZ
Noise Standy<20dBA, painting <50dBA
Storage/Operation -10-35℃(59°F-95°F)
10%-70% relative humidity, in non-condensation state
Surface tracing Hyperbolic banner sensors, two-way induction up and down
Machine configuration
X axis guide 5m rails
Y axis guide Standard model: 219cm
Z axis guide 15cm
Display screen Industrial computer
Spay distance 0.5-1cm
X axis effective stroke 470cm
Y axis effective stroke Standard model: 180cm
Z axis effective stroke 10cm
Synchro belt 1pc
Drive rack 5pcs
Net picture print height Standard 1.8m (height customizable), unlimited width
Machine weight 50kg
Lead rails weight 10kg/piece*5pcs, total 50kg
Applied wall Inside & outside putty wall, latex wall, white wall, diatom mud wall, shell powder wall, paper, brick wall, normal white wall, canvas, etc.
Control configuration
Ink container capacity 400ml
Printhead cleaning Auto
Pump test Y
Stepper motor Y
Level Y
Painting mode Bi-directional
Ultrasonic sensors 2pcs
Performance configuration
Language English
Computer system Windows XP, win7, win8, win10
Packing 1 plywood packing for standard model of machine, machine and inks in 1 box, total gross weight ~220kg, box dimension ~237x81x68cm
Remarks The above data for reference only, may change due to continuous product/model upgrading.


ZKMC vertical wall printer advantages:


Customizable 2880dpi 1.8m Height Inkjet Wall Printing Machine 1


Beijing Zhongkemeichuang (ZKMC) Science And Technology Ltd., established in 2013, is a high-tech company specializing in R & D, production, sales and after-sales service of intelligent wall printer machine. In order to meet the market demand, the scale of the brand is becoming larger and larger. We have sole agents in Middle East, Russia and Belarus, have set up offices in Changsha, Guiyang, Jinan. Zhongkemei is the founder of 3d colorful inkjet wall printer. This invention not only saves labor cost, but also breaks the limitation of hand drawing. Break through the technical problems at all levels, perfect response to curved wall, all kinds of weather, and other problems. Many traditional hand-painted masters are very much impressed by our wall printer. It was recommended as a potential investment project by CCTV, and was specially reported by CCTV financial channel. Our products are exported to Romania, Switzerland, Russia, Egypt, Israel, Canada, Sweden, Vietnam, and other countries. ZKMC wall printer quality has been well received by customers.


Customizable 2880dpi 1.8m Height Inkjet Wall Printing Machine 2

Customizable 2880dpi 1.8m Height Inkjet Wall Printing Machine 3


1. What payment method are supported?
Preferred payment method is T/T.


2. What’s your delivery time?
We will arrange the delivery within 5~10 working days after receiving the payment.

3. Can we send our technician to your factory for training?
Yes, you are warmly welcome to visit us for free training.


4. Once there is something need to replace, what can I do?
We supply all the spare parts for the printer. We suggest that users order spare parts package for long time maintenance and fast replacement.

5. If I have some technical problem, how can you help us to solve it?
Detailed description, photos or video will help our technician analyze the issue and provide related solution accordingly.


Contact: Teresa Wu

In charge of foreign trade

Telegram/WhatsApp/WeChat/Mobile: +8613011010380

Email: wallprinter@foxmail.com
