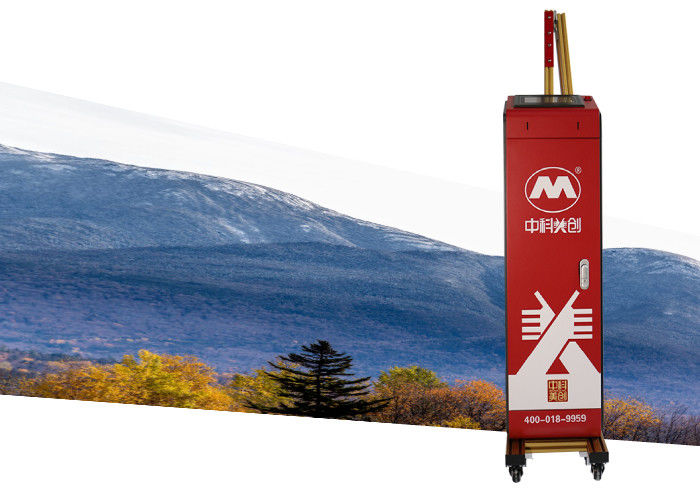

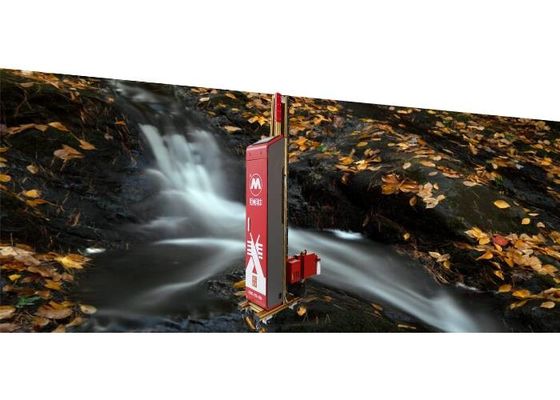

Foldable Printhead And Rails Vertical Wall Printing Machine With Wheels

Foldable Printhead And Rails Vertical Wall Printing Machine With Wheels

Foldable Printhead And Rails Vertical Wall Printing Machine With Wheels
video
Foldable Printhead And Rails Vertical Wall Printing Machine With Wheels
Product Details:
Place of Origin: Beijing, China
Brand Name: Zhongkemeichuang
Certification: RoHS for ink
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: 1 plywood box
Delivery Time: 5-10 work days
Payment Terms: T/T
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Name: Dual 4 Colors New Lauched Foldable Printhead And Rails Vertical Wall Printing Machine Ink Color: C M Y K, Dual 4 Colors
Storage: -10℃-35℃(59°F-95°F) Operation: 10%-70% Relative Humidity, In Non-condensation State
Surface Tracing: Hyperbolic Banner Sensors, Two-way Induction Up And Down Voltage/power: 90-246V/380W,47-63HZ
High Light:

foldable printhead vertical wall printing machine

,

foldable rails vertical wall printing machine

,

vertical wall printing machine with wheels



Dual 4 Colors New Lauched Foldable Printhead And Rails Vertical Wall Printing Machine



ZKMC new lauched foldable rails and foldable printhead vertical wall printer is very popular in the market for easier transportation with omni-directional wheels under the machine.



The vertical wall printer can paint on various materials, including but not limited to latex wall, putty powder wall, diatom wall, brick wall, white wall, paper, etc. As a matter of fact, our machine running cost is very low, less than USD1 ink cost of per sqm painting. But has return of tens of times if you just charge USD 10 per sqm to your customers. Ink consumption is~ 8-12ml/sqm. There's huge market outlook for a total revolution of wall decoration for leading a new business trend.



Basic parameters
Data transmission mode USB
L*M*H (main body from ground) Standard model: 70*31*239cm
Printhead Auto cleaning
Ink consumption 8-12ml/m2 (less than USD1/m2)
Ink base color Dual 4 colors (CMYK, CMYK), use special water based ink
Painting precision From 720DPI, upto 2880DPI
Painting direction Vertical
Painting speed Multispeed adjustable, ~1-10m2/h
Voltage/power 90-246V/380W,47-63HZ
Noise Standy<20dBA, painting <50dBA
Storage/Operation -10-35℃(59°F-95°F)
10%-70% relative humidity, in non-condensation state
Surface tracing Hyperbolic banner sensors, two-way induction up and down
Machine configuration
X axis guide 5m rails
Y axis guide Standard model: 219cm
Z axis guide 15cm
Display screen 7’’ LCD, touch screen
Spay distance 0.5-1cm
X axis effective stroke 470cm
Y axis effective stroke Standard model: 180cm (the other models: 200cm, 270cm)
Z axis effective stroke 10cm
Synchro belt 1pc
Drive rack 5pcs
Net picture print height Standard 1.8m (other models: 2.0m, 2.7m), unlimited width
Machine weight 62kg
Lead rails weight 10kg*5pcs
Applied wall Inside & outside putty wall, latex wall, white wall, diatom mud wall, shell powder wall, wooden wall, paper, brick wall, canvas, etc.
Control configuration
Ink container capacity 400ml
Printhead cleaning Auto
Pump test Y
Stepper motor Y
Level Y
Painting mode Bi-directional
Ultrasonic sensors 2pcs
Performance configuration
Language switch Chinese, English
Auto skip blank Y
Intelligent lifting Support
Ink supply mode Negative pressure auto ink supply
Color matching treatment Auto
Ink use Water based ink
Surface treatment Water based varnish
Integrated voltage stabilizer Y
Ink Heating Y
Software Professional Printer Maintop Software, ZKMC output software
Computer system Windows XP, win7, win8, win10
Remarks The above data for reference only, may change due to continuous product/model upgrading.


Over the past years, many of ZKMC customers became very successful businessmen because of applying our wall printer to fulfill their entrepreneurship. Additionally, we've exported to many countries, like American, European, Middle East, and Asian countries... In China's domestic market, our average sales quantity is ~50 sets monthly.





Foldable Printhead And Rails Vertical Wall Printing Machine With Wheels 0Foldable Printhead And Rails Vertical Wall Printing Machine With Wheels 1





Foldable Printhead And Rails Vertical Wall Printing Machine With Wheels 2

Foldable Printhead And Rails Vertical Wall Printing Machine With Wheels 3Foldable Printhead And Rails Vertical Wall Printing Machine With Wheels 4Foldable Printhead And Rails Vertical Wall Printing Machine With Wheels 5Foldable Printhead And Rails Vertical Wall Printing Machine With Wheels 6

Foldable Printhead And Rails Vertical Wall Printing Machine With Wheels 7
