| Place of Origin: | Beijing, China |
| Brand Name: | Zhongkemeichuang |
| Certification: | CE for machine, RoHS for ink |
| Model Number: | ZK-Q8 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 plywood box |
| Delivery Time: | 5-10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets/month |
| Name: | Zkmc Ce Certifiate Automatic Mural Printing 3d Wall Inkjet Printer | Applicable Industries: | Restaurant, Home Use, Retail, Food Shops... |
|---|---|---|---|
| After Warranty Service: | Online Or Video Technical Supports | Output Software: | ZKMC Output Software |
| Computer System: | Win 7 - 10 | Type: | Inkjet Printer |
| High Light: | Ce Certificate 3D Wall Inkjet Printer,3D Wall Inkjet Printer Mural Printing,3D Wall Inkjet Printer For Hotel |
||

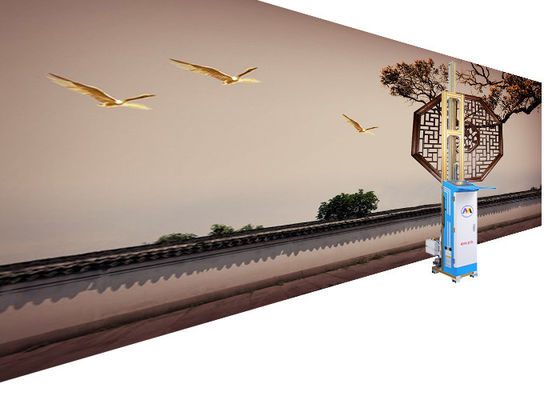

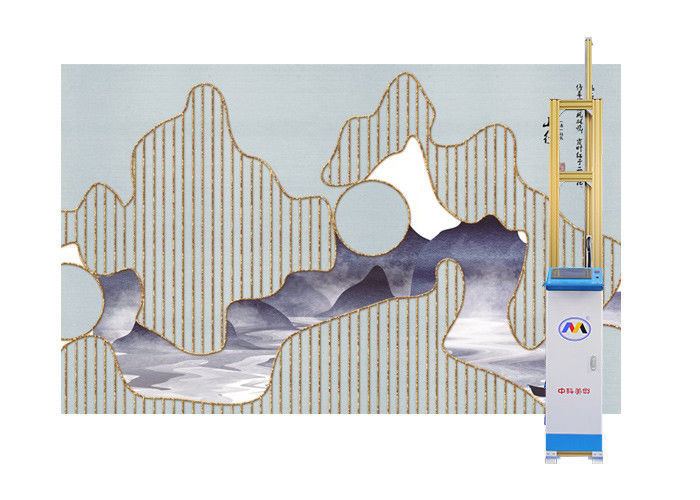

Zkmc Ce Certifiate Automatic Mural Printing 3d Wall Inkjet Printer
Features
1. Quick drawing - It only takes one-tenth of the time to draw by hand, twice as much as drawing by hand.
2. Intelligent operation: several hours to master the core technology, simple as use of mobile phone operation, no painting skills needed
3. Unique ink heating program: not afraid of cold, four seasons available for ZKMC 3d Wall Inkjet Printer
4. Intelligent speed adjustment - automatic speed adjustment in the middle of printing
5. Train track-type automatic movement, easy to carry to different projects by cars
6. Smart blank skip from up to down, left to right
7. ZKMC 3d Wall Inkjet Printer uses imported chip integrated circuit, instead of artificial drawing, more intelligent, humane, faster
8. Equipped with dual ultrasonic sensors, up and down two-way sensing, surface tracking, automatic positioning, automatic solution to uneven walls, wall tilt and other issues.
| Basic parameters | |
| Data transmission mode | USB |
| L*W*H (main body from ground) | Standard model: 70*31*239cm (the other models: 259cm, 329cm) |
| Printhead | Auto cleaning |
| Ink consumption | 8-12ml/m2 (less than USD1/m2) |
| Ink base color | Dual 4 colors (CMYK, CMYK), use special water based ink |
| Painting precision | From 720DPI, upto 2880DPI |
| Painting direction | Vertical |
| Painting speed | Multispeed adjustable, ~1-10m2/h |
| Voltage/power | 90-246V/380W,47-63HZ |
| Noise | Standy<20dBA, painting <50dBA |
| Storage/Operation | -10℃-35℃(59°F-95°F) |
| 10%-70% relative humidity, in non-condensation state | |
| Surface tracing | Hyperbolic banner sensors, two-way induction up and down |
| Machine configuration | |
| X axis guide | 5m rails |
| Y axis guide | Standard model: 219cm (other models: 239cm, 309cm) |
| Z axis guide | 15cm |
| Display screen | 7’’ LCD, touch screen |
| Spay distance | 0.5-1cm |
| X axis effective stroke | 470cm |
| Y axis effective stroke | Standard model: 180cm (other models: 200cm, 270cm) |
| Z axis effective stroke | 10cm |
| Synchro belt | 1pc |
| Drive rack | 5pcs |
| Net picture print height | Standard 1.8m (other models: 2.0m, 2.7m), unlimited width |
| Machine weight | 62kg |
| Lead rails weight | 10kg/piece*5pcs, total 50kg |
| Applied wall | Inside & outside putty wall, latex wall, white wall, diatom mud wall, shell powder wall, paper, brick wall, normal white wall, canvas, etc. |
| Control configuration | |
| Ink container capacity | 400ml |
| Printhead cleaning | Auto |
| Pump test | Y |
| Stepper motor | Y |
| Level | Y |
| Painting mode | Bi-directional |
| Ultrasonic sensors | 2pcs |
| Performance configuration | |
| Language | English |
| Auto blank skip | Y |
| Ink supply mode | Negative pressure auto ink supply |
| Color matching treatment | Auto |
| Ink use | Special water based ink |
| Surface treatment after printing | Water based varnish |
| Integrated voltage stabilizer | Y |
| Ink Heating | Y |
| Software | Professional Printer Maintop Software, ZKMC output software |
| Computer system | Windows XP, win7, win8, win10 |
| Packing | 1 plywood packing for standard model of machine, machine and inks in 1 box, total gross weight ~220kg, box dimension ~237x81x68cm |
| Remarks | The above data for reference only, may change due to continuous product/model upgrading. |
Fast business hotels, restaurants and other commercial places, hand-painted need a lot of time, the wrong pattern is very troublesome, the cost of time is greater. But ZKMC 3d inkjet wall printer is just like an office printer, do not limit any pattern, even if the wrong print can be quickly changed, save more time, cost, effots and with automatic operation.
