| Place of Origin: | Beijing, China |
| Brand Name: | Zhongkemeichuang |
| Certification: | CE for machine, RoHS for ink |
| Model Number: | ZK-Q8 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 plywood box |
| Delivery Time: | 5-10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets/month |
| Name: | High Accuracy 3d Intelligent Vertical Wall Printer For Direct Wall Painting | Unique Ink Heating System: | Ensure Machine Work In Cold Weather |
|---|---|---|---|
| 2 Ultrasonic Sensors: | Auto Wall Flatness Detection | Printing Resolution: | From 720dpi... Upto 2880dpi |
| Printing Speed: | Multispeed Adjustable | Application: | Offices |
| High Light: | Intelligent 3d Wall Printing Machine,Multispeed 3d Wall Printing Machine,3d Wall Printing Machine RoHS |
||

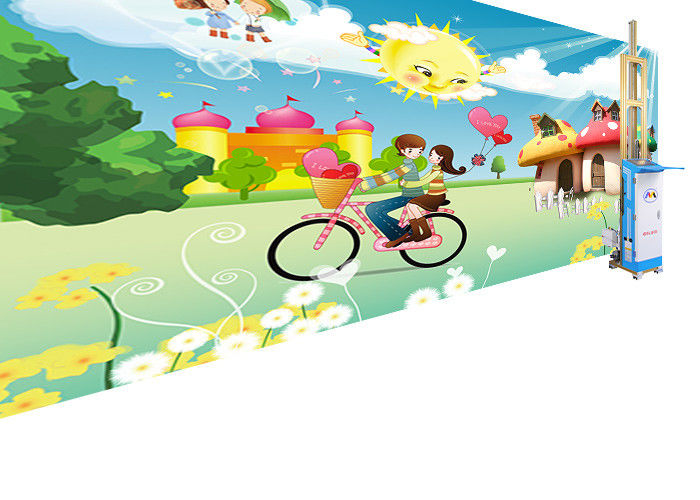

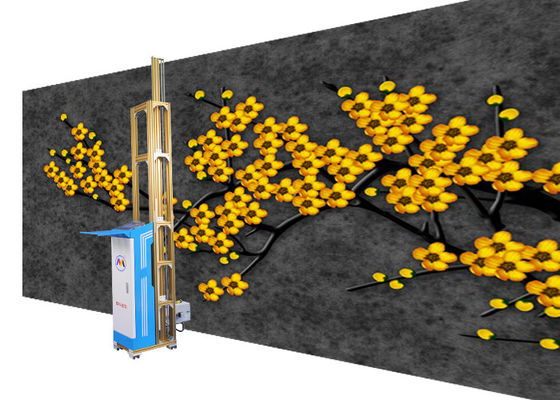

High Accuracy 3d Intelligent Vertical Wall Printer For Direct Wall Painting
Our vertical wall printer advantages:
1. Large printing area
The net picture printing height can be decided freely, up to 2.7 meters, and no limit for width.
2. Easy to use
The vertical wall printer is equipped with a large LCD touch screen, its operation is very simple, and people could easily use it without any bankground needed
3. Low cost
One person can operate the vertical wall printer smoothly, no large team need for project printing.
| Basic parameters | |
| Data transmission mode | USB |
| L*W*H (main body from ground) | Standard model: 70*31*239cm (the other models: 259cm, 329cm) |
| Printhead | Auto cleaning |
| Ink consumption | 8-12ml/m2 (less than USD1/m2) |
| Ink base color | Dual 4 colors (CMYK, CMYK), use special water based ink |
| Painting precision | From 720DPI, upto 2880DPI |
| Painting direction | Vertical |
| Painting speed | Multispeed adjustable, ~1-10m2/h |
| Voltage/power | 90-246V/380W,47-63HZ |
| Noise | Standy<20dBA, painting <50dBA |
| Storage/Operation | -10℃-35℃(59°F-95°F) |
| 10%-70% relative humidity, in non-condensation state | |
| Surface tracing | Hyperbolic banner sensors, two-way induction up and down |
| Machine configuration | |
| X axis guide | 5m rails |
| Y axis guide | Standard model: 219cm(the other models: 239cm, 309cm) |
| Z axis guide | 15cm |
| Display screen | 7’’ LCD, touch screen |
| Spay distance | 0.5-1cm |
| X axis effective stroke | 470cm |
| Y axis effective stroke | Standard model: 180cm (the other models: 200cm, 270cm) |
| Z axis effective stroke | 10cm |
| Synchro belt | 1pc |
| Drive rack | 5pcs |
| Net picture print height | Standard 1.8m (other models: 2.0m, 2.7m), unlimited width |
| Machine weight | 62kg |
| Lead rails weight | 10kg*5pcs |
| Applied wall | Inside & outside putty wall, latex wall, white wall, diatom mud wall, shell powder wall, wooden wall, paper, brick wall, canvas, etc. |
| Control configuration | |
| Ink container capacity | 400ml |
| Printhead cleaning | Auto |
| Pump test | Y |
| Stepper motor | Y |
| Level | Y |
| Painting mode | Bi-directional |
| Ultrasonic sensors | 2pcs |
| Performance configuration | |
| Language switch | Chinese, English |
| Auto skip blank | Y |
| Intelligent lifting | Support |
| Ink supply mode | Negative pressure auto ink supply |
| Color matching treatment | Auto |
| Ink use | Water based ink |
| Surface treatment | Water based varnish |
| Integrated voltage stabilizer | Y |
| Ink Heating | Y |
| Software | Professional Printer Maintop Software, ZKMC output software |
| Computer system | Windows XP, win7, win8, win10 |
| Remarks | The above data for reference only, may change due to continuous product/model upgrading. |
Our vertical wall printer related patents and patent inquiry code
1. Design patent certificate drawing machine (multifunctional track type) ZL201530156369.7
2. Utility model patent certificate a multifunctional rail type wall painting machine with infinite picture length
ZL201520297228.1
3. A constant temperature heating device for ink cartridge ZL201820579183.0
4. An automatic nozzle tracking device for wall painting machine ZL201820597118.0
5. Nozzle vertical movement device ZL201820578600. X
6. A detachable base of wall painting machine ZL201820578621.1
7. A control cabinet for wall painting machine ZL201820579129.6
FAQ
1. How many basic colors does the printer uses?
Four colors, CMYK: cyan, magenta, yellow and black.
1. The process of installing the printer in the field - how long it will take
It takes about 10 minutes to assemble our vertical wall printer.
2. What kind of ink does the printer use? Where can I buy it?
The ink on this vertical wall printer is our custotmized water based ink, because after our adjustment, it is very suitable for the printing process of our machine, and the printed pictures are very good. You can contact us for ink purchase.
3. Do you need a flat surface for the vertical wall printer to move along the wall?
Without the need for very flat walls, our vertical wall printer can also print high-quality pictures on slightly uneven surfaces.
4. Is the machine moving on the runway or is the track moving?
It is the vertical wall printer that moves on the track, not the track that moves.
