| Place of Origin: | Beijing, China |
| Brand Name: | Zhongkemeichuang |
| Certification: | CE for machine, RoHS for ink |
| Model Number: | ZK-Q8 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 plywood box |
| Delivery Time: | 5-10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets/month |
| Local Service Location: | 3d Mural Printing Automatic 2880dpi Accuracy Vertical Wall Printing Machine | Unique Ink Heating System: | No Problem For Machine Work In Cold Weather |
|---|---|---|---|
| 2 Ultrasonic Sensors: | Tracking Wall Surface Automatically | Ink Color: | Multi Color Automatic Matching |
| Printing Resolution: | Accuracy Up To 2880dpi | Integrated Voltage Regulator: | Regulate The Stability Of Voltage Effectively |
| High Light: | 2880dpi Vertical Wall Printing Machine,3d Printer For Wall Painting 2880dpi,rohs Vertical Wall Printing Machine |
||

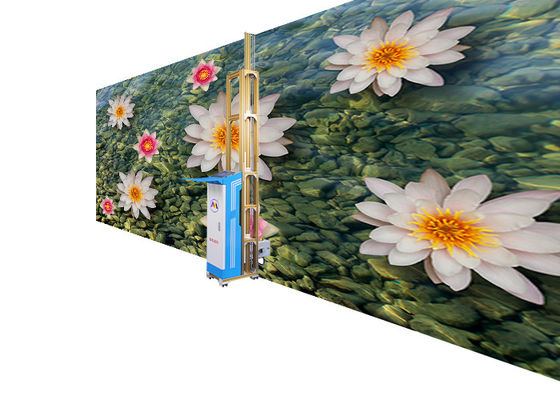

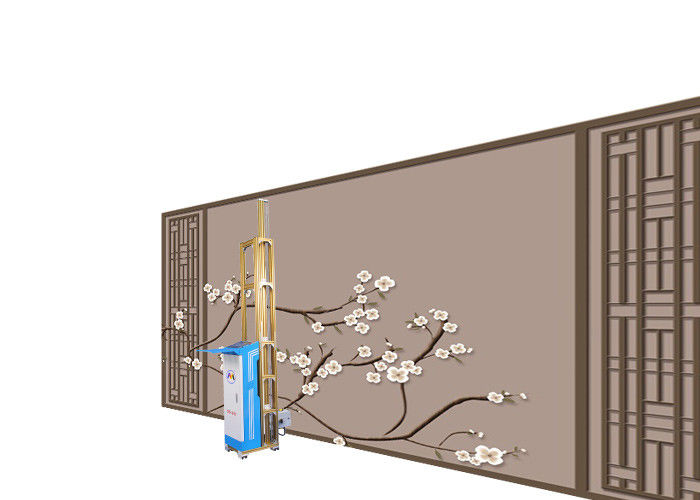

3d Mural Printing Automatic 2880dpi Accuracy Vertical Wall Printing Machine
ZKMC Vertical Wall Printing Machine, leads wall printing in China and even the global trend of wall decoration, but also become all kinds of people and enterprises and institutions, factory workshops, leisure and entertainment occasions for wall decoration preferred partner. Under the influence of the situation of global integration, the countries of the world have also carried out in-depth exchanges in economic, political and cultural fields. Foreign excellent elements can enter China, our local excellent culture can also go international.
ZKMC after sales service includes but not limited to video technical support, online support, spare parts, field maintenance, etc.
From ancient times to the present, wall painting is a very sought after art exhibition form. With intelligent means to the wall painting art to a new height, so that the gener al public can get up close and personality, fashion, elegance, trendy art form. It can be seen that the future of ZKMC Vertical Wall Printing Machine is bound to be more customers love, our brand development prospects is better.
| Basic parameters | |
| Data transmission mode | USB |
| L*W*H (main body from ground) | Standard model: 70*31*239cm (the other models: 259cm, 329cm) |
| Printhead | Auto cleaning |
| Ink consumption | 8-12ml/m2 (less than USD1/m2) |
| Ink base color | Dual 4 colors (CMYK, CMYK), use special water based ink |
| Painting precision | From 720DPI, upto 2880DPI |
| Painting direction | Vertical |
| Painting speed | Multispeed adjustable, ~1-10m2/h |
| Voltage/power | 90-246V/380W,47-63HZ |
| Noise | Standy<20dBA, painting <50dBA |
| Storage/Operation | -10℃-35℃(59°F-95°F) |
| 10%-70% relative humidity, in non-condensation state | |
| Surface tracing | Hyperbolic banner sensors, two-way induction up and down |
| Machine configuration | |
| Display screen | 7’’ LCD, touch screen |
| Spay distance | 0.5-1cm |
| Y axis effective stroke | Standard model: 180cm (the other models: 200cm, 270cm) |
| Net picture print height | Standard 1.8m (other models: 2.0m, 2.7m), unlimited width |
| Machine weight | 62kg |
| Lead rails weight | 10kg*5pcs |
| Applied wall | Inside & outside putty wall, latex wall, white wall, diatom mud wall, shell powder wall, wooden wall, paper, brick wall, canvas, etc. |
| Control configuration | |
| Ink container capacity | 400ml |
| Printhead cleaning | Auto |
| Pump test | Y |
| Stepper motor | Y |
| Level | Y |
| Painting mode | Bi-directional |
| Ultrasonic sensors | 2pcs |
| Performance configuration | |
| Language switch | Chinese, English |
| Auto skip blank | Y |
| Intelligent lifting | Support |
| Ink supply mode | Negative pressure auto ink supply |
| Color matching treatment | Auto |
| Ink use | Water based ink |
| Surface treatment | Water based varnish |
| Ink Heating | Y |
| Integrated voltage stabilizer | Y |
| Software | Professional Printer Maintop Software, ZKMC output software |
| Computer system | Windows XP, win7, win8, win10 |
FAQ
Q: Why the machine can only print up to 1.7m or 1.8m?
A: For standard model, the assembled machine height (from ground) is 2.39m for net picturing painting height of 1.8m of water-based ink machine (1.7m of UV ink machine). It is the most suitable height, which can ensure our machine to be erected indoor. Additionally, any heights can be customized based on our customer's special requirement.
Q: Why do we use special water-based ink or UV ink?
A: It's our customized ink with advantages below
1. Easy absorbed by the wall completely
2. Show perfect color effect on the wall
3. It would not cause the printhead block, and corrode the ink system
4. RoHS certification, satisfy the public environmental protection requirements
Kind reminding: in order to keep the final painting of water-based ink pictures for longer, we suggest our customer to do a coating using the crystal water varnish after the painting dry. By doing this, the final painting is not only waterproof, but also sunscreen and wear resistance. It would last for over 10 years indoor and about 5 years outdoor.
Q: Is it complicated to operate the wall printing machine?
A: No, it is automatic. Everyone can master all of skills within 1 or 2 days. No need of any professional knowledge or background.
