| Place of Origin: | Beijing, China |
| Brand Name: | Zhongkemeichuang |
| Certification: | CE for machine, RoHS for ink |
| Model Number: | ZK-Q8 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 plywood box |
| Delivery Time: | 5-10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets/month |
| Name: | Zkmc High Speed Direct To Wall Automatic Mural Printing 3d Wall Inkjet Printer | Painting Dimension: | 1.8-2.7m High Based On Order, Free Width |
|---|---|---|---|
| Touch Screen: | 7'' LCD | Applicable Industries: | Hotels, Garment Shops, Building Material Shops |
| Painting Direction: | Vertical | Warranty: | 1 Year Warranty (ink & Printhead Excluded) |
| High Light: | 7inch Direct To Wall Inkjet Printer,Mural Inkjet Printer 1 Year Warranty |
||

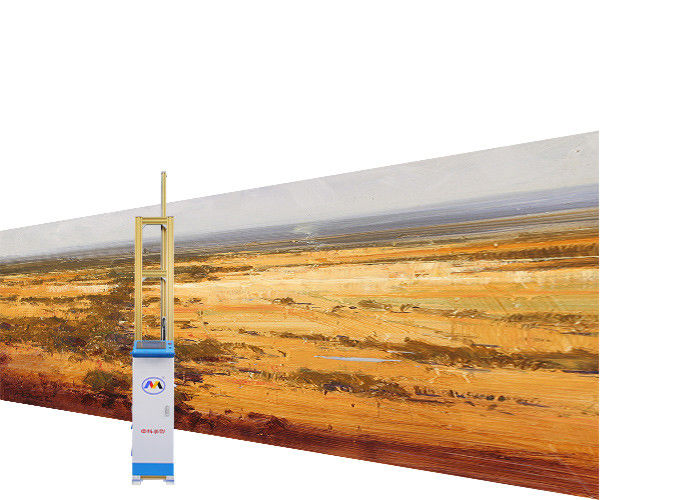

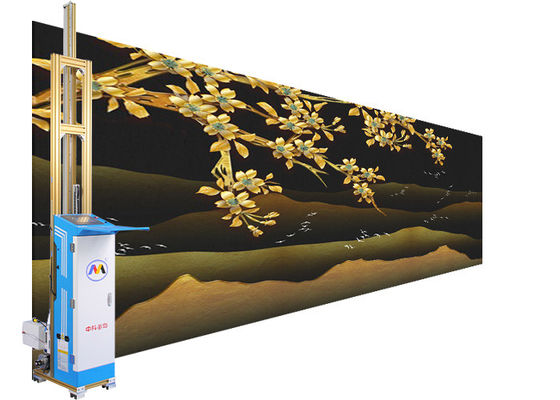

Zkmc High Speed Direct To Wall Automatic Mural Printing 3d Wall Inkjet Printer
ZKMC 3D Wall Inkjet Printer has completely overcome the shortcomings of the traditional hand-painted technology, such as strong professionalism, need to have the skill base, long time-consuming, high cost, small scope of application and so on. It is the irreversible change brought by ZKMC wall painting technology. The machine can be widely used in hotels, restaurants, music halls, schools, kindergartens, home television background wall, image wall, etc. for direct mural printing.
| Basic parameters | |
| Data transmission mode | USB |
| L*W*H (main body from ground) | Standard model: 70*31*239cm (the other models: 259cm, 329cm) |
| Printhead | Auto cleaning |
| Ink consumption | 8-12ml/m2 (less than USD1/m2) |
| Ink base color | Dual 4 colors (CMYK, CMYK), use special water based ink |
| Painting precision | From 720DPI, upto 2880DPI |
| Painting direction | Vertical |
| Painting speed | Multispeed adjustable, ~1-10m2/h |
| Voltage/power | 90-246V/380W,47-63HZ |
| Noise | Standy<20dBA, painting <50dBA |
| Storage/Operation | -10℃-35℃(59°F-95°F) |
| 10%-70% relative humidity, in non-condensation state | |
| Surface tracing | Hyperbolic banner sensors, two-way induction up and down |
| Machine configuration | |
| X axis guide | 5m rails |
| Y axis guide | Standard model: 219cm (other models: 239cm, 309cm) |
| Z axis guide | 15cm |
| Display screen | 7’’ LCD, touch screen |
| Spay distance | 0.5-1cm |
| X axis effective stroke | 470cm |
| Y axis effective stroke | Standard model: 180cm (other models: 200cm, 270cm) |
| Z axis effective stroke | 10cm |
| Synchro belt | 1pc |
| Drive rack | 5pcs |
| Net picture print height | Standard 1.8m (other models: 2.0m, 2.7m), unlimited width |
| Machine weight | 62kg |
| Lead rails weight | 10kg/piece*5pcs, total 50kg |
| Applied wall | Inside & outside putty wall, latex wall, white wall, diatom mud wall, shell powder wall, paper, brick wall, normal white wall, canvas, etc. |
| Control configuration | |
| Ink container capacity | 400ml |
| Printhead cleaning | Auto |
| Pump test | Y |
| Stepper motor | Y |
| Level | Y |
| Painting mode | Bi-directional |
| Ultrasonic sensors | 2pcs |
| Performance configuration | |
| Language | English |
| Auto blank skip | Y |
| Ink supply mode | Negative pressure auto ink supply |
| Color matching treatment | Auto |
| Ink use | Special water based ink |
| Surface treatment after printing | Water based varnish |
| Integrated voltage stabilizer | Y |
| Ink Heating | Y |
| Software | Professional Printer Maintop Software, ZKMC output software |
| Computer system | Windows XP, win7, win8, win10 |
| Packing | 1 plywood packing for standard model of machine, machine and inks in 1 box, total gross weight ~220kg, box dimension ~237x81x68cm |
| Remarks | The above data for reference only, may change due to continuous product/model upgrading. |
1. Stable, high efficiency, ZK-Q8 with dual-fiber driver, original integrated circuit chips, add integrated voltage regulator and ink heating program, encoded motor, all those improvement make our printer more stable and high efficiency.
2. Train like lead rails, 5pcs *1 meter, save space, transport and reconnect easily,
3. Micro-piezoelectric printhead, the ink jet is much smoothly, quickly, dyeing is more accurate, delicate, bright and clearly.
4. Intelligent lift platform,adjust the machine height according to the different wall heights.
5. High resolution, printing resolution can reach upto 2880dpi.
6. Automatical printhead cleansing and the uneven wall detecting.
7. CE certificate for wall printer, Rohs for ink
8. Warranty, one year warranty (ink and printhead excluded) and lifetime maintenance
