4.3inch Lcd Touch Screen Wall Mural Printing Machine 2700mm Photo Painting

4.3inch Lcd Touch Screen Wall Mural Printing Machine 2700mm Photo Painting

  • 4.3inch Lcd Touch Screen Wall Mural Printing Machine 2700mm Photo Painting
  • 4.3inch Lcd Touch Screen Wall Mural Printing Machine 2700mm Photo Painting
4.3inch Lcd Touch Screen Wall Mural Printing Machine 2700mm Photo Painting
Product Details:
Place of Origin: Beijing, China
Brand Name: Zhongkemeichuang
Certification: CE for machine, RoHS for ink
Model Number: ZK-Q7PLUS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: 1 plywood box
Delivery Time: 5-10 work days
Payment Terms: T/T
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Name: Unique Ink Heating 2700mm Photo Painting Inkjet Vertical Wall Printing Machine Applicable Industries: Manufacturing Plant, Machinery Repair Shops
After Warranty Service: Video Technical Support, Online Support Display Screen: LCD 4.3'' Touch Screen
Y Axis Guide: 309cm (other Models: 219cm, 239cm) X Axis Guide: 5m Rails
High Light:

4.3inch Lcd Wall Mural Printing Machine

,

Wall Mural Printing Machine 2700mm



Unique Ink Heating 2700mm Photo Painting Inkjet Vertical Wall Printing Machine

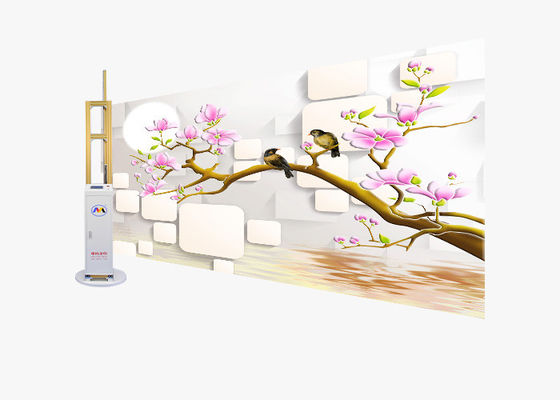

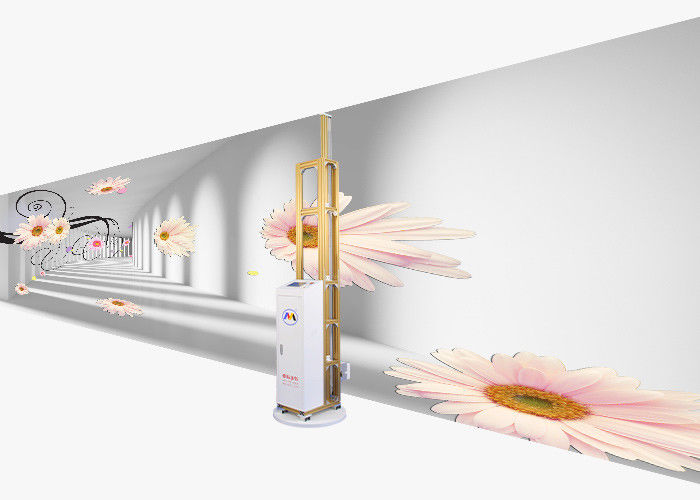

ZKMC vertical wall printing machine uses advanced digital printing technology, could DIY the wall freely, and create a wonderful environment at home or in your working area. Compared with the manual drawing, the vertical wall printing machine is highly welcomed for high efficiency, easy operation, and low cost.



Basic parameters
Data transmission mode USB
L*W*H (main body from ground) Standard model: 70*31*239cm (the other models: 259cm, 329cm)
Printhead Auto cleaning
Ink consumption 8-12ml/m2 (less than USD1/m2)
Ink base color Dual 4 colors (CMYK, CMYK), use special water based ink
Painting precision From 720DPI, upto 2880DPI
Painting direction Vertical
Painting speed Multispeed adjustable, ~1-7m2/h
Voltage/power 90-246V/380W,47-63HZ
Noise Standy<20dBA, painting <50dBA
Storage/Operation -10℃-35℃(59°F-95°F)
10%-70% relative humidity, in non-condensation state
Surface tracing Hyperbolic banner sensors, two-way induction up and down
Machine configuration
X axis guide 5m rails
Y axis guide Standard model: 219cm (other models: 239cm, 309cm)
Z axis guide 15cm
Display screen 4.3’’ LCD, touch screen
Spay distance 0.5-1cm
X axis effective stroke 470cm
Y axis effective stroke Standard model: 180cm (other models: 200cm, 270cm)
Z axis effective stroke 10cm
Synchro belt 1pc
Drive rack 5pcs
Net picture print height Standard 1.8m (other models: 2.0m, 2.7m), unlimited width
Machine weight 62kg
Lead rails weight 10kg/piece*5pcs, total 50kg
Applied wall Inside & outside putty wall, latex wall, white wall, diatom mud wall, shell powder wall, paper, brick wall, normal white wall, canvas, etc.
Control configuration
Ink container capacity 400ml
Printhead cleaning Auto
Pump test Y
Stepper motor Y
Level Y
Painting mode Bi-directional
Ultrasonic sensors 2pcs
Performance configuration
Language English
Auto blank skip N
Ink supply mode Negative pressure auto ink supply
Color matching treatment Auto
Ink use Special water based ink
Surface treatment after printing Water based varnish
Integrated voltage stabilizer Y
Ink Heating Y
Software Professional Printer Maintop Software, ZKMC output software
Computer system Windows XP, win7, win8, win10
Packing 1 plywood packing for standard model of machine, machine and inks in 1 box, total gross weight ~220kg, box dimension ~237x81x68cm
Remarks The above data for reference only, may change due to continuous product/model upgrading.



4.3inch Lcd Touch Screen Wall Mural Printing Machine 2700mm Photo Painting 04.3inch Lcd Touch Screen Wall Mural Printing Machine 2700mm Photo Painting 14.3inch Lcd Touch Screen Wall Mural Printing Machine 2700mm Photo Painting 24.3inch Lcd Touch Screen Wall Mural Printing Machine 2700mm Photo Painting 34.3inch Lcd Touch Screen Wall Mural Printing Machine 2700mm Photo Painting 4



FAQ



1. What type of files can I print with?

Support JPG, TIFF.

2. What is the print height?

The picture print height is 180-270cm based on our machine sizes you ordered, no width limit.

3. Durability of the ink – is it for interior or exterior applications?

It’s indoor can be kept for ~10 years without fading, and the outdoor can be kept for ~5 years without fading.

4. What materials can I print on?

Putty wall, latex paint wall, brick wall, diatom mud wall, shell powder wall, paper, etc.

ZKMC UV-wall printer can also print on non-absorbent surfaces such as: glass, ceramic tiles, metal.
