| Place of Origin: | Beijing, China |
| Brand Name: | Zhongkemeichuang |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 plywood box |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 sets/month |
| Name: | Height Customizable Universal Wheels Vertical Format Digital Modern Art Digital Wall Printer Machine | Machine Type: | UV Wall Printer (can Be Water Ink Printer Based On Demand) |
|---|---|---|---|
| Cooling System: | Machine Uses Fan Cooling System | Rails: | Vertical And Horizontal Both Foldable |
| Printhead Qty: | 1 Or 2 Based On Demand, Auto Cleaning | L*W*H (main body from ground): | Standard Model: L70*W31*H239cm (height Customizable). Height 1.4m After Folding. |
| High Light: | height customizable digital wall printer,universal wheels digital wall printer,zkmc wall digital printing machine |
||

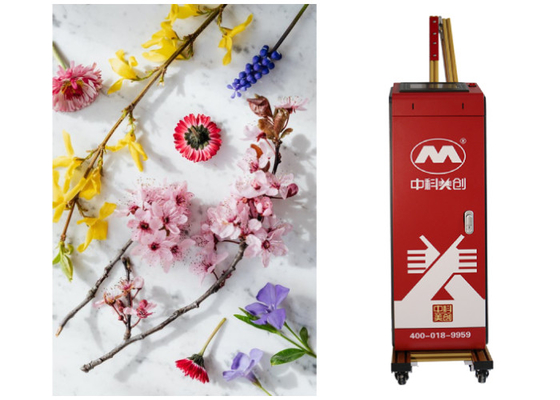

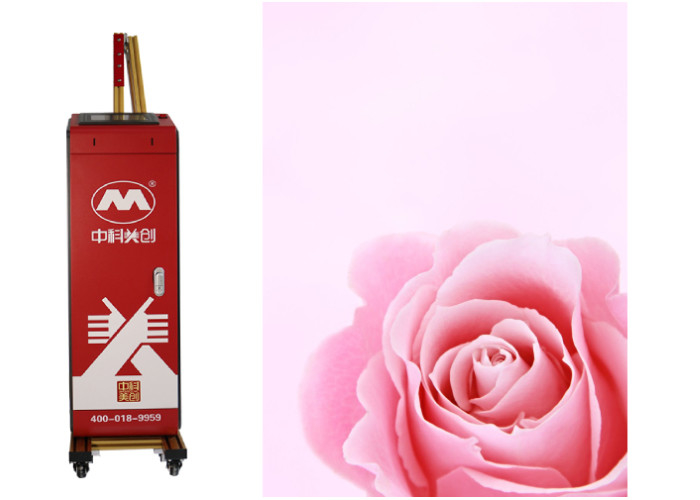

Height Customizable Universal Wheels Vertical Format Digital Modern Art Digital Wall Printer Machine
ZKMC has 9 wall printer related patents since 2013. We mastered the key technology of wall printer production. And could customize the machine according to customer's requirement. Either water based ink CMYK 4 colors machine, or CMYK+WWWW 2-heads UV ink machine to satisfy customers' different printing needes.
2021 new developed products with unique foldable printhead, vertical rail and horizontal rails, with wheel under the machine which is very easy for moving machine from different place to another.
| Basic parameters | |
| Data transmission mode | USB |
| L*W*H (main body from ground) | Standard model: 70*31*239cm (height customizable). Height 1.4m after folding. |
| Printhead | Auto cleaning, printhead foldable if 1 printhead machine |
| Ink consumption | 8-12ml/m2 (less than USD1/m2) |
| Ink base color | CMYK, use special uv ink (can be 2-printead which's CMYKW 5 colors) |
| Painting precision | Up to 2880DPI |
| Painting speed | Multispeed adjustable, ~1-10m2/h |
| Voltage/power | 90-246V/380W,47-63HZ |
| Noise | Standy<20dBA, painting <50dBA |
| Storage/Operation | -10℃-35℃(59°F-95°F) |
| 10%-70% relative humidity, in non-condensation state | |
| Surface tracing | Hyperbolic banner sensors, two-way induction up and down |
| Machine configuration | |
| X axis guide | 5m rail |
| Y axis guide | Standard model: 219cm (height customizable) |
| Z axis guide | 15cm |
| Display screen | 7’’ LCD, touch screen |
| Spay distance | 0.5-1cm |
| X axis effective stroke | 470cm |
| Y axis effective stroke | Standard model: 170cm (height customizable) |
| Z axis effective stroke | 10cm |
| Synchro belt | 1pcs |
| Drive rack | 5pcs |
| Net picture print height | Standard 1.7m (height customizable), unlimited width |
| Machine weight | 62kg |
| Lead rails weight | 10kg*5pcs, rail foldable |
| Applied wall | Inside & outside putty wall, latex wall, white wall, diatom mud wall, shell powder wall, wooden wall, paper, brick wall, canvas, etc. |
| Control configuration | |
| Ink container capacity | 400ml |
| Printhead cleaning | Auto |
| Pump test | Y |
| Stepper motor | Y |
| Level | Y |
| Painting mode | Bi-directional |
| Ultrasonic sensors | 2pcs |
| Performance configuration | |
| Language switch | Chinese, English |
| Auto skip blank | Y |
| Intelligent lifting | Support |
| Ink supply mode | Negative pressure auto ink supply |
| Color matching treatment | Auto |
| Ink use | Special UV ink |
| Integrated voltage stabilizer | Y |
| Ink Heating | Y |
| Software | Professional Printer Maintop Software, ZKMC output software |
| Computer system | Windows XP, win7, win8, win10 |
| Remarks | The above data for reference only, may change due to continuous product/model upgrading. |
ZKMC Wall Printer is widely applied to indoor and outdoor wall decoraton fields. In the past two or three years, it's very common that many entrepreneurs choose to start their own business to buy ZKMC wall printing machine. So far, it's still very hot business in many countries.
ZKMC uv wall printer painting costs are low, less than USD 1 per square meter. If customer only charge about USD 10/m2. It' d gain 10 times of return. Compared with the cost and profit return it is very considerable, so the vertical wall printer market prospects are very delighted.
