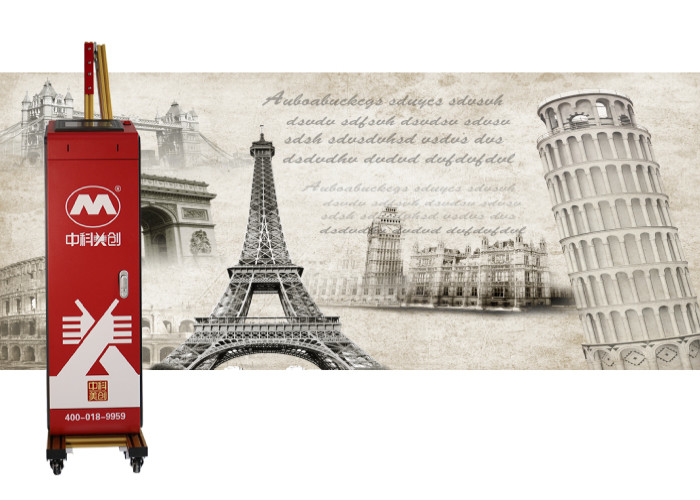

Smart Uv 3d Vertical Wall Printing Machine 1.4m Height

Smart Uv 3d Vertical Wall Printing Machine 1.4m Height

Smart Uv 3d Vertical Wall Printing Machine 1.4m Height
Smart Uv 3d Vertical Wall Printing Machine 1.4m Height
Smart Uv 3d Vertical Wall Printing Machine 1.4m Height
Product Details:
Place of Origin: Beijing, China
Brand Name: Zhongkemeichuang
Certification: RoHS for ink
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: 1 plywood box
Delivery Time: 5-10 work days
Payment Terms: T/T
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Name: Foldable Printhead Foldable Horizontal Rail Foldable Vertical Rail Smart Printing Uv Vertical Wall Printer Printhead: 1 Or 2, 1-head Foldable
Ink Used: Water Based Ink Or Uv Ink Based On Customer's Requiement Machine Height: Standard Machine1.4m After Folding. Machine Height Customizable
Software Used: Maintop For Picture Size Editing, ZKMC Output Software For Printing Vertical Rail: Foldable Vertical Rail, Height Customizable
High Light:

uv 3d vertical wall printing machine

,

smart 3d vertical wall printing machine

,

1.4m height wall uv printer


Foldable Printhead Foldable Horizontal Rail Foldable Vertical Rail Smart Printing Uv Vertical Wall Printer

So far, our wall printers've been exported to North America, Europe, Aferica, Middle East, Latin America. Our sole agents have office in DuBai, Cario, Mosow for providing local services effectively to customers. If you're interested in dealship except Russia, Belarus, Egypt and some other Arabic speaking countries, contact us for cooperation possibilites to win a prosperous 2022.


ZKMC wall printer is a multi-functional wall printing machine, suitable for many materials, to create a modern trend home, the effect is obvious, and the price also has a certain advantage, won praise and pursuit of people, the market praise. In many projects, the price of ZKMC wall printing machine is very popular, the brand of high-quality environmental protection products, become the choice of many consumers, achieved good results, market visibility has also been very good promotion, has become a well-deserved leader in the industry.


Basic parameters
Data transmission mode USB
L*W*H (main body from ground) Standard model: 70*31*239cm (height customizable). Height 1.4m after folding.
Printhead Auto cleaning, 1-printhead foldable
Ink consumption 8-12ml/m2 (less than USD1/m2)
Ink base color CMYK, use special water based ink
Painting precision Up to 2880DPI
Painting speed Multispeed adjustable, ~1-10m2/h
Voltage/power 90-246V/380W,47-63HZ
Noise Standy<20dBA, painting <50dBA
Storage/Operation -10℃-35℃(59°F-95°F)
  10%-70% relative humidity, in non-condensation state
Surface tracing Hyperbolic banner sensors, two-way induction up and down
Machine configuration
X axis guide 5m rail
Y axis guide Standard model: 219cm (height customizable)
Z axis guide 15cm
Display screen 7’’ LCD, touch screen
Spay distance 0.5-1cm
X axis effective stroke 470cm
Y axis effective stroke Standard model:160cm (height customizable)
Z axis effective stroke 10cm
Synchro belt 1pcs
Drive rack 5pcs
Net picture print height Standard 1.6m (height customizable), unlimited width
Machine weight 62kg
Lead rails weight 10kg*5pcs, rail foldable
Applied wall Ceramic tiles, canvas, tiles, glass, inside & outside putty wall, latex wall, white wall, diatom mud wall, shell powder wall, wooden wall, paper, brick wall, canvas, etc.
Control configuration
Ink container capacity 400ml
Printhead cleaning Auto
Pump test Y
Stepper motor Y
Level Y
Painting mode Bi-directional
Ultrasonic sensors 2pcs
Performance configuration
Language switch Chinese, English
Auto skip blank Y
Intelligent lifting Support
Ink supply mode Negative pressure auto ink supply
Color matching treatment Auto
Ink use Special uv ink
Integrated voltage stabilizer Y
Ink Heating Y
Software Professional Printer Maintop Software, ZKMC output software
Computer system Windows XP, win7, win8, win10
Remarks The above data for reference only, may change due to continuous product/model upgrading.



The price of ZKMC wall printing machine is cheap, it is the industry leader, by virtue of its own advantages, occupied a large market, attracted the attention of countless entrepreneurs.

Whether for consumers or investors, ZKMC wall painting machine is a very trustworthy project, it has a great advantage in terms of price, favored by people, the demand is increasing, investment prospects are considerable, trustworthy.

ZKMC Wall Printer is a very good entrepreneurial project, it is highly popular in the industry, good reputation, in the face of such a good opportunity, if you want to know more about the brand situation, do not miss.

Smart Uv 3d Vertical Wall Printing Machine 1.4m Height 0

Smart Uv 3d Vertical Wall Printing Machine 1.4m Height 1Smart Uv 3d Vertical Wall Printing Machine 1.4m Height 2
Smart Uv 3d Vertical Wall Printing Machine 1.4m Height 3
Q&A

Q. Do you have any patents of wall printer?
A. We have 9 patents related on wall printing machine since 2013:
1. Nozzle vertical movement device (practical type)
2. Wall plotter control box (practical type)
3. Cartridge constant temperature heating device (practical type)
4. Wall plotter nozzle automatic tracking device (practical type)
5. Detachable wall plotter base (practical type)
6. Multifunctional guide rail wall plotter with unlimited screen length (practical type)
7. Automatic cleaning device for the nozzle of wall plotter (practical type)
8. 3D wall-mounted printer (design)
9. Multifunctional guide rail coating machine (appearance design)
