| Place of Origin: | Beijing, China |
| Brand Name: | Zhongkemeichuang |
| Certification: | RoHS for ink |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 plywood box |
| Delivery Time: | 5-10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets/month |
| Name: | ZKMC Foldable Printhead Bidirectional Automatic Painting 1.4m Folding Height Uv Vertical Wall Printer | Printhead: | Standard 1-printhead, Can Be 2 Based On Demand |
|---|---|---|---|
| Painting color: | 1-head CMYK (2-head CMYK+WWWW) | Vertical Rail: | Foldable, Standard 1.4m Height After Folding |
| Horizontal Rails: | 1 Pc 1m, Total 5m | Ultrasonic sensors: | 2 Pcs Sensors, Automatic Up And Down Surface Tracing |
| High Light: | bidirectional digital wall printing machine,1.4m digital wall printing machine,bidirectional vertical printer wall |
||

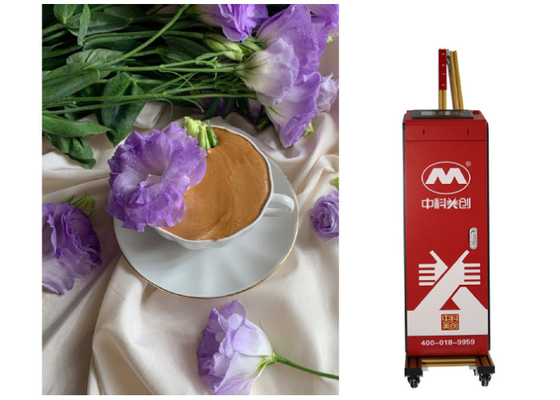

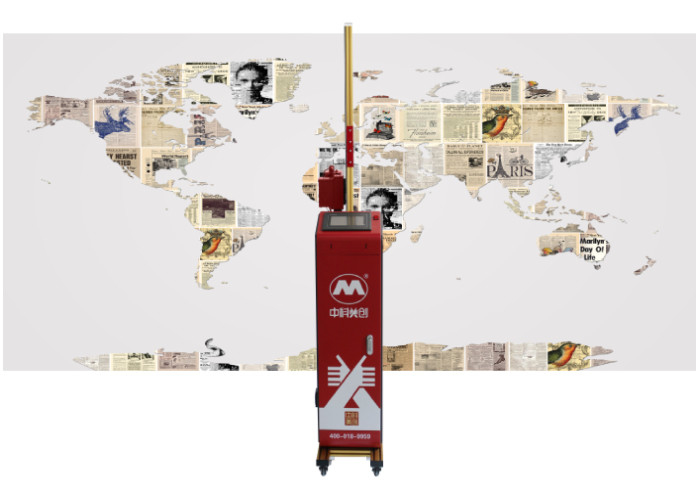

ZKMC Foldable Printhead Bidirectional Automatic Painting 1.4m Folding Height Uv Vertical Wall Printer
We have 9 patents on the wall printing machine as follows:
1. Nozzle vertical movement device (practical type)
2. Wall plotter control box (practical type)
3. Cartridge constant temperature heating device (practical type)
4. Wall plotter nozzle automatic tracking device (practical type)
5. Detachable wall plotter base (practical type)
6. Multifunctional guide rail wall plotter with unlimited screen length (practical type)
7. Automatic cleaning device for the nozzle of wall plotter (practical type)
8. 3D wall-mounted printer (design)
9. Multifunctional guide rail coating machine (appearance design)
Our machines are recommended by investors and brands authoritatively recommended by CCTV1, CCTV2, CCTV4, CCTV7, CCTV9, and CCTV10.
We’ve different printers to meet you needs. Our machine can be customized, attached water based ink CMYK 4 colors machine can be customized to CMYK 4 colors UV ink machine, can also have 2 printheads which has CMYKW 5 colors UV ink based on customer's demand. The machine has vertical rail foldable and non-fondable types according to customer’s model choice.
| Basic parameters | |
| Data transmission mode | USB |
| L*W*H (main body from ground) | Standard model: 70*31*239cm (machine total height 239cm of net picture printing height 1.7m). Height 1.4m after folding. |
| Printhead | Auto cleaning, printhead foldable |
| Ink consumption | 8-12ml/m2 (less than USD1/m2) |
| Ink base color | CMYK for 1-printhead, or CMYK+WWWW for 2-printhead, use special customized uv ink |
| Painting precision | Up to 2880DPI |
| Painting speed | Multispeed adjustable, ~1-10m2/h |
| Voltage/power | 90-246V/380W,47-63HZ |
| Noise | Standy<20dBA, painting <50dBA |
| Storage/Operation | -10℃-35℃(59°F-95°F) |
| 10%-70% relative humidity, in non-condensation state | |
| Surface tracing | Hyperbolic banner sensors, two-way induction up and down |
| Machine configuration | |
| X axis guide | 5m rail |
| Y axis guide | Standard model: 219cm, height customizable |
| Z axis guide | 15cm |
| Display screen | 7’’ LCD, touch screen |
| Spay distance | 0.5-1cm |
| X axis effective stroke | 470cm |
| Y axis effective stroke | Standard model: 170cm,customizable |
| Z axis effective stroke | 10cm |
| Synchro belt | 1pcs |
| Drive rack | 5pcs |
| Net picture print height | Standard 1.7m,(height customizable), unlimited width |
| Machine weight | 62kg |
| Lead rails weight | 10kg*5pcs, rail foldable |
| Applied materials | Metal, pvc, glass, putty wall, latex wall, white wall, diatom mud wall, shell powder wall, wooden wall, paper, brick wall, canvas, etc. |
| Control configuration | |
| Ink container capacity | 400ml per piece |
| Printhead cleaning | Auto |
| Pump test | Y |
| Stepper motor | Y |
| Level | Y |
| Painting mode | Bi-directional |
| Ultrasonic sensors | 2pcs |
| Performance configuration | |
| Language switch | English |
| Auto skip blank | Y |
| Intelligent lifting | Support |
| Ink supply mode | Negative pressure auto ink supply |
| Color matching treatment | Auto |
| Ink use | Special customized uv ink |
| Integrated voltage stabilizer | Y |
| Ink Heating | Y |
| Software | Professional Printer Maintop Software, ZKMC output software |
| Computer system | Windows XP, win7, win8, win10 |
| Remarks | The above data for reference only, may change due to continuous product/model upgrading. |
ZKMC products development history:
*Jul 2013 model: zk-q 1st generation
*Jul 2013 model: zk-q 2nd generation
*Jul 2013 model: zk-q 3rd generation
*Mar 2014 model: zk-q 4th generation
*Oct 2014 model: zk-q 5th generation
*Mar 2015 model: zk-q 6th generation
*Sep 2016 model: zk-q 7th generation
*Nov 2017 model: zk-q 7plus generation
*Feb 2018 model: zk-q 8th generation
*Mar 2019 model: zk-q 9th generation
*Jun 2019 model: zk-q 10th generation
Contact: Teresa Wu
In charge of foreign trade
Telegram/WhatsApp/WeChat/Mobile: +8613011010380
Email: wallprinter@foxmail.com
Contact Person: Teresa Wu
Tel: +8613011010380
