| Place of Origin: | Beijing, China |
| Brand Name: | Zhongkemeichuang |
| Certification: | RoHS for ink |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 plywood box |
| Delivery Time: | 5-10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets/month |
| Name: | Foldable Printhead And Rails Vertical Wall Inkjet Printing Machine For Advertisement And Propaganda 3d Inkjet Printer | Printhead: | One Or Two According To Requirement |
|---|---|---|---|
| Ink Color: | CMYK For 1 Printhead (2-head CMYKW), Multicolor Auto Matching | Chasis Color: | Cutomizable |
| Voltage: | 90-246V, Fits Different Counties | Surface Tracing: | Hyperbolic Banner Sensors, Two-way Induction Up And Down |
| High Light: | propaganda mural printing machine,advertisement mural printing machine,bidirectional inkjet wall printer |
||

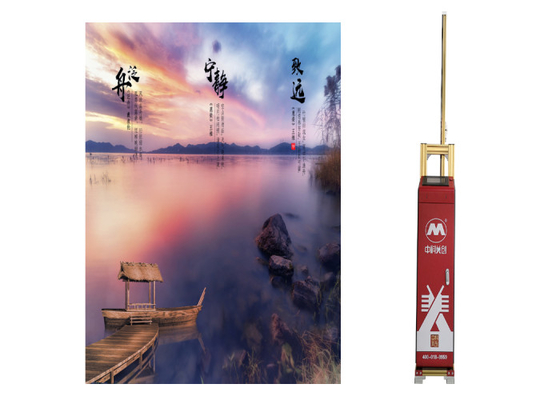

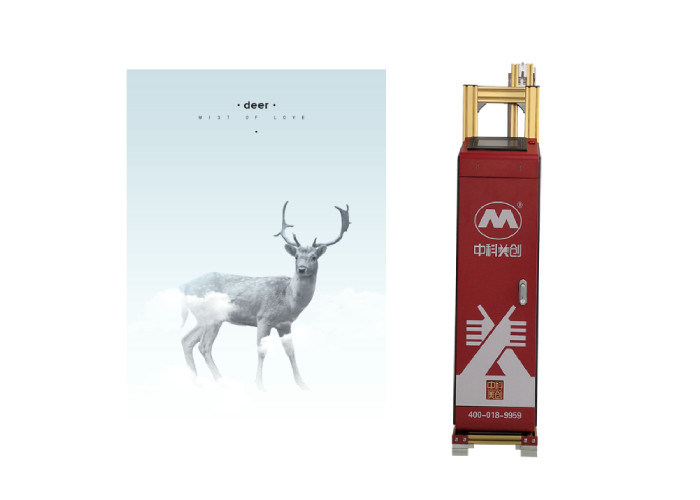

Foldable Printhead And Rails Vertical Wall Inkjet Printing Machine For Advertisement And Propaganda 3d Inkjet Printer
ZKMC provide 1-printhead or 2-printhead mural printing machine for choice. The wall printer has printing memory function while power off. Can continue to paint after power-on. It's laser position cross, machine printing resolution up to 2880dpi
ZKMC new lauched foldable rails and foldable printhead vertical wall printer is very popular in the market for easier transportation with omni-directional wheels under the machine.
| Basic parameters | |
| Data transmission mode | USB |
| L*M*H (main body from ground) | Standard model: 70*31*239cm (height customizable) |
| Printhead | Auto cleaning |
| Ink consumption | 8-12ml/m2 for 1-printhead (less than USD1/m2) |
| Ink base color | CMYK or CMYKW, use special customized uv ink |
| Painting precision | From 720DPI, upto 2880DPI |
| Painting direction | Vertical |
| Painting speed | Multispeed adjustable, ~1-10m2/h |
| Voltage/power | 90-246V/380W,47-63HZ |
| Noise | Standy<20dBA, painting <50dBA |
| Storage/Operation | -10℃-35℃(59°F-95°F) |
| 10%-70% relative humidity, in non-condensation state | |
| Surface tracing | Hyperbolic banner sensors, two-way induction up and down |
| Machine configuration | |
| X axis guide | 5m rails |
| Y axis guide | Standard model: 219cm (height customizable) |
| Z axis guide | 15cm |
| Display screen | 7’’ LCD, touch screen |
| Spay distance | 0.5-1cm |
| X axis effective stroke | 470cm |
| Y axis effective stroke | Standard model: 170cm for 1-printhead (height customizable) |
| Z axis effective stroke | 10cm |
| Synchro belt | 1pc |
| Drive rack | 5pcs |
| Net picture print height | Standard 1.7m for 1-printhead (height customizable), unlimited width |
| Machine weight | 62kg |
| Lead rails weight | 10kg*5pcs |
| Applied wall | Tile, glass, pvc, metal, putty wall, latex wall, white wall, diatom mud wall, shell powder wall, wooden wall, paper, brick wall, canvas, etc. |
| Control configuration | |
| Ink container capacity | 400ml/piece |
| Printhead cleaning | Auto |
| Pump test | Y |
| Stepper motor | Y |
| Level | Y |
| Painting mode | Bi-directional |
| Ultrasonic sensors | 2pcs |
| Performance configuration | |
| Language switch | English |
| Auto skip blank | Y |
| Intelligent lifting | Support |
| Ink supply mode | Negative pressure auto ink supply |
| Color matching treatment | Auto |
| Ink use | UV ink |
| Integrated voltage stabilizer | Y |
| Ink Heating | Y |
| Software | Professional Printer Maintop Software, ZKMC output software |
| Computer system | Windows XP, win7, win8, win10 |
| Remarks | The above data for reference only, may change due to continuous product/model upgrading. |
Over the past years, many of ZKMC customers became very successful businessmen because of applying our wall printer to fulfill their entrepreneurship. Additionally, we've exported to many countries, like American, European, Middle East, and Asian countries... In China's domestic market, our average sales quantity is ~50 sets monthly.
