| Place of Origin: | Beijing, China |
| Brand Name: | Zhongkemeichuang |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 plywood box |
| Supply Ability: | 100 sets/month |
| Name: | Digital Uv Printing Machine 3d Printer Wall Inkjet Printer Wall Painting Machine | Machine Size: | 70*31*239 (height 1.4m After Folding) |
|---|---|---|---|
| Printhead: | Printhead Can Be Rotated To Downward For 1 Printhead Machine | Foldable Rails: | Foldable Vertical And Horizontal Rails |
| Memory: | Powerful Off Memory Function | Auto Laser Positioning: | Y |
| High Light: | usb digital wall printing machine,multicolor digital wall printing machine,silent vertical printer wall |
||

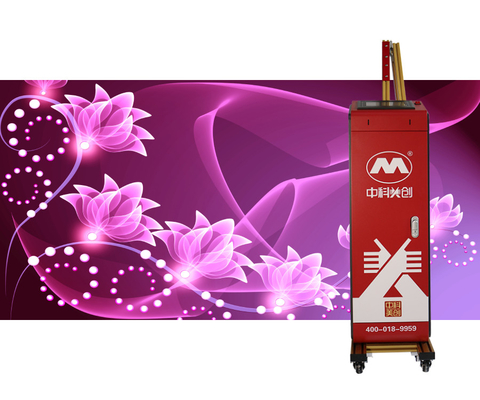

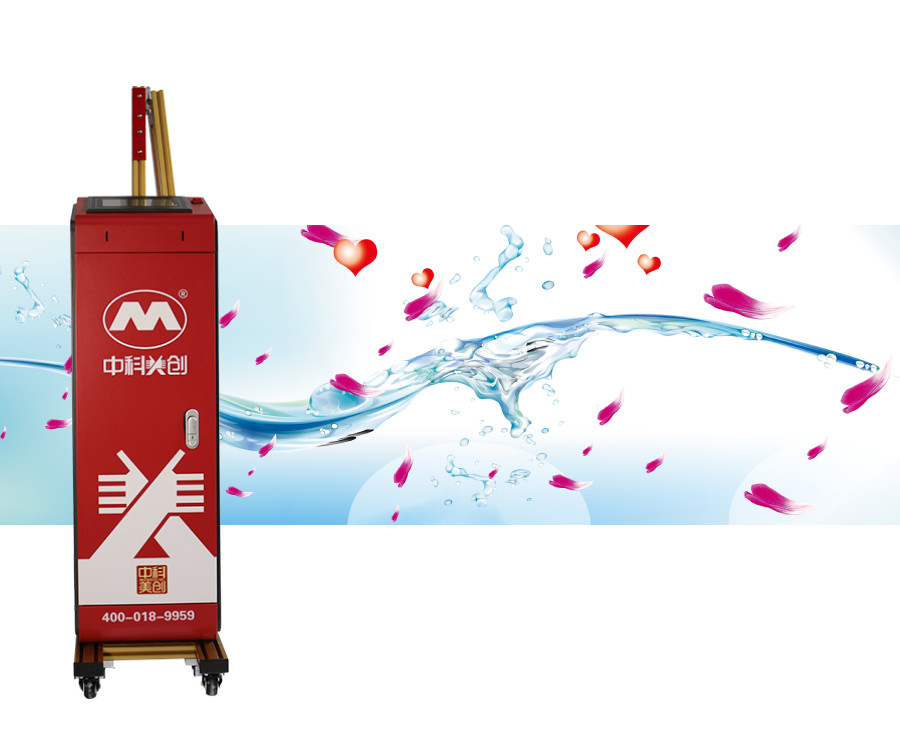

Digital Uv Printing Machine 3d Printer Wall Inkjet Printer Wall Painting Machine
ZKMC folding machine is a new product launched in 2021. The print head can be rotated, the horizontal guide rail can be folded and the vertical guide rail can be folded. These three parts can be folded, which not only saves space during the transportation of the machine, but also the machine, five guide rails and ink can be placed at the rear of the car. After printing on the wall, you can fold the print head to save space, and the direction of the print head faces the ground after rotation, which will prevent dust from entering the print head, keep more moisture in the print head, and keep the print head for a longer service time.
| Machine configuration | |
| X axis guide | 5m rails (5 lead rails, each 1m long, each foldable 22cm width only after be folded) |
| Y axis guide | Standard model: 219cm (height customizable), Y axis foldable, 1.4m in height after folded |
| Z axis guide | 15cm |
| Display screen | 7’’ LCD, touch screen |
| Spay distance | 0.5-1cm |
| Print head | International brand Epson brand, print head fodable after using, which can keep it for longer use |
| X axis effective stroke | 470cm |
| Y axis effective stroke | Standard model: 170cm (height customizable) |
| Z axis effective stroke | 10cm |
| Synchro belt | 1pc |
| Drive rack | 5pcs |
| Net picture print height | Standard 1.7m (height customizable), unlimited width |
| Machine weight | 62kg |
| Lead rails weight | 10kg*5pcs |
| Applied wall | Any vertical flat materials, glass, metal, tiles, putty wall, latex wall, white wall, diatom mud wall, shell powder wall, wooden wall, paper, brick wall, canvas, etc. |
| Control configuration | |
| Ink container capacity | 400ml |
| Printhead cleaning | Auto |
| Pump test | Y |
| Stepper motor | Y |
| Level | Y |
| Painting mode | Bi-directional |
| Ultrasonic sensors | 2pcs |
| Performance configuration | |
| Language switch | Chinese, English |
|
Auto skip blank, Auto laser Positioning |
Y |
| Intelligent lifting | Support |
| Ink supply mode | Negative pressure auto ink supply |
| Color matching treatment | Auto |
| Ink use | Special uv ink |
| Integrated voltage stabilizer | Y |
| Ink Heating | Y |
| Software | Professional Printer Maintop Software, ZKMC output software |
| Computer system | Windows XP, win7, win8, win10 |
| Remarks | The above data for reference only, may change due to continuous product/model upgrading. |
Q&A
Q1. What kind of ink does our machine use?
A: Special customized water based ink: CMYK 4 colors, 1 bottle/color/500ml.
Our machine is applied both indoor and outdoor wall decor, the eco friendly ink has no harm to health. It meets the public requirements for health care.
Q2. What is the difference between vertical machine and horizontal machine?
A: Vertical machine can print any width photo; while the horizontal machine can only print 1.8m*1.7m
Q3 What kind of surface your machine can print?
A: it can be widely used for painting on many kinds of vertical surfaces, professional in putty powder wall, diatom mud wall, latex paint wall, shell powder wall, chemical fiber canvas, wallpaper,wood, metal, ceramics, rice paper, etc.
Q4: How shall we assemble the machine?
A: Customer shall assemble the machine based on our video and operation manual provided. It’s easy, usually take about 15 minutes after customer becoming familiar with our machine.
Q5: How shall we operate the machine? Is training necessary?
A: The operation of the machine is easy to learn. We will provide operation manual with pictures and related videos to customer. Additionally, we’ll provide online training while needed. So, our customers could master our machine operation within within 1---3hours. Customer can also come to our workshop to get training.
Q6: What are the after sales service?
A: Our machine has 1 year warranty (ink and printhead excluded) if not artificial damaged. After the warranty, we still provide lifetime technical support and service.
Q7: What’s the delivery time?
A: About 5-10 working days after receive the payment.
