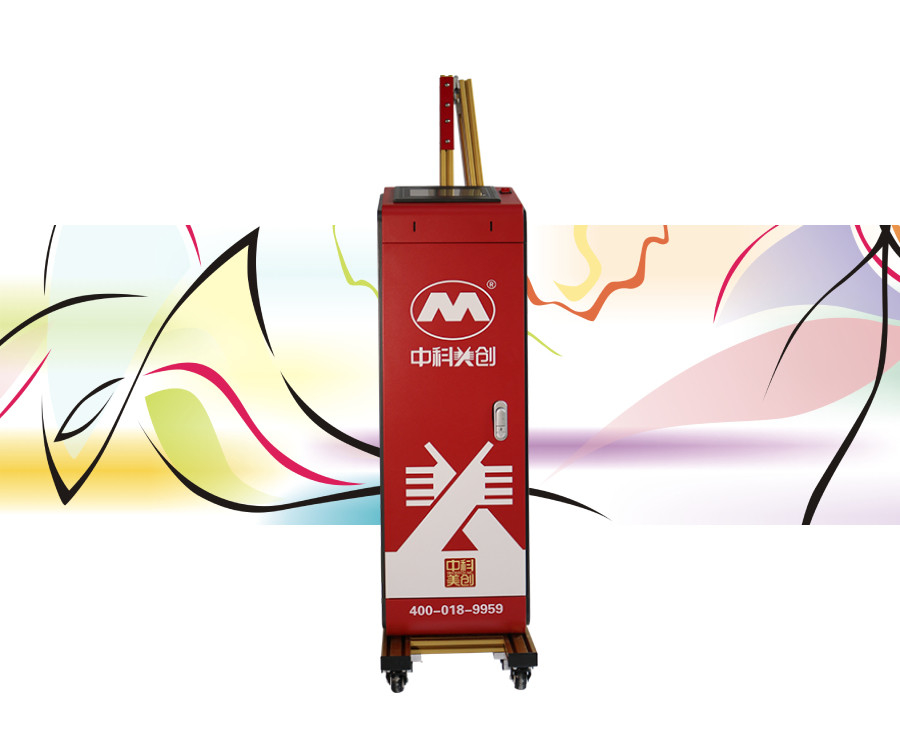

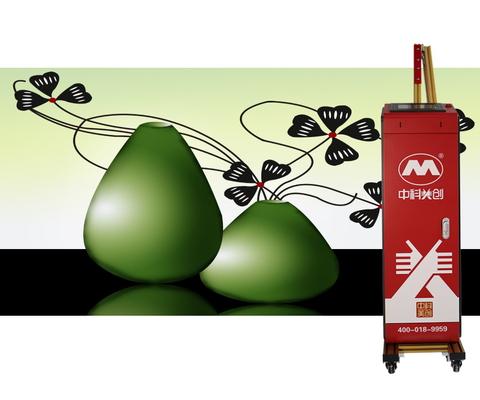

Large Format Digital Modern Art Wall Printer Machine Vertical

Large Format Digital Modern Art Wall Printer Machine Vertical

  • Large Format Digital Modern Art Wall Printer Machine Vertical
  • Large Format Digital Modern Art Wall Printer Machine Vertical
Large Format Digital Modern Art Wall Printer Machine Vertical
Product Details:
Place of Origin: Beijing, China
Brand Name: Zhongkemeichuang
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: 1 plywood box
Payment Terms: T/T, Western Union
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Name: 2021 New Technology Vertical Large Format Digital Modern Art Wall Printer Machine Type: UV Wall Printer
Printhead: Auto Cleaning, Qty 1 Or 2 Based On Demand Horizontal Raill: Foldable
Vertifal Rail: Foldable Cooling System: Fan
L*W*H (main body from ground): Standard Model: 70*31*239cm (height Customizable). Height 1.4m After Folding. Surface tracing: Hyperbolic Banner Sensors, Two-way Induction Up And Down
High Light:

auto cleaning printhead wall printer machine


silent vertical wall printing machine


silent wall printer machine

2021 New Technology Vertical Large Format Digital Modern Art Wall Printer


Key Selling Points:


Our machine can be customized, water based ink CMYK 4 colors machine can be customized to CMYK 4 colors UV ink machine, can also have 2 printheads which has CMYKW 5 colors UV ink based on customer's demand.


2021 new developed products with unique foldable printhead, vertical rail and horizontal rails, with wheel under the machine which is very easy for moving machine from different place to another.


Basic parameters
Data transmission mode USB
L*W*H (main body from ground) Standard model: 70*31*239cm (height customizable). Height 1.4m after folding.
Printhead Auto cleaning, printhead foldable if 1 printhead machine
Ink consumption 8-12ml/m2 (less than USD1/m2)
Ink base color CMYK, use special uv ink (can be 2-printead which's CMYKW 5 colors)
Painting precision Up to 2880DPI
Painting speed Multispeed adjustable, ~1-10m2/h
Voltage/power 90-246V/380W,47-63HZ
Noise Standy<20dBA, painting <50dBA
Storage/Operation -10℃-35℃(59°F-95°F)
  10%-70% relative humidity, in non-condensation state
Surface tracing Hyperbolic banner sensors, two-way induction up and down
Machine configuration
X axis guide 5m rail
Y axis guide Standard model: 219cm (height customizable)
Z axis guide 15cm
Display screen 7’’ LCD, touch screen
Spay distance 0.5-1cm
X axis effective stroke 470cm
Y axis effective stroke Standard model: 170cm (height customizable)
Z axis effective stroke 10cm
Synchro belt 1pcs
Drive rack 5pcs
Net picture print height Standard 1.7m (height customizable), unlimited width
Machine weight 62kg
Lead rails weight 10kg*5pcs, rail foldable
Applied wall Inside & outside putty wall, latex wall, white wall, diatom mud wall, shell powder wall, wooden wall, paper, brick wall, canvas, etc.
Control configuration
Ink container capacity 400ml
Printhead cleaning Auto
Pump test Y
Stepper motor Y
Level Y
Painting mode Bi-directional
Ultrasonic sensors 2pcs
Performance configuration
Language switch Chinese, English
Auto skip blank Y
Intelligent lifting Support
Ink supply mode Negative pressure auto ink supply
Color matching treatment Auto
Ink use Special UV ink
Integrated voltage stabilizer Y
Ink Heating Y
Software Professional Printer Maintop Software, ZKMC output software
Computer system Windows XP, win7, win8, win10
Remarks The above data for reference only, may change due to continuous product/model upgrading.


ZKMC Wall Printer is widely applied to indoor and outdoor wall decoraton fields. In the past two or three years, it's very common that many entrepreneurs choose to start their own business to buy ZKMC wall printing machine. So far, it's still very hot business in many countries.



ZKMC uv wall printer painting costs are low, less than USD 1 per square meter. If customer only charge about USD 10/m2. It' d gain 10 times of return. Compared with the cost and profit return it is very considerable, so the vertical wall printer market prospects are very delighted.


Special Ink Heating UV Vertical Wall Printer 0Special Ink Heating UV Vertical Wall Printer 1Large Format Digital Modern Art Wall Printer Machine Vertical 2

Large Format Digital Modern Art Wall Printer Machine Vertical 3

Special Ink Heating UV Vertical Wall Printer 3


Q1: What is after-sales service? If it is not caused by man-made damage, our machine has a 1-year warranty (except ink and print head). After the warranty period, we still provide lifetime technical support and services. Once there is something to be replaced, we provide all the spare parts for the printer. We recommend that users order spare parts kits for long-term maintenance and quick replacement. When you encounter any technical problems, our technical staff will help analyze the problem through video calls and provide corresponding solutions.
Q2: How about the packaging and the delivery time? All packaging meets export standards. Approximately 5-10 working days after receipt of payment.
Q3: How do I purchase and pay? You can see our factories and machines running through the video call, and pay by bank transfer. The preferred payment method is T/T full payment. In addition, you can visit our factory directly and pay cash.
