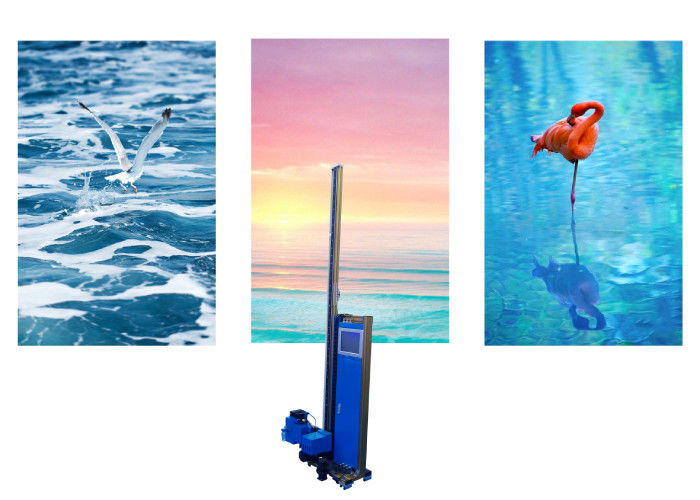

Multispeed Multicolor Silent Uv 3d Wall Printing Machine

Multispeed Multicolor Silent Uv 3d Wall Printing Machine

  • Multispeed Multicolor Silent Uv 3d Wall Printing Machine
  • Multispeed Multicolor Silent Uv 3d Wall Printing Machine
Multispeed Multicolor Silent Uv 3d Wall Printing Machine
Product Details:
Place of Origin: Beijing, China
Brand Name: Zhongkemeichuang
Certification: RoHS for ink
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: 1 plywood box
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Name: 2880 Dpi Auto Blank Skip Laser Positioning Auto Color Matching Multispeed Multicolor Silent UV Wall Printer Computer: Industrial Computer Built-in
Applied Wall: Glass, Metal, Ceramic Tiles, Inside & Outside Putty Wall, Latex Wall, White Wall, Diatom Mud Wall, Shell Powder Wall, Paper, Brick Wall, Normal White Wall, Canvas, Etc. Surface Tracking: Yes, Automatic Surface Tracing By 2 Ultra Sonic Banners
Net Picture Print Height: 1.6m Height, Unlimited Width (height Customizable) Painting Precision: 720-2880DPI
High Light:

multispeed 3d wall printing machine

,

multicolor 3d wall printing machine

,

silent 3d wall inkjet printer

2880 Dpi Auto Blank Skip Laser Positioning Auto Color Matching Multispeed Multicolor Silent UV Wall Printer



ZKMC UV printer get many buyers' attention because it has widest usage and can bring more income for the buyers, it can print on various materials. ZKMC vertical UV printer  has auto-heating ink  system, dual-sensor automatic induction, it has UV lamp and can dry the printings immediately. This machine can  makes the printing more vivid and realistic,can be widely used to wall printing and can paint on other materials such as glass, metal, wood,seramic etc.



The wall printer is a new and promising business  project, it is widely suitable for interior and exterior walls, putty powder wall, latex paint wall, white wall, imitation porcelain wall, diatom mud wall, canvas, tiles, glass, rice paper, wall clothing, color coated glaze, shell powder, color paint and so on.



Basic parameters
Data transmission mode USB
L*W*H (main body from ground) 80*32*239cm (height customizable)
Printhead Auto cleaning
Ink consumption 15-20ml/m2
Ink base color CMYK+WWWW
Painting precision Upto 2880DPI
Painting direction Vertical
Painting speed Multispeed adjustable, ~1-8m2/h
Voltage/power 90-246V/380W,47-63HZ
Noise Standy<20dBA, painting <50dBA
Storage/Operation -10℃-35℃(59°F-95°F)
10%-70% relative humidity, in non-condensation state
Surface tracing Hyperbolic banner sensors, two-way induction up and down
Machine configuration
X axis guide 5m rail
Z axis guide 14cm
Spay distance 0.5-1cm
X axis effective stroke 470cm
Z axis effective stroke 10cm
Synchro belt 1pcs
Drive rack 5pcs
Net picture print height 160cm (height customizable)
Machine weight 52kg
Lead rails weight 10kg/piece*5pcs, total 50kg
Applied wall Any flat materials
Control configuration
Ink container capacity 400ml/piece
Printhead cleaning Auto
Flasing testing Y
Stepper motor Y
Level Y
Painting mode Bi-directional
Ultrasonic sensors 2pcs
Performance configuration
Language English
Auto blank skip Y
Ink supply mode Negative pressure auto ink supply
Color matching treatment Auto
Ink use Special UV ink
Surface treatment after printing N
Integrated voltage stabilizer Y
Laser positioning Y
Ink Heating Y
Software Professional Printer Maintop Software, ZKMC output software
Computer system Windows XP, win7, win8, win10
Remarks The above data for reference only, may change due to continuous product/model improvement.






ZKMC UV Wall Printer is widely applied to indoor and outdoor wall decoraton fields. In the past two or three years, it's very common that many entrepreneurs choose to start their own business to buy ZKMC wall printing machine. So far, it's still very hot business in many countries.



ZKMC uv wall printer painting costs are low, less than USD 1 per square meter. If customer only charge about USD 10/m2. It' d gain 10 times of return. Compared with the cost and profit return it is very considerable, so the vertical wall printer market prospects are very delighted.





Special Ink Heating UV Vertical Wall Printer 0Special Ink Heating UV Vertical Wall Printer 1

Special Ink Heating UV Vertical Wall Printer 3

Special Ink Heating UV Vertical Wall Printer 4
