| Place of Origin: | Beijing, China |
| Brand Name: | Zhongkemeichuang |
| Certification: | RoHS for ink |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 plywood box |
| Delivery Time: | 5-10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets/month |
| Name: | Zkmc 3d Printing Robot Low Cost High Speed Wall 3d Printing Machine | Ink Color Matching: | Dural 4 Colors, Automatic Multi Color Matching |
|---|---|---|---|
| Broad Application: | Any Vertical Flat Materials | Low Cost: | Achieved By Auto Blank Skip Technology |
| Printhead: | Auto Cleaning | Printing Speed: | Low, Medium, High, Multi Speed Adjustable |
| High Light: | Bidirectional Wall Mural Printing Machine,CE Wall Mural Printing Machine |
||

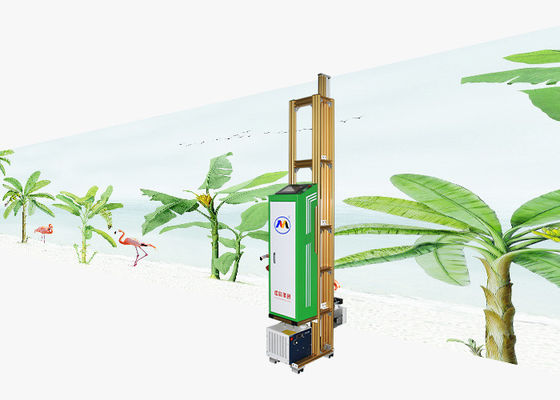

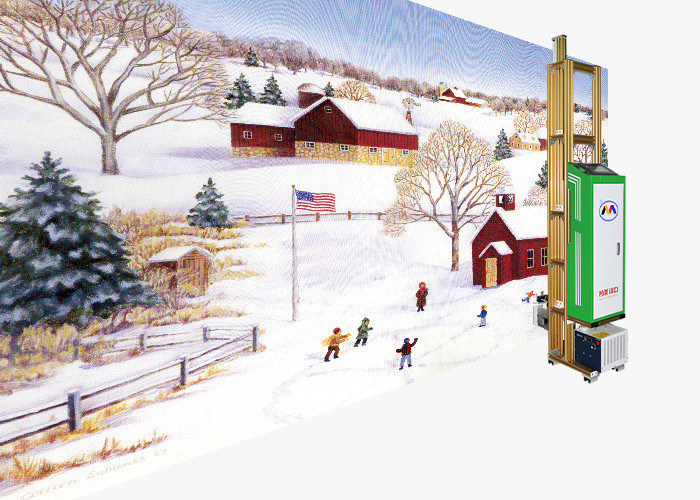

Zkmc 3d Printing Robot Low Cost High Speed Wall 3d Printing Machine
ZKMC wall 3d printing machine has endless business to do. At the beginning of the design, ZKMC 3D wall printer, with "high standards, high specifications, high efficiency, low loss" as the basic principle, to create the technically advanced 3D painting equipment. Using micro-intelligent processor technology, run more smoothly and with higher precision. The painted picture is fine, realistic, colorful, soft and layered. ZKMC wall printing machine makes 3D picture painting really simple and practical.
ZKMC wall 3D wall printing machine with operator panel, Chinese and English menu interface, LCD display. Z-axis using the original imported ultrasonic sensors to achieve accurate, fast automatic tracking of concave walls, easy to solve the wall uneven, wall tilt, bump and other issues, so that the construction more worry-free and more effective.
| Basic parameters | |
| Voltage/power | 90-246V/380W,47-63HZ |
| Noise | Standy<20dBA, painting <50dBA |
| Storage/Operation | -10℃-35℃(59°F-95°F) |
| 10%-70% relative humidity, in non-condensation state | |
| Surface tracing | Hyperbolic banner sensors, two-way induction up and down |
| Machine configuration | |
| X axis guide | 5m rails |
| Y axis guide | 219cm |
| Z axis guide | 14cm |
| Display screen | 7’’ LCD |
| Spay distance | 0.5-1cm |
| X axis effective stroke | 470cm |
| Y axis effective stroke | 170cm |
| Z axis effective stroke | 10cm |
| Synchro belt | 1pc |
| Drive rack | 5pcs |
| Net picture print height | 1.7m, unlimited width |
| Machine weight | 71kg |
| Lead rails weight | 10kg*5pcs |
| Applied wall | Inside & outside putty wall, latex wall, white wall, diatom mud wall, shell powder wall, wooden wall, paper, brick wall, canvas, etc. |
| Control configuration | |
| Ink container capacity | 400ml |
| Printhead cleaning | Auto |
| Pump test | Y |
| Z-Axis Automation | Y |
| Level | Y |
| Ultrasonic sensors | 2pcs |
| Performance configuration | |
| Language | English |
| Painting mode | Bidirectional |
| Auto blank skip | Y |
| Ink supply mode | Negative pressure auto ink supply |
| Color matching treatment | Auto |
| Integrated voltage stabilizer | Y |
| Ink Heating | Y |
| Laser light | Y |
| Painting Media | All planar materials |
| Software | Professional Printer Maintop Software, ZKMC output software |
| Computer system | Windows XP, win7, win8, win10 |
| Remarks | The above data for reference only, may change due to continuous product/model upgrading. |
Features
High efficiency
Hand-drawn three-dimensional wall painting takes days or even months. And the use of ZKMC 3D wall printer machine, the size of tens of meters or even hundreds of meters of ultra-large three-dimensional wall painting, instantly can be painted.
Low cost
Traditionally, a painter painted a 2 meters x 5 meters wall painting, because of the time-intensive work, high price, moving tens of thousands, hundreds of thousands, resulting in a lack of consumers, objectively, limited the popularity of the wall painting industry. The mechanical drawing of ZKMC, because of simple, efficient, time-saving, labor-saving, so low cost.
Resistant to peeling
Because this wall painting uses micro-intelligent painting technology, the use of special ink suitable for the characteristics of the wall, and the wall into one, no conjunctivation, skin, not to fall off, and thus durable. Today, the market for 3D wall printer is booming, and for investors, ZKMC 3D wall mural printer machines are the best choice to invest and get rich.
