| Place of Origin: | Beijing, China |
| Brand Name: | Zhongkemeichuang |
| Certification: | CE for machine, RoHS for ink |
| Model Number: | ZK-Q7PLUS |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 plywood box |
| Delivery Time: | 5-10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets/month |
| Type: | 7m2/H Printing Zkmc Q7plus Vertical 3d Wall Printing Machine For Home Decoration | Warranty: | 1 Year Warranty (ink & Printhead Excluded) |
|---|---|---|---|
| Automatic Grade: | Automatic | L*W*H (main Body from Ground): | Standard Model: 70*31*239cm (other Sizes: 259cm, 329cm) |
| Net Printing Height: | Standard Model: 180cm (other Sizes: 200cm, 270cm) | Lead Rails: | 5m Rails |
| High Light: | 7m2/H 3D Wall Printing Machine,3D Wall Printing Machine 5m Rails,7m2/H 3d wall printer |
||

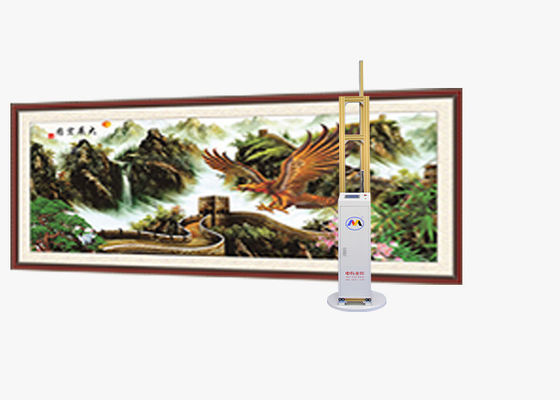

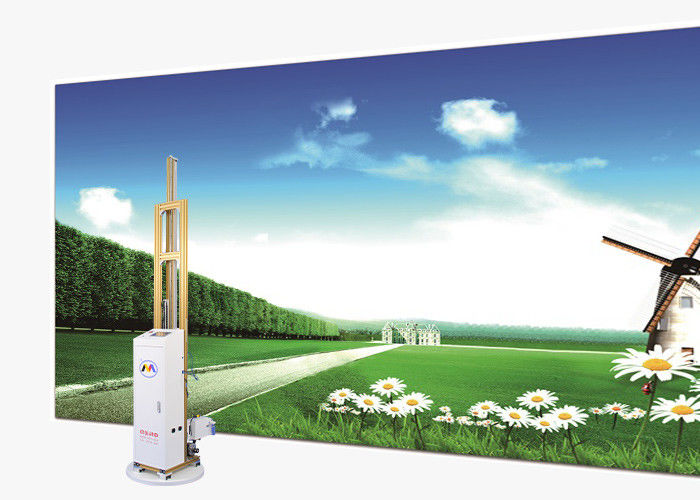

7m2/H Printing Zkmc Q7plus Vertical 3d Wall Printing Machine For Home Decoration
ZKMC vertical 3d wall printing machine is very popular. Because of high quality, stable performance, low cost, and lifetime after sales services. Tough, we provide free training for our customers. But most of our buyers just learned the operation from the detailed video we provided, because it's not difficult to master.
| Basic parameters | |
| Data transmission mode | USB |
| L*W*H (main body from ground) | Standard model: 70*31*239cm (the other models: 259cm, 329cm) |
| Printhead | Auto cleaning |
| Ink consumption | 8-12ml/m2 (less than USD1/m2) |
| Ink base color | Dual 4 colors (CMYK, CMYK), use special water based ink |
| Painting precision | From 720DPI, upto 2880DPI |
| Painting direction | Vertical |
| Painting speed | Multispeed adjustable, ~1-7m2/h |
| Voltage/power | 90-246V/380W,47-63HZ |
| Noise | Standy<20dBA, painting <50dBA |
| Storage/Operation | -10℃-35℃(59°F-95°F) |
| 10%-70% relative humidity, in non-condensation state | |
| Surface tracing | Hyperbolic banner sensors, two-way induction up and down |
| Machine configuration | |
| X axis guide | 5m rails |
| Y axis guide | Standard model: 219cm (other models: 239cm, 309cm) |
| Z axis guide | 15cm |
| Display screen | 4.3’’ LCD, touch screen |
| Spay distance | 0.5-1cm |
| X axis effective stroke | 470cm |
| Y axis effective stroke | Standard model: 180cm (other models: 200cm, 270cm) |
| Z axis effective stroke | 10cm |
| Synchro belt | 1pc |
| Drive rack | 5pcs |
| Net picture print height | Standard 1.8m (other models: 2.0m, 2.7m), unlimited width |
| Machine weight | 62kg |
| Lead rails weight | 10kg/piece*5pcs, total 50kg |
| Applied wall | Inside & outside putty wall, latex wall, white wall, diatom mud wall, shell powder wall, paper, brick wall, normal white wall, canvas, etc. |
| Control configuration | |
| Ink container capacity | 400ml |
| Printhead cleaning | Auto |
| Pump test | Y |
| Stepper motor | Y |
| Level | Y |
| Painting mode | Bi-directional |
| Ultrasonic sensors | 2pcs |
| Performance configuration | |
| Language | English |
| Auto blank skip | N |
| Ink supply mode | Negative pressure auto ink supply |
| Color matching treatment | Auto |
| Ink use | Special water based ink |
| Surface treatment after printing | Water based varnish |
| Integrated voltage stabilizer | Y |
| Ink Heating | Y |
| Software | Professional Printer Maintop Software, ZKMC output software |
| Computer system | Windows XP, win7, win8, win10 |
| Packing | 1 plywood packing for standard model of machine, machine and inks in 1 box, total gross weight ~220kg, box dimension ~237x81x68cm |
| Remarks | The above data for reference only, may change due to continuous product/model upgrading. |
