| Place of Origin: | Beijing, China |
| Brand Name: | Zhongkemeichuang |
| Certification: | CE for machine, RoHS for ink |
| Model Number: | ZK-Q7PLUS |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 plywood box |
| Delivery Time: | 5-10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets/month |
| Name: | Zkmc 3d Picture Painting Height 2700mm Automatic Inkjet Mural Printing Machine | Applicable Industries: | Bars, KTVs |
|---|---|---|---|
| Machine Warranty: | 1 Year Warranty (printhead Excluded) | Ultrasonic Sensors: | 2pcs |
| Auto Blank Skip: | No. ZKMC Q8 & UV Machine Have This Funcation | Usage: | Wall Printer |
| High Light: | Plywood Packaging Mural Inkjet Printer,Mural Inkjet Printer 2700mm,Mural Printing Machine 2700mm |
||

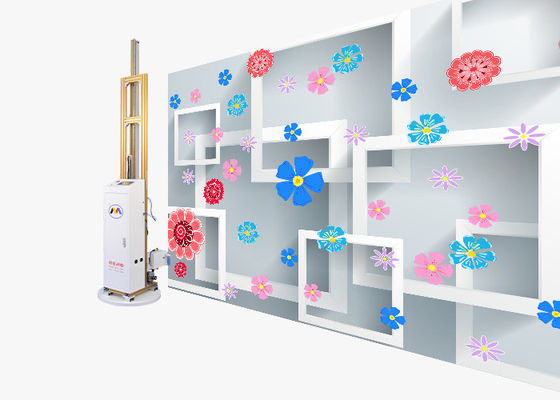

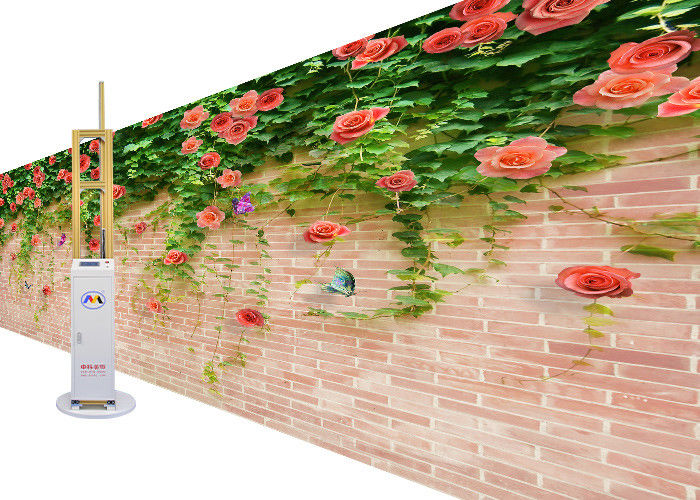

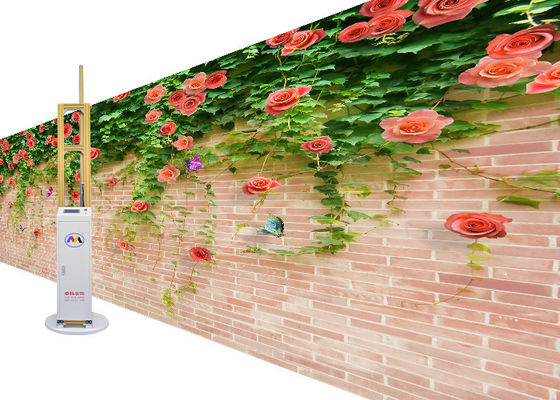

Zkmc 3d Picture Painting Height 2700mm Automatic Inkjet Mural Printing Machine
Supply Ability:
1200 sets/year for ZKMC Automatic Wall Inkjet Printer
Packaging & Delivery:
Packaging Details: 1 plywood packaging, box dimension (L*W*H): 237*81*68cm
Thick plywood case according to International Export Standard for ZKMC Automatic Wall Inkjet Printer.
ZKMC Automatic Wall Inkjet Printer is ready for delivery between 5-10 working days.
Port:
Tianjin Xingang, or any other sea ports or airports in China for shipping ZKMC Automatic Wall Inkjet Printer.
| Basic parameters | |
| Data transmission mode | USB |
| L*W*H (main body from ground) | Standard model: 70*31*239cm (the other models: 259cm, 329cm) |
| Printhead | Auto cleaning |
| Ink consumption | 8-12ml/m2 (less than USD1/m2) |
| Ink base color | Dual 4 colors (CMYK, CMYK), use special water based ink |
| Painting precision | From 720DPI, upto 2880DPI |
| Painting direction | Vertical |
| Painting speed | Multispeed adjustable, ~1-7m2/h |
| Voltage/power | 90-246V/380W,47-63HZ |
| Noise | Standy<20dBA, painting <50dBA |
| Storage/Operation | -10℃-35℃(59°F-95°F) |
| 10%-70% relative humidity, in non-condensation state | |
| Surface tracing | Hyperbolic banner sensors, two-way induction up and down |
| Spay distance | 0.5-1cm |
| X axis effective stroke | 470cm |
| Y axis effective stroke | Standard model: 180cm (other models: 200cm, 270cm) |
| Z axis effective stroke | 10cm |
| Synchro belt | 1pc |
| Drive rack | 5pcs |
| Net picture print height | Standard 1.8m (other models: 2.0m, 2.7m), unlimited width |
| Machine weight | 62kg |
| Lead rails weight | 10kg/piece*5pcs, total 50kg |
| Applied wall | Inside & outside putty wall, latex wall, white wall, diatom mud wall, shell powder wall, paper, brick wall, normal white wall, canvas, etc. |
| Language | English |
| Auto blank skip | N |
| Ink supply mode | Negative pressure auto ink supply |
| Color matching treatment | Auto |
| Ink use | Special water based ink |
| Surface treatment after printing | Water based varnish |
| Integrated voltage stabilizer | Y |
| Ink Heating | Y |
| Software | Professional Printer Maintop Software, ZKMC output software |
| Computer system | Windows XP, win7, win8, win10 |
| Packing | 1 plywood packing for standard model of machine, machine and inks in 1 box, total gross weight ~220kg, box dimension ~237x81x68cm |
| Remarks | The above data for reference only, may change due to continuous product/model upgrading. |
FAQ
Q1:How shall we assemble the machine?
A1:Customer shall assemble the machine based on our video and operation manual provided. It’s easy, usually take about 15 minutes after customer becoming familiar with our machine.
Q2:How shall we operate the machine? Is training necessary?
A2:The operation of the machine is easy to learn. We will provide operation manual with pictures and related videos to customer. Additionally, we’ll provide online training while needed. So, our customers could master our machine operation without difficulties. Customer can also come to our workshop to get training. We could dispatch our technician to customer’s office for help as well.
Q3:What are the after sales service?
A3:Our machine has 1 year warranty (ink and printhead excluded) if not artificial damaged. After the warranty, we still provide lifetime technical support and service.
Q4:What’s the delivery time?
A4:About 5-10 working days after receiving the payment.
