| Place of Origin: | Beijing, China |
| Brand Name: | Zhongkemeichuang |
| Certification: | CE for machine, RoHS for ink |
| Model Number: | ZK-Q7PLUS |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 plywood box |
| Delivery Time: | 5-10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets/month |
| Name: | Cmyk Automatic Color Matching Technology 3d Mural Printing Machine | Applicable Industries: | Building Material Shops |
|---|---|---|---|
| After Warranty Service: | Online Technical Support, Spare Parts | Local Service Location: | Egypt, Russia |
| Showroom Location: | Egypt, Russia | Type: | Inkjet Printer |
| High Light: | Cmyk Wall Mural Printer,Cmyk 3d Wall Printer,Wall Mural Printer Automatic Color Matching |
||

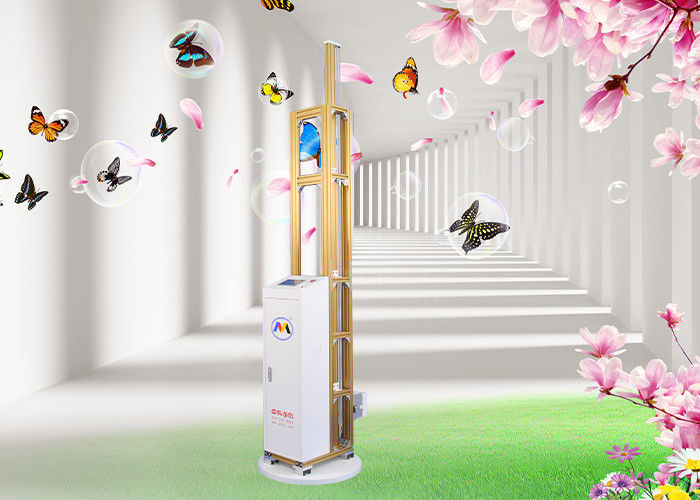

Cmyk Automatic Color Matching Technology 3d Mural Printing Machine
Features
1. Quick Drawing - It only takes one-tenth of the time to draw by hand, twice as much as drawing by hand.
2. Intelligent operation: several hours to master the core technology, simple as use of mobile phone operation, no painting skills needed.
3. Unique ink heating program: not afraid of cold, four seasons available
4. Intelligent speed adjustment - automatic speed adjustment in the middle of printing
5. Train track-type automatic movement, easy to carry to different projects by cars.
6. Smart blank skip from up to down, left to right.
7. The device uses imported chip integrated circuit, instead of artificial drawing, more intelligent, humane, faster.
8. Equipped with dual ultrasonic sensors, up and down two-way sensing, surface tracking, automatic positioning, automatic solution to uneven walls, wall tilt and other issues.
| Basic parameters | |
| Data transmission mode | USB |
| L*W*H (main body from ground) | Standard model: 70*31*239cm (the other models: 259cm, 329cm) |
| Printhead | Auto cleaning |
| Ink consumption | 8-12ml/m2 (less than USD1/m2) |
| Ink base color | Dual 4 colors (CMYK, CMYK), use special water based ink |
| Painting precision | From 720DPI, upto 2880DPI |
| Painting direction | Vertical |
| Painting speed | Multispeed adjustable, ~1-7m2/h |
| Voltage/power | 90-246V/380W,47-63HZ |
| Noise | Standy<20dBA, painting <50dBA |
| Storage/Operation | -10℃-35℃(59°F-95°F) |
| 10%-70% relative humidity, in non-condensation state | |
| Surface tracing | Hyperbolic banner sensors, two-way induction up and down |
| Machine configuration | |
| X axis guide | 5m rails |
| Y axis guide | Standard model: 219cm (other models: 239cm, 309cm) |
| Z axis guide | 15cm |
| Display screen | 4.3’’ LCD, touch screen |
| Spay distance | 0.5-1cm |
| X axis effective stroke | 470cm |
| Y axis effective stroke | Standard model: 180cm (other models: 200cm, 270cm) |
| Z axis effective stroke | 10cm |
| Synchro belt | 1pc |
| Drive rack | 5pcs |
| Net picture print height | Standard 1.8m (other models: 2.0m, 2.7m), unlimited width |
| Machine weight | 62kg |
| Lead rails weight | 10kg/piece*5pcs, total 50kg |
| Applied wall | Inside & outside putty wall, latex wall, white wall, diatom mud wall, shell powder wall, paper, brick wall, normal white wall, canvas, etc. |
| Control configuration | |
| Ink container capacity | 400ml |
| Printhead cleaning | Auto |
| Pump test | Y |
| Stepper motor | Y |
| Level | Y |
| Painting mode | Bi-directional |
| Ultrasonic sensors | 2pcs |
| Performance configuration | |
| Language | English |
| Auto blank skip | N |
| Ink supply mode | Negative pressure auto ink supply |
| Color matching treatment | Auto |
| Ink use | Special water based ink |
| Surface treatment after printing | Water based varnish |
| Integrated voltage stabilizer | Y |
| Ink Heating | Y |
| Software | Professional Printer Maintop Software, ZKMC output software |
| Computer system | Windows XP, win7, win8, win10 |
| Packing | 1 plywood packing for standard model of machine, machine and inks in 1 box, total gross weight ~220kg, box dimension ~237x81x68cm |
| Remarks | The above data for reference only, may change due to continuous product/model upgrading. |
ZKMC products development history:
*Jul 2013 model: zk-q 1st generation
*Jul 2013 model: zk-q 2nd generation
*Jul 2013 model: zk-q 3rd generation
*Mar 2014 model: zk-q 4th generation
*Oct 2014 model: zk-q 5th generation
*Mar 2015 model: zk-q 6th generation
*Sep 2016 model: zk-q 7th generation
*Nov 2017 model: zk-q 7plus generation
*Feb 2018 model: zk-q 8th generation
*Mar 2019 model: zk-q 9th generation
*Jun 2019 model: zk-q 10th generation
