| Place of Origin: | Beijing, China |
| Brand Name: | Zhongkemeichuang |
| Certification: | CE for machine, RoHS for ink |
| Model Number: | ZK-Q8 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 plywood box |
| Delivery Time: | 5-10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets/month |
| Name: | Zkmc Over 5 Meters Width Paintint Blank Skip Verical 3d Wall Printing Machine | 2 Ultrasonic Sensors: | Automamtic Surface Tracking |
|---|---|---|---|
| Ink Color: | Dual 4 Colors, Multicolor Auto Matching | Printing Resolution: | Up To 720×2880dpi |
| Integrated Voltage Regulator: | Effective Regulate The Stability Of Voltage | Voltage: | AC 90-246V 47-63HZ |
| High Light: | 2880dpi 3d Wall Painting Printer,3d Wall Painting Printer Blank Skip,2880dpi 3d Painting Printer |
||

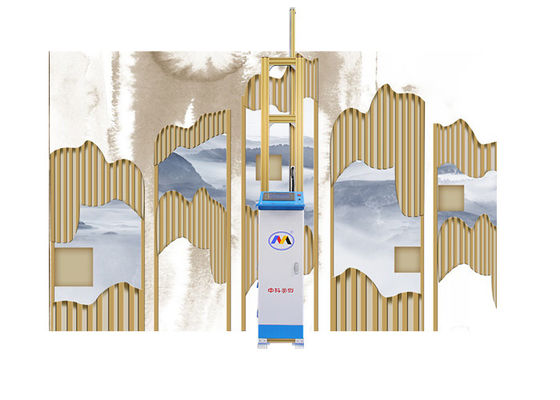

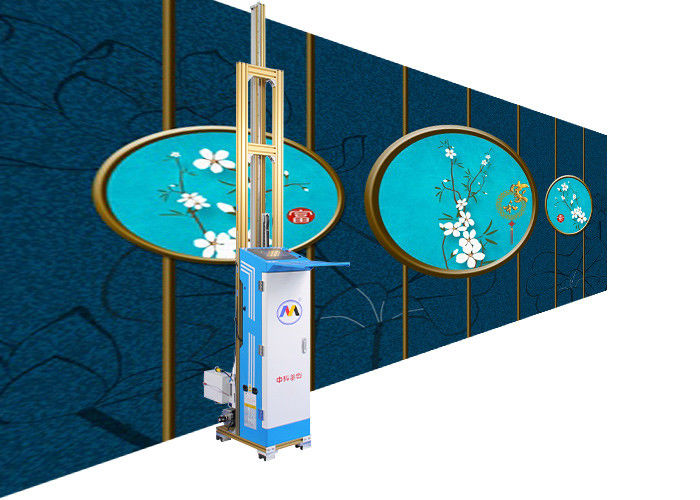

Zkmc Over 5 Meters Width Paintint Blank Skip Verical 3d Wall Printing Machine
Machine features:
1. Adjust the machine vertical rack height according to the different wall heights.
2. Printing resolution from 720*720dpi, 720*1080dpi, 720*1440dpi... up to 720*2880dpi.
3. Two sensors, integrated circuit chips, add integrated voltage regulator, ink heating program, encoded motor, all those improvement make our printer more stable and high efficiency.
4. One year warranty (printhead excluded) and lifetime maintenance.
5. Automatic printhead cleaning and the uneven wall detecting,the ink jet is much smoothly, quickly, dyeing is more accurate, delicate, bright and clearly.
| Machine configuration | |
| X axis guide | 5m rails |
| Y axis guide | Standard model: 219cm(the other models: 239cm, 309cm) |
| Z axis guide | 15cm |
| Display screen | 7’’ LCD, touch screen |
| Spay distance | 0.5-1cm |
| X axis effective stroke | 470cm |
| Y axis effective stroke | Standard model: 180cm (the other models: 200cm, 270cm) |
| Z axis effective stroke | 10cm |
| Synchro belt | 1pc |
| Drive rack | 5pcs |
| Net picture print height | Standard 1.8m (other models: 2.0m, 2.7m), unlimited width |
| Machine weight | 62kg |
| Lead rails weight | 10kg*5pcs |
| Applied wall | Inside & outside putty wall, latex wall, white wall, diatom mud wall, shell powder wall, wooden wall, paper, brick wall, canvas, etc. |
| Control configuration | |
| Ink container capacity | 400ml |
| Printhead cleaning | Auto |
| Pump test | Y |
| Stepper motor | Y |
| Level | Y |
| Painting mode | Bi-directional |
| Ultrasonic sensors | 2pcs |
| Performance configuration | |
| Language switch | Chinese, English |
| Auto skip blank | Y |
| Intelligent lifting | Support |
| Ink supply mode | Negative pressure auto ink supply |
| Color matching treatment | Auto |
| Ink use | Water based ink |
| Surface treatment | Water based varnish |
| Integrated voltage stabilizer | Y |
| Ink Heating | Y |
| Software | Professional Printer Maintop Software, ZKMC output software |
| Computer system | Windows XP, win7, win8, win10 |
| Remarks | The above data for reference only, may change due to continuous product/model upgrading. |
