| Place of Origin: | Beijing, China |
| Brand Name: | Zhongkemeichuang |
| Certification: | CE for machine, RoHS for ink |
| Model Number: | ZK-Q8 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 plywood box |
| Delivery Time: | 5-10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets/month |
| Name: | Online English Support Easy Automatic Operation Vertical Wall Painting Machine | Key Advantages: | Auto Blank Skip, Ink Heating Program |
|---|---|---|---|
| Applicable Industries: | Cultural Industry, Sports Industry, Political Industry | Unique Ink Heating System: | Ensured Machine Work Normally In Winter |
| 2 Ultrasonic Sensors: | Auto Wall Flatness Detection | Printing Speed: | Multispeed Adjustable |
| High Light: | 3d Automatic Vertical Wall Printer Direct Wall Painting Machine,Silent Track Vertical Wall Printer,Silent Track Direct Wall Painting Machine |
||

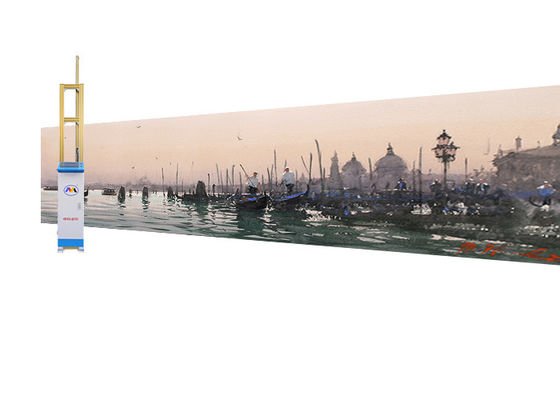

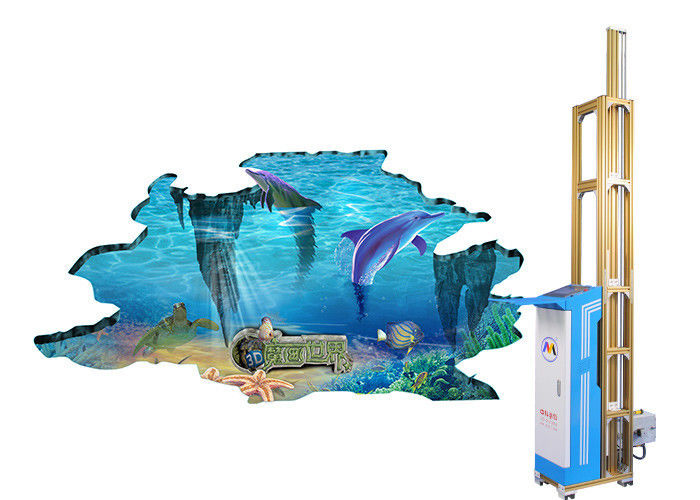

Online English Support Easy Automatic Operation Vertical Wall Painting Machine
Reasons of choosing ZKMC vertical wall painting machine
1. The market is promising
1) Home interior decoration - adapt to the place: TV background wall, sofa background wall, baby room background wall, bedroom background wall, xuanguan wall painting and so on.
2) Outdoor wall decoration - adapt to the place: campus cultural wall, outdoor cultural wall, outdoor advertising wall, curtain door painting decoration.
3) Business district wall decoration - adapt to the place: corporate culture wall, corporate style, hotels, restaurants, cafes, cinemas, shopping malls and other decorative walls.
2. Ink is environmentally friendly with RoHS
ZKMC Wall Printing Machine ink using nano pigment composite technology water solvent-based ink, anti-ultraviolet, anti-conjunctivation, durable, non-toxic tasteless, environmental health is not pungent, anti-corrosion, anti-aging, non-fading, the human body will not produce any harm and adverse effects, its color lasting of 10 years.
3. Less competitiveness, small investment, high returns
Vertical sub-regions, not fully developed, only a few people involved, less competitive pressure. Investment only needs several thousands of US dollars, easy to operate, industry charges over 15 -120 USD m2, the cost less than USD1/ m2.
4. Easy to learn
Free technical training, no painting skills required, a few hours to learn. High-efficiency computer intelligent automatic inkjet painting, about 1-10m2/h.
| Basic parameters | |
| Data transmission mode | USB |
| L*W*H (main body from ground) | Standard model: 70*31*239cm (the other models: 259cm, 329cm) |
| Printhead | Auto cleaning |
| Ink consumption | 8-12ml/m2 (less than USD1/m2) |
| Ink base color | Dual 4 colors (CMYK, CMYK), use special water based ink |
| Painting precision | From 720DPI, upto 2880DPI |
| Painting speed | Multispeed adjustable, ~1-10m2/h |
| Voltage/power | 90-246V/380W,47-63HZ |
| Storage/Operation | -10℃-35℃(59°F-95°F) |
| 10%-70% relative humidity, in non-condensation state | |
| Surface tracing | Hyperbolic banner sensors, two-way induction up and down |
| Machine configuration | |
| X axis guide | 5m rails |
| Y axis guide | Standard model: 219cm(the other models: 239cm, 309cm) |
| Z axis guide | 15cm |
| Display screen | 7’’ LCD, touch screen |
| Spay distance | 0.5-1cm |
| X axis effective stroke | 470cm |
| Y axis effective stroke | Standard model: 180cm (the other models: 200cm, 270cm) |
| Z axis effective stroke | 10cm |
| Synchro belt | 1pc |
| Drive rack | 5pcs |
| Net picture print height | Standard 1.8m (other models: 2.0m, 2.7m), unlimited width |
| Machine weight | 62kg |
| Lead rails weight | 10kg*5pcs |
| Applied wall | Inside & outside putty wall, latex wall, white wall, diatom mud wall, shell powder wall, wooden wall, paper, brick wall, canvas, etc. |
| Control configuration | |
| Ink container capacity | 400ml |
| Printhead cleaning | Auto |
| Pump test | Y |
| Stepper motor | Y |
| Level | Y |
| Painting mode | Bi-directional |
| Ultrasonic sensors | 2pcs |
| Performance configuration | |
| Language switch | Chinese, English |
| Auto skip blank | Y |
| Intelligent lifting | Support |
| Ink supply mode | Negative pressure auto ink supply |
| Color matching treatment | Auto |
| Ink use | Water based ink |
| Surface treatment | Water based varnish |
| Integrated voltage stabilizer | Y |
| Ink Heating | Y |
| Software | Professional Printer Maintop Software, ZKMC output software |
| Computer system | Windows XP, win7, win8, win10 |
| Remarks | The above data for reference only, may change due to continuous product/model upgrading. |
