Net Print Width 2.4m Multifunction Flatbed Printer Ground Adjustable Precision

Net Print Width 2.4m Multifunction Flatbed Printer Ground Adjustable Precision

Net Print Width 2.4m Multifunction Flatbed Printer Ground Adjustable Precision
Net Print Width 2.4m Multifunction Flatbed Printer Ground Adjustable Precision
Net Print Width 2.4m Multifunction Flatbed Printer Ground Adjustable Precision
Product Details:
Place of Origin: Beijing, China
Brand Name: Zhongkemeichuang
Certification: RoHS for ink
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: 1 plywood box
Delivery Time: 5-10 work days
Payment Terms: T/T
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Name: Net Print Width 2.4m Digital 2880dpi 3d UV Multifunction Flatbed Printer Ground Printer Painting Size: 0.1---2.4m Width(can Tailor-made)
Y Axis Guide: Limitless L*W*H (main body from ground): 0.4m*3.34m*0.45m(Width Can Be Tailor-made)
Painting precision: Adjustable From 720 DPI To 2880DPI Syhnochro Belt: 1pcs
Print Heads: 2 Epson Print Heads Ink: 5 Color UV Ink, CMYKW UV Ink, CMYK+WWWW
Painting size: 0.1---2.4m Width (can Be Tailor-made)Length: Limitless Ink Container Capacity: 400ml CMYK, 400ml WWWW
Printing Speed: 3--8㎡/h Applied Floor: Indoor And Outdoor Parking Space, Basement Floor, Squre Floor, Shopping Mall Floor Etc.
High Light:

adjustable precision multifunction flatbed printer

,

width 2.4m multifunction flatbed printer

,

2.4m digital flatbed printer for ground

Net print width 2.4m Digital 2880dpi 3d UV Multifunction Flatbed Printer ground printer

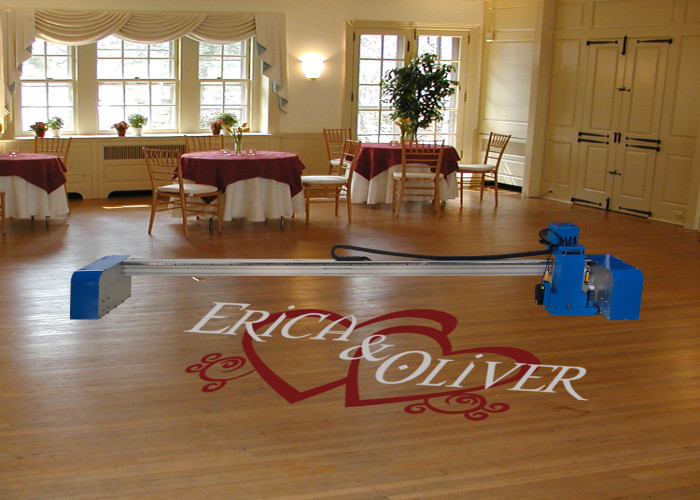

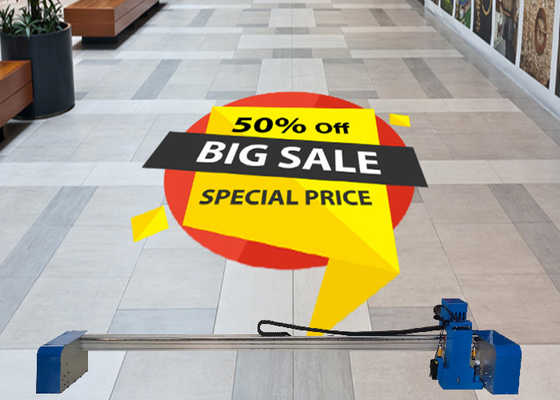

ZKMC floor printer can print the graphic with 2.4 meters wide, no limited to the length. With the stitching program function, you can connect two parts of your graphic to get a larger format in width which will beyond the standard size.


After painting the epoxy clear varnish, the image on the ground can be scratch resistance. We tested it on the parking lot with tires to Rolling it, that would be no problem.The image is waterproof.



Net Print Width 2.4m Multifunction Flatbed Printer Ground Adjustable Precision 0Net Print Width 2.4m Multifunction Flatbed Printer Ground Adjustable Precision 1

Net Print Width 2.4m Multifunction Flatbed Printer Ground Adjustable Precision 2Net Print Width 2.4m Multifunction Flatbed Printer Ground Adjustable Precision 3




Multi-function Flatbed UV Printer(Floor Printer)


Basic ParametersNew arrival timeApril 2021
Data transmission modeUSB 3.0
Sensor amount2 ultrasonic sensors
L*W*H(main body from ground)

0.4m*3.3m*0.4m
(Width can be tailor-made)

Painting speed3---8㎡/h
Ink type

Standard model: special UV ink,
CMYKW 5 colors

Print head amount2
Ink consumption8--12 ml /㎡
Ink cost of 1㎡Less than 1usd
Painting precision720---2880dpi adjustable
Painting directionHorizontal
Painting size

0.1---2.4m width (can be tailor-made)
Length: limitless

Machine configurationX axis guideTailor-made
Y axis guidelimitless
Z axis guide14cm
Display screenN
X axis effective strokeTailor-made
Y axis effective strokelimitless
Z axis effective stroke10cm
Synchro belt1PCS
Drive rackN
Applied floorIndoor and outdoor parking space, basement floor, square floor, shopping mall floor, etc
Control configurationInk container capacityCMYK 100ml*4, WWWW,100ml*4
Print head cleaningAuto
Flash testY
Ink jet testY
Z-Axis AutomationY
LevelY
Laser lightY
RasterN
Ultrasonic sensors2

Performance
configuration

Language switchEnglish, Chinese
Painting modeBidirectional
Automatic surface tracking

Laser positioning & ultrasonic sensor,
automatic sensing ground waves

Drive motorMulti-axis high-precision serving drive motor, synchronous precise movement, accurate printing
Image processingAI intelligent image processing
Static zone calibrationY
Step calibrationY
Print head bufferN
Spray distance0.5-1cm
Ink supply modeNegative pressure auto ink supply
Color matching treatmentAuto
Painting mediaAll planar materials
Integrated voltage stabilizerY
Laser positioningY
Magnetic induction limitN
Auto blank skipY
Ink heatingN
Power supply220V
Power-off continueN
Photo databaseyour own photo resource, and we can provide you some theme pictures
Remarks:The above data for reference only, may change due to continuous product/model updating.



Net Print Width 2.4m Multifunction Flatbed Printer Ground Adjustable Precision 4

ZKMC ground printer is made of high technology, suitable for any material, with strong compatibility. ZKMC wall printer has professional coloring software, which can change color anytime and anywhere, and complete full-color image at one time without additional payment, achieves the best photo printing 3d effect.
