Place of Origin: | Beijing, China |
Brand Name: | Zhongkemeichuang |
Certification: | RoHS for ink |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiable |
Packaging Details: | 1 plywood box |
Delivery Time: | 5-10 work days |
Payment Terms: | T/T |
Supply Ability: | 100 sets/month |
Name: | Special UV Ink Bidirectional Direct To Phone Case Picture Painting Multifunctional Flatbed Printer | UV lamp power: | Single Lamp Configuration 120w |
---|---|---|---|
Print Color: | CMYKW 5 Colors | Work Power: | 110V-220V, 50-60HZ |
Max. Print Medium Thickness: | 0-150mm | Max. Print Resolution: | 2440*1440*720dpi |
High Light: | 220V multifunction flatbed printer,bidirectional multifunction flatbed printer,bidirectional digital flatbed printer |

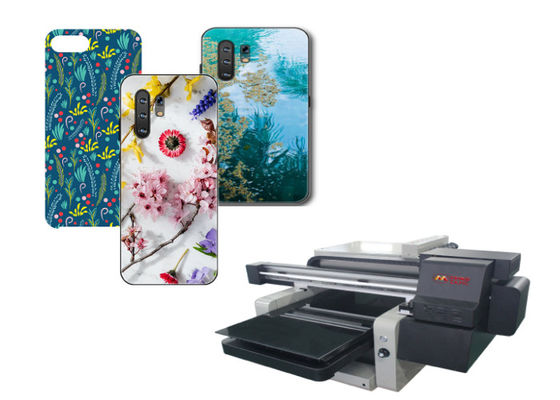

Special UV Ink Bidirectional Direct To Phone Case Picture Painting Multifunctional Flatbed Printer
ZKMC multifunctional Flatbed UV Printer, can not only directly print any pictures on phone cases, note book or any other flat surfaces by using our special uv ink. To satisfy you various needs in any season.
UV lamp series |
20 section uv power adjustable |
UV lamp power | single lamp configuration 120w |
UV lamp life | 50000 hours |
UV lamp wavelength | 390-400NM |
Light intensity | 500MW/W |
Temperature adjustment | automatic on/off, 25-30℃ |
Software | ZMKM output software, Rip |
Ink system | refillable cartridge system |
Cooling system | air cooling+water cooling |
Print head | Epson I1600 |
Print head protection | Auto checking |
Ink tube capacity | 220ml*5 |
Ink reproduction | Linear curve ICC calibration curve |
Print color | CMYKW |
Print speed | High /Medium /Low adjustable |
Print direction | single/bi-direction |
Max. print medium thickness | 0-150mm |
Max. print medium weight | 30kg |
Max. print resolution | 2440*1440*720dpi |
Work power | 110V-220V, 50-60HZ |
Port | USB2.0/ USB 3.0/ TCPIP |
Work environment | 25-30℃, 50% humidity, no dust |
Machine size | 1200*1000*660mm |
Packaging dimension | 1300*900*1125mm |
Maximum printing size | A2+,400*600MM |
Print head maintenance | Clean the print head before using and after using, keep the print head moisture when it is not work |
Computer system request | Window7/ 10 |
Platform lifting configuration | Screw rail plus linear guide rail |
Positioning mode | computer typesetting printing positioning |
Height adjustment mode | software one key control /physical keyboard control |
Platform type | glass platform +aluminum platform |
Ink processing system | Can set time for ink automatic cycling and mixing (ink colors matching),have liquid level sensor for ink cooling alarm |
Transmission way | X axis linear guide rail, Two linear guiderails on both sides of Y axis,equipped with double high-precision grinding lead screws |
Remark above data for reference only. Data may change due to continuous product upgrading and development. |
