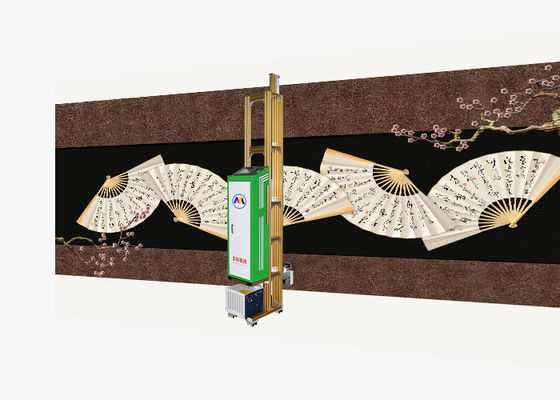

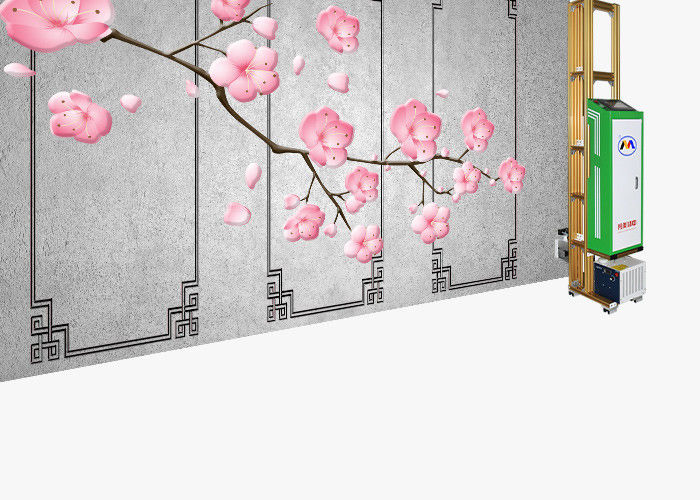

Large Format Automatic Wall Printer Robot Metal Ceramic Picture Printing

Large Format Automatic Wall Printer Robot Metal Ceramic Picture Printing

Large Format Automatic Wall Printer Robot Metal Ceramic Picture Printing
video
Large Format Automatic Wall Printer Robot Metal Ceramic Picture Printing
Product Details:
Place of Origin: Beijing, China
Brand Name: Zhongkemeichuang
Certification: CE for machine, RoHS for ink
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: 1 plywood box
Delivery Time: 5-10 work days
Payment Terms: T/T
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Name: Zkmc Ink Heating Function Metal Ceramic Picture Printing Uv Wall Printer Robot Unique Ink Heating Program: Enable Machine Work In Winter
Auto Blank Skip: Achieve High Efficiency, Low Cost Broad Application: All Flat Materials
2 Ultrasonic Sensor: Auto Detect The Wall Flatness Printhead: 1 Pc
High Light:

Wall Printer Robot Ceramic Picture Printing

,

bidirectional Wall Printer Robot

,

bidirectional 3d vertical wall printing machine



Zkmc Ink Heating Function Metal Ceramic Picture Printing Uv Wall Printer Robot





Supply Ability:
1200 sets/year for ZKMC Automatic Wall Inkjet Printer

Packaging & Delivery:
Packaging Details: 1 plywood packaging, box dimension (L*W*H): 237*81*68cm
Thick plywood case according to International Export Standard for ZKMC Automatic Wall Inkjet Printer.
ZKMC Automatic Wall Inkjet Printer is ready for delivery between 5-10 working days.

Port:
Tianjin Xingang, or any other sea ports or airports in China for shipping ZKMC Automatic Wall Inkjet Printer.



Basic parameters
Data transmission mode USB
L*W*H (main body from ground) 70*31*239cm
Printhead Auto cleaning
Ink consumption 8-12ml/m2 (less than USD1/m2)
Ink base color CMYK, customzied UV ink
Painting precision From 720DPI, upto 2880DPI
Painting direction Vertical
Painting speed Multispeed adjustable, ~1-8m2/h
Voltage/power 90-246V/380W,47-63HZ
Noise Standy<20dBA, painting <50dBA
Storage/Operation -10℃-35℃(59°F-95°F)
10%-70% relative humidity, in non-condensation state
Surface tracing Hyperbolic banner sensors, two-way induction up and down
Machine configuration
X axis guide 5m rails
Y axis guide 219cm
Z axis guide 14cm
Display screen 7’’ LCD
Spay distance 0.5-1cm
X axis effective stroke 470cm
Y axis effective stroke 170cm
Z axis effective stroke 10cm
Synchro belt 1pc
Drive rack 5pcs
Net picture print height 1.7m, unlimited width
Machine weight 71kg
Lead rails weight 10kg*5pcs
Applied wall Inside & outside putty wall, latex wall, white wall, diatom mud wall, shell powder wall,
wooden wall, paper, brick wall, canvas, etc.
Control configuration
Ink container capacity 400ml
Printhead cleaning Auto
Pump test Y
Z-Axis Automation Y
Level Y
Ultrasonic sensors 2pcs
Performance configuration
Language English
Painting mode Bidirectional
Auto blank skip Y
Ink supply mode Negative pressure auto ink supply
Color matching treatment Auto
Integrated voltage stabilizer Y
Ink Heating Y
Laser light Y
Painting Media All planar materials
Software Professional Printer Maintop Software, ZKMC output software
Computer system Windows XP, win7, win8, win10
Remarks The above data for reference only, may change due to continuous product/model upgrading.





Large Format Automatic Wall Printer Robot Metal Ceramic Picture Printing 0




We're a top and reliable 3D Wall Printing Machine supplier in Beijing, China. Our brand Zhongkemeichuang (ZKMC) is very famous for focusing on wall printer related R&D since 2013. Choose us you won’t regret in terms of quality and after sales services. Our machine can print different pictures on various materials. It's a very new and promising business opportunity with less than USD1/m2 cost, but has 10 times of high returns.

CCTV’s 55 minutes program “I Love Inventions” reported us as the pioneer in this industry.

Our wall printer participated the expo in Berlin IFA 2018, and Moscow 2019. We’re recognized by international customers worldwide.




Large Format Automatic Wall Printer Robot Metal Ceramic Picture Printing 1Large Format Automatic Wall Printer Robot Metal Ceramic Picture Printing 2Large Format Automatic Wall Printer Robot Metal Ceramic Picture Printing 3

Large Format Automatic Wall Printer Robot Metal Ceramic Picture Printing 4Large Format Automatic Wall Printer Robot Metal Ceramic Picture Printing 5Large Format Automatic Wall Printer Robot Metal Ceramic Picture Printing 6Large Format Automatic Wall Printer Robot Metal Ceramic Picture Printing 7Large Format Automatic Wall Printer Robot Metal Ceramic Picture Printing 8Large Format Automatic Wall Printer Robot Metal Ceramic Picture Printing 9
