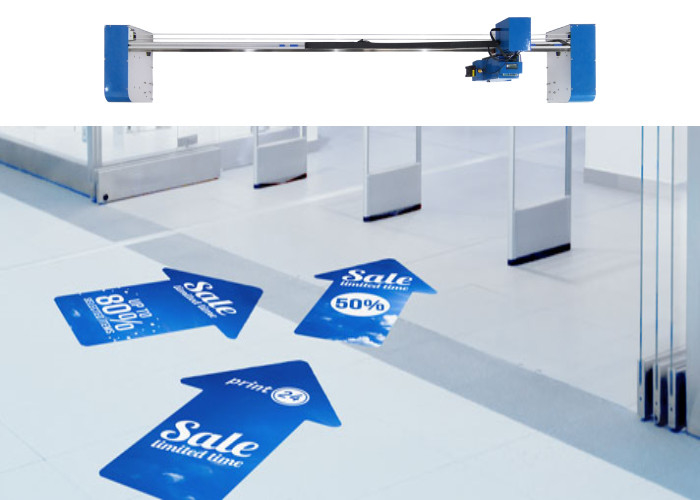

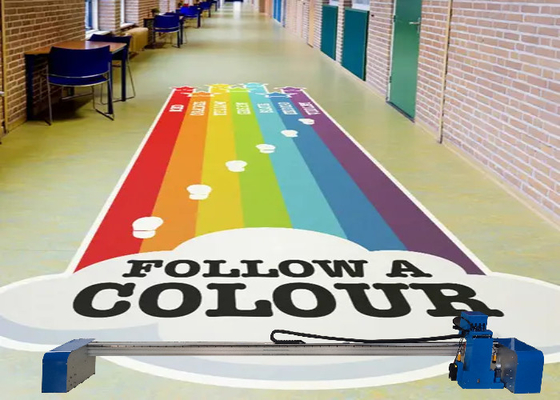

0.1m Led Flatbed Printer Ground Decoration Garage Graffiti

0.1m Led Flatbed Printer Ground Decoration Garage Graffiti

0.1m Led Flatbed Printer Ground Decoration Garage Graffiti
0.1m Led Flatbed Printer Ground Decoration Garage Graffiti
0.1m Led Flatbed Printer Ground Decoration Garage Graffiti
Product Details:
Place of Origin: Beijing, China
Brand Name: Zhongkemeichuang
Certification: RoHS for ink
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: 1 plywood box
Delivery Time: 5-10 work days
Payment Terms: T/T
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Name: Auto 2880dpi High Resolution Floor Printing Ground Decoration Garage Graffiti Printer Drive Motor: Multi-axis High-presion Serving Drive Motor, Synchronous Precise Movenment, Accurate Printing
Flash Test: Y Spray Distance: 0.5--1cm
Applied Floor: Indoor And Outdoor Parking Space, Basement Floor, Squre Floor, Shopping Mall Floor Etc. L*W*H (main body from ground): 0.4m*3.34m*0.45m(Width Can Be Tailor-made)
Painting precision: Adjustable From 720 DPI To 2880DPI Y Axis Guide: Limitless
Print Heads: 2 Epson Print Heads Ink: 5 Color UV Ink, CMYKW UV Ink, CMYK+WWWW
Painting size: 0.1---2.4m Width (can Be Tailor-made)Length: Limitless Printing Speed: 3--8㎡/h
High Light:

0.1m led flatbed printer

,

garage led flatbed printer

,

graffiti digital uv flatbed printing machine

Auto 2880dpi high resolution Floor Printing Ground Decoration Garage Graffiti Printer



A brief description of the working method of the ground printer is: The professional RIP software converts your imported pictures into machine code, the printer nozzle ejects CMYKW5 inks, and different inks are mixed on each Dot to form the color needed by the image, and then UV lamp cure it dired.

From the structural point of view, the ground printer is a wheeled structure with unlimited expansion capabilities in the vertical direction. In the horizontal direction, only a fixed width can be printed at a time. If you need to increase the width, you need to extend the horizontal guide. Or use the splicing function to expand the horizontal format.

The printer nozzle is equipped with 2 sensors, which can automatically sense the distance between the nozzle and the ground, so that the nozzle can maintain the best printing distance from the ground, and it can also prevent the nozzle from hitting the ground due to uneven ground.



0.1m Led Flatbed Printer Ground Decoration Garage Graffiti 00.1m Led Flatbed Printer Ground Decoration Garage Graffiti 1

0.1m Led Flatbed Printer Ground Decoration Garage Graffiti 20.1m Led Flatbed Printer Ground Decoration Garage Graffiti 3







Multi-function Flatbed UV Printer(Floor Printer)



Basic Parameters New arrival time April 2021
Data transmission mode USB 3.0
Sensor amount 2 ultrasonic sensors
L*W*H(main body from ground)

0.4m*3.3m*0.4m

(Width can be tailor-made)

Painting speed 3---8㎡/h
Ink type

Standard model: special UV ink,

CMYKW 5 colors

Print head amount 2
Ink consumption 8--12 ml /㎡
Ink cost of 1㎡ Less than 1usd
Painting precision 720---2880dpi adjustable
Painting direction Horizontal
Painting size

0.1---2.4m width (can be tailor-made)

Length: limitless

Machine configuration X axis guide Tailor-made
Y axis guide limitless
Z axis guide 14cm
Display screen N
X axis effective stroke Tailor-made
Y axis effective stroke limitless
Z axis effective stroke 10cm
Synchro belt 1PCS
Drive rack N
Applied floor Indoor and outdoor parking space, basement floor, square floor, shopping mall floor, etc
Control configuration Ink container capacity CMYK 100ml*4, WWWW,100ml*4
Print head cleaning Auto
Flash test Y
Ink jet test Y
Z-Axis Automation Y
Level Y
Laser light Y
Raster N
Ultrasonic sensors 2

Performance

configuration

Language switch English, Chinese
Painting mode Bidirectional
Automatic surface tracking

Laser positioning & ultrasonic sensor,

automatic sensing ground waves

Drive motor Multi-axis high-precision serving drive motor, synchronous precise movement, accurate printing
Image processing AI intelligent image processing
Static zone calibration Y
Step calibration Y
Print head buffer N
Spray distance 0.5-1cm
Ink supply mode Negative pressure auto ink supply
Color matching treatment Auto
Painting media All planar materials
Integrated voltage stabilizer Y
Laser positioning Y
Magnetic induction limit N
Auto blank skip Y
Ink heating N
Power supply 220V
Power-off continue N
Photo database your own photo resource, and we can provide you some theme pictures
Remarks:The above data for reference only, may change due to continuous product/model updating.





0.1m Led Flatbed Printer Ground Decoration Garage Graffiti 4



ZKMC ground printer is made of high technology, suitable for any material, with strong compatibility. ZKMC wall printer has professional coloring software, which can change color anytime and anywhere, and complete full-color image at one time without additional payment, achieves the best photo printing 3d effect.
