| Place of Origin: | Beijing, China |
| Brand Name: | Zhongkemeichuang |
| Certification: | RoHS for ink |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 plywood box |
| Delivery Time: | 5-10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets/month |
| Name: | Auto 2880dpi High Resolution Floor Printing Ground Decoration Garage Graffiti Printer | Drive Motor: | Multi-axis High-presion Serving Drive Motor, Synchronous Precise Movenment, Accurate Printing |
|---|---|---|---|
| Flash Test: | Y | Spray Distance: | 0.5--1cm |
| Applied Floor: | Indoor And Outdoor Parking Space, Basement Floor, Squre Floor, Shopping Mall Floor Etc. | L*W*H (main body from ground): | 0.4m*3.34m*0.45m(Width Can Be Tailor-made) |
| Painting precision: | Adjustable From 720 DPI To 2880DPI | Y Axis Guide: | Limitless |
| Print Heads: | 2 Epson Print Heads | Ink: | 5 Color UV Ink, CMYKW UV Ink, CMYK+WWWW |
| Painting size: | 0.1---2.4m Width (can Be Tailor-made)Length: Limitless | Printing Speed: | 3--8㎡/h |
| High Light: | 0.1m led flatbed printer,garage led flatbed printer,graffiti digital uv flatbed printing machine |
||

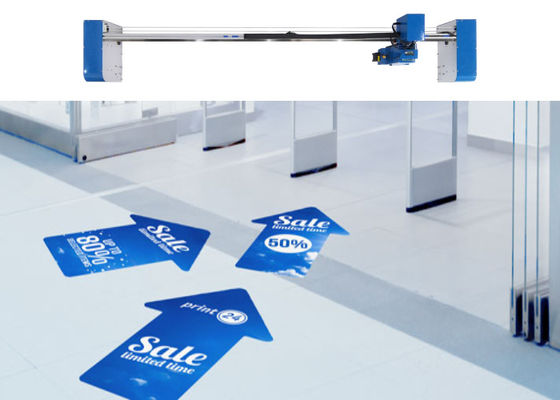

Auto 2880dpi high resolution Floor Printing Ground Decoration Garage Graffiti Printer
A brief description of the working method of the ground printer is: The professional RIP software converts your imported pictures into machine code, the printer nozzle ejects CMYKW5 inks, and different inks are mixed on each Dot to form the color needed by the image, and then UV lamp cure it dired.
From the structural point of view, the ground printer is a wheeled structure with unlimited expansion capabilities in the vertical direction. In the horizontal direction, only a fixed width can be printed at a time. If you need to increase the width, you need to extend the horizontal guide. Or use the splicing function to expand the horizontal format.
The printer nozzle is equipped with 2 sensors, which can automatically sense the distance between the nozzle and the ground, so that the nozzle can maintain the best printing distance from the ground, and it can also prevent the nozzle from hitting the ground due to uneven ground.
|
Multi-function Flatbed UV Printer(Floor Printer)
|
||
| Basic Parameters | New arrival time | April 2021 |
| Data transmission mode | USB 3.0 | |
| Sensor amount | 2 ultrasonic sensors | |
| L*W*H(main body from ground) |
0.4m*3.3m*0.4m (Width can be tailor-made) |
|
| Painting speed | 3---8㎡/h | |
| Ink type |
Standard model: special UV ink, CMYKW 5 colors |
|
| Print head amount | 2 | |
| Ink consumption | 8--12 ml /㎡ | |
| Ink cost of 1㎡ | Less than 1usd | |
| Painting precision | 720---2880dpi adjustable | |
| Painting direction | Horizontal | |
| Painting size |
0.1---2.4m width (can be tailor-made) Length: limitless |
|
| Machine configuration | X axis guide | Tailor-made |
| Y axis guide | limitless | |
| Z axis guide | 14cm | |
| Display screen | N | |
| X axis effective stroke | Tailor-made | |
| Y axis effective stroke | limitless | |
| Z axis effective stroke | 10cm | |
| Synchro belt | 1PCS | |
| Drive rack | N | |
| Applied floor | Indoor and outdoor parking space, basement floor, square floor, shopping mall floor, etc | |
| Control configuration | Ink container capacity | CMYK 100ml*4, WWWW,100ml*4 |
| Print head cleaning | Auto | |
| Flash test | Y | |
| Ink jet test | Y | |
| Z-Axis Automation | Y | |
| Level | Y | |
| Laser light | Y | |
| Raster | N | |
| Ultrasonic sensors | 2 | |
|
Performance configuration |
Language switch | English, Chinese |
| Painting mode | Bidirectional | |
| Automatic surface tracking |
Laser positioning & ultrasonic sensor, automatic sensing ground waves |
|
| Drive motor | Multi-axis high-precision serving drive motor, synchronous precise movement, accurate printing | |
| Image processing | AI intelligent image processing | |
| Static zone calibration | Y | |
| Step calibration | Y | |
| Print head buffer | N | |
| Spray distance | 0.5-1cm | |
| Ink supply mode | Negative pressure auto ink supply | |
| Color matching treatment | Auto | |
| Painting media | All planar materials | |
| Integrated voltage stabilizer | Y | |
| Laser positioning | Y | |
| Magnetic induction limit | N | |
| Auto blank skip | Y | |
| Ink heating | N | |
| Power supply | 220V | |
| Power-off continue | N | |
| Photo database | your own photo resource, and we can provide you some theme pictures | |
| Remarks:The above data for reference only, may change due to continuous product/model updating. | ||
ZKMC ground printer is made of high technology, suitable for any material, with strong compatibility. ZKMC wall printer has professional coloring software, which can change color anytime and anywhere, and complete full-color image at one time without additional payment, achieves the best photo printing 3d effect.
