| Place of Origin: | Beijing, China |
| Brand Name: | Zhongkemeichuang |
| Certification: | CE for machine, RoHS for ink |
| Model Number: | ZK-Q8 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 plywood box |
| Delivery Time: | 5-10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets/month |
| Name: | Zkmc Multifunction Automatic Vertical Wall Printing Robot Digital Wall Painting 3d Inkjet Printer | Net Picture Print Height: | Standard 1.8m (others: 2.0m, 2.7m), Unlimited Width |
|---|---|---|---|
| Applicable Industries: | Printing Industry | Display Screen: | 7'' LCD, Touch Screen |
| Spay Distance: | 0.5-1cm | Painting Speed: | Multispeed Adjustable, ~1-10m2/h |
| High Light: | speed adjustable inkjet wall printing machine,low noise inkjet wall printing machine,speed adjustable 3d wall inkjet printer |
||

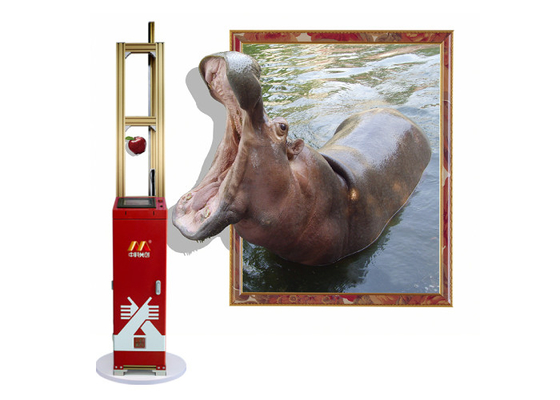

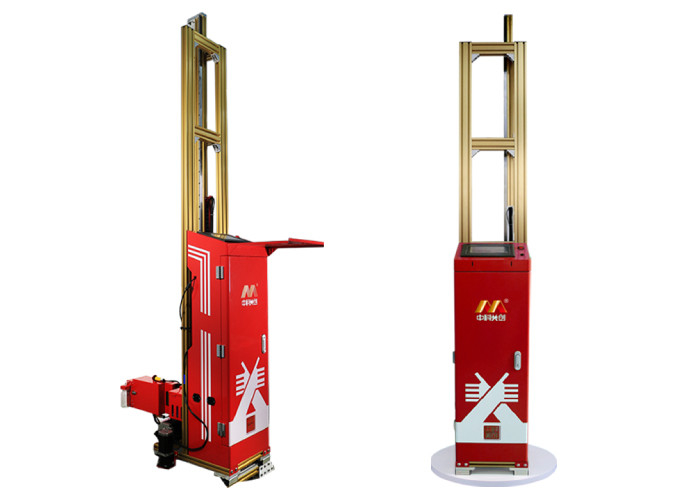

Zkmc Multifunction Automatic Vertical Wall Printing Robot Digital Wall Painting 3d Inkjet Printer
Zkmc vertical wall printer fits for a variety of materials, including but not limited to brick wall, cement wall, shell powder wall, paper, etc., with wide applications, low cost of less than USD1/printhead/m2 painting, fast printing speed and convenient operation. You can successfully master the operation within 1 or 2 days.
| Basic parameters | |
| Data transmission mode | USB |
| L*W*H (main body from ground) | Standard model: 70*31*239cm (height customizable) |
| Printhead | Auto cleaning |
| Ink consumption | 8-12ml/printhead/m2 painting (less than USD1/m2) |
| Ink base color | CMYK 4 colors of special water based ink (CMYK or CMYKW 4 or 5 colors of using uv ink machine) |
| Painting precision | From 720DPI, upto 2880DPI |
| Painting direction | Vertical |
| Painting speed | Multispeed adjustable, ~1-10m2/h |
| Voltage/power | 90-246V/380W,47-63HZ |
| Noise | Standy<20dBA, painting <50dBA |
| Storage/Operation | -10℃-35℃(59°F-95°F) |
| 10%-70% relative humidity, in non-condensation state | |
| Surface tracing | Hyperbolic banner sensors, two-way induction up and down |
| X axis guide | 5m rail |
| Y axis effective stroke | Standard model: 180cm (standard 170cm of 1-printhead uv ink machine) |
| Z axis effective stroke | 10cm |
| Synchro belt | 1pc |
| Drive rack | 5pcs |
| Net picture print height | Standard 1.8m of water based ink machine, standard 1.7m of 1-printhead uv ink machine (height customizable), unlimited width |
| Machine weight | 62kg |
| Lead rails weight | 10kg/piece*5pcs, total 50kg |
| Applied wall | Inside & outside putty wall, latex wall, white wall, diatom mud wall, shell powder wall, paper, brick wall, normal white wall, canvas, etc. UV ink machine can also print on glass, pvc, metal, ceramic tiles, etc. |
| Language | English |
| Auto blank skip | Y |
| Ink supply mode | Negative pressure auto ink supply |
| Color matching treatment | Auto |
| Ink use | Special water based ink |
| Surface treatment after printing | Water based varnish for water based ink printing mainly |
| Integrated voltage stabilizer | Y |
| Ink Heating | Y |
| Packing | 1 plywood packing for standard model of machine, machine and inks in 1 box, total gross weight ~220kg, box dimension ~237x81x68cm |
| Remarks | The above data for reference only, may change due to continuous product/model upgrading. |
With the decoration industry is hot, now people are no longer the decoration of the previous white wall red tile requirements, in addition to some environmentally friendly materials, they are more pursuit of design feeling, so now ZKMC 3d painting effect by a lot of consumers, there are many people in this area of the market, to consult us about how much money wall printer. Talking about 3d mural painting, in fact, many customers bought ZKMC 3D wall printer which is very good.
Want to do in this line of fine, be sure to choose to buy the ZKMC 3D wall printer this project. Because it not only gives you a wall printer, but also gives you how to use this machine correctly by professional trainings. We believe that with the help of headquarters, you will be more successful.
