| Place of Origin: | Beijing, China |
| Brand Name: | Zhongkemeichuang |
| Certification: | CE for machine, RoHS for ink |
| Model Number: | ZK-Q8 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 plywood box |
| Delivery Time: | 5-10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets/month |
| Name: | 2m Printing Height Special Water Based Ink Automatic 3d Wall Inkjet Printer | Ink Container Capacity: | 400ml |
|---|---|---|---|
| Integrated Voltage Stabilizer: | Yes | Stepper Motor: | Yes |
| Ink Heating Program: | Yes | Auto Skip Blank: | Yes |
| High Light: | 3D Wall Inkjet Printer Machine,Water Based 3D Wall Inkjet Printer,Wall Inkjet Printer Machine 2m |
||

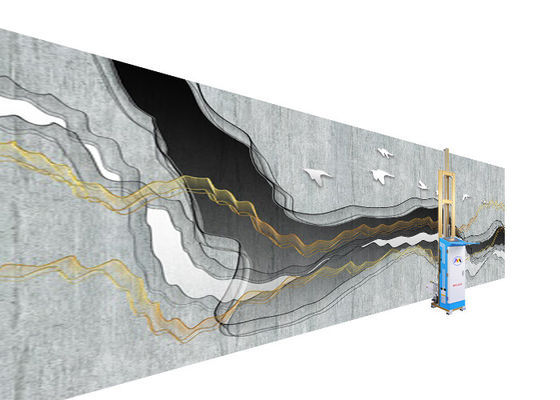

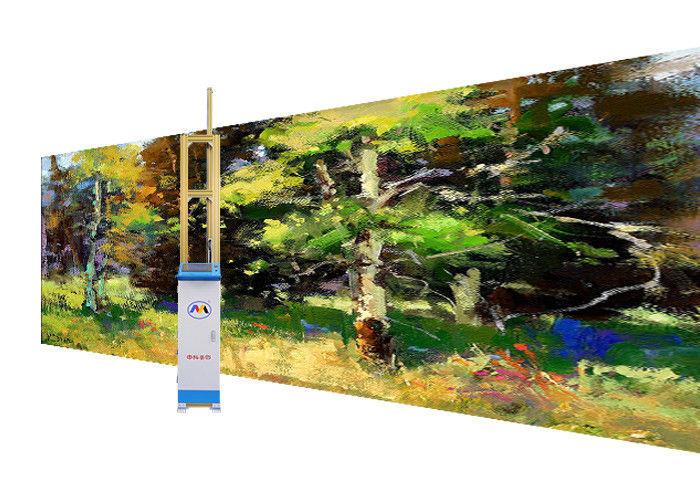

2m Printing Height Special Water Based Ink Automatic 3d Wall Inkjet Printer
ZKMC 3d wall inkjet printer set environmental protection, green, safety three advantages in one, the use of non-toxic tasteless, strong water resistance of special water solvent-based ink nano pigments, just in advance computer data settings, through painting equipment can complete automatic painting operations, wall painting effect is good, strong independent selectivity, favored by the vast number of decoration users.
ZKMC 3d wall inkjet printer operation is simple, commonly known as fool-style operation, just need to choose a good picture, start work after automatic spray painting does not need manual control, simple and convenient, hands-on will, and our headquarter will also help you free technical training, to solve your worries.
| Basic parameters | |
| Data transmission mode | USB |
| L*W*H (main body from ground) | Standard model: 70*31*239cm (the other models: 259cm, 329cm) |
| Printhead | Auto cleaning |
| Ink consumption | 8-12ml/m2 (less than USD1/m2) |
| Ink base color | Dual 4 colors (CMYK, CMYK), use special water based ink |
| Painting precision | From 720DPI, upto 2880DPI |
| Painting direction | Vertical |
| Painting speed | Multispeed adjustable, ~1-10m2/h |
| Voltage/power | 90-246V/380W,47-63HZ |
| Noise | Standy<20dBA, painting <50dBA |
| Storage/Operation | -10℃-35℃(59°F-95°F) |
| 10%-70% relative humidity, in non-condensation state | |
| Surface tracing | Hyperbolic banner sensors, two-way induction up and down |
| Machine configuration | |
| X axis guide | 5m rails |
| Y axis guide | Standard model: 219cm (other models: 239cm, 309cm) |
| Z axis guide | 15cm |
| Display screen | 7’’ LCD, touch screen |
| Spay distance | 0.5-1cm |
| X axis effective stroke | 470cm |
| Y axis effective stroke | Standard model: 180cm (other models: 200cm, 270cm) |
| Z axis effective stroke | 10cm |
| Synchro belt | 1pc |
| Drive rack | 5pcs |
| Net picture print height | Standard 1.8m (other models: 2.0m, 2.7m), unlimited width |
| Machine weight | 62kg |
| Lead rails weight | 10kg/piece*5pcs, total 50kg |
| Applied wall | Inside & outside putty wall, latex wall, white wall, diatom mud wall, shell powder wall, paper, brick wall, normal white wall, canvas, etc. |
| Packing | 1 plywood packing for standard model of machine, machine and inks in 1 box, total gross weight ~220kg, box dimension ~237x81x68cm |
| Remarks | The above data for reference only, may change due to continuous product/model upgrading. |
Home wall painting as a cultural carrier, for beautifying the urban environment, enhance the image of government agencies, promote the new countryside, build a cultural wall also plays a huge role, so ZKMC 3d wall painting machine ushered in its spring. ZKMC 3d wall printing machine quality is excellent, you can be trusted.
As the domestic advanced wall painting equipment, ZKMC 3d wall painting machine does not need any operating technology, for friends who want to get rich through entrepreneurship, choose ZKMC wall painting machine small book investment, will certainly bring you a rich return.
