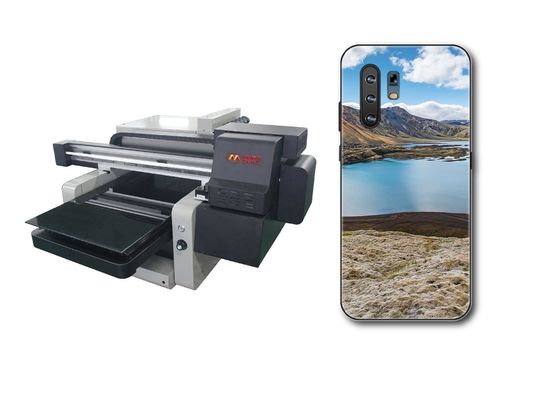

Full Automatic 5 Colors 60x40cm 120w Uv Flatbed Printer

Full Automatic 5 Colors 60x40cm 120w Uv Flatbed Printer

Full Automatic 5 Colors 60x40cm 120w Uv Flatbed Printer
video
Full Automatic 5 Colors 60x40cm 120w Uv Flatbed Printer
Product Details:
Place of Origin: Beijing, China
Brand Name: Zhongkemeichuang
Certification: RoHS for ink
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: 1 plywood box
Delivery Time: 5-10 work days
Payment Terms: T/T
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Name: Full Automatic UV Flatbed Printer 5colors 60*40cm For Any Material Printing For Multifunction DTG 3D Uv Machine Printer UV lamp series: 20 Section Uv Power Adjustable
After Warranty Service: Online Support Available UV lamp power: 390-400NM
Light intensity: 500MW/W Ink system: Refillable Cartridge System
Ink Tube Capacity: 220ml*5 Printing Size: A2+,400*600MM
High Light:

60x40cm uv flatbed printer

,

120w uv flatbed printer

,

flatbed printing machine ZKMC

Full Automatic UV flatbed printer 5colors 60*40cm for Any material printing for Multifunction DTG 3D uv machine printer



ZKMC multifunctional Flatbed UV Printer, can print a variety of materials.Can print on stone, USB drive, packing box, portable battery, hand held fan, mobile phone case, decorative painting, identification cards, cosmetic mirror, foundation make-up cover, skin care products cover, lighter, badge, building blocks, note book or any other flat surfaces by using our special uv ink. To satisfy you various needs in any season.



The printhead is imported from Japan with industrial production speed and automatic cleaning funciton and can save ink,  the print range can be as wide as 40*60cm.



The printing color is gorgeous, no plate making, easy to operate.



In the future, personalized customized services/patterns will become the mainstreem of consumption.



We are seeking agents worldwide, hope cowork with You soon.



Full Automatic 5 Colors 60x40cm 120w Uv Flatbed Printer 0

Full Automatic 5 Colors 60x40cm 120w Uv Flatbed Printer 1




UV lamp series
20 section uv power adjustable
UV lamp power single lamp configuration 120w
UV lamp life 50000 hours
UV lamp wavelength 390-400NM
Light intensity 500MW/W
Temperature adjustment automatic on/off, 25-30℃
Software ZMKM output software, Rip
Ink system refillable cartridge system
Cooling system air cooling+water cooling
Print head Epson I1600
Print head protection Auto checking
Ink tube capacity 220ml*5
Ink reproduction Linear curve ICC calibration curve
Print color KCMY+W
Print speed High /Medium /Low adjustable
Print direction single/bi-direction
Max. print medium thickness 0-150mm
Max. print medium weight 30kg
Max. print resolution 2440*1440*720dpi
Work power 110V-220V, 50-60HZ
Port USB2.0/ USB 3.0/ TCPIP
Work environment 25-30℃, 50% humidity, no dust
Machine size 1200*1000*660mm
Packaging dimension 1300*900*1125mm
Maximum printing size A2+,400*600MM
Print head maintenance Clean the print head before using and after using, keep the print head moisture when it is not work
Computer system request Window7/ 10
Platform lifting configuration Screw rail plus linear guide rail
Positioning mode computer typesetting printing positioning
Height adjustment mode software one key control /physical keyboard control
Platform type glass platform +aluminum platform
Ink processing system Can set time for ink automatic cycling and mixing (ink colors matching),have liquid level sensor for ink cooling alarm
Transmission way X axis linear guide rail, Two linear guiderails on both sides of Y axis,equipped with double high-precision grinding lead screws
Remark above data for reference only. Data may change due to continuous product upgrading and development.



Full Automatic 5 Colors 60x40cm 120w Uv Flatbed Printer 2



Q&A

1. Do you provide warranty for machine
Yes, we provide 1 year warranty for machine, printhead excluded.

2. How can I buy your machine?
You may contact us directly for machine purchasing. Or for any info needed.

3. How can I make the payment?
Currently, our company accept T/T and cash payment.
