| Place of Origin: | Beijing, China |
| Brand Name: | Zhongkemeichuang |
| Certification: | RoHS for ink |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 plywood box |
| Delivery Time: | 5-10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets/month |
| Name: | Smart 2 Print Heads Auto Cleaning CMYKW 5 Colors Special UV Ink Floor Printer With Laser Light | Print Heads Cleaning: | Auto |
|---|---|---|---|
| Print Heads: | 2 Epson Print Heads | Ink: | 5 Color UV Ink, CMYKW UV Ink, CMYK+WWWW |
| Laser Light: | Y | L*W*H (main body from ground): | 0.4m*3.34m*0.45m(Width Can Be Tailor-made) |
| Painting precision: | Adjustable From 720 DPI To 2880DPI | Y Axis Guide: | Limitless |
| Painting size: | 0.1---2.4m Width (can Be Tailor-made)Length: Limitless | Ink Container Capacity: | 400ml CMYK, 400ml WWWW |
| Printing Speed: | 3--8㎡/h | Applied Floor: | Indoor And Outdoor Parking Space, Basement Floor, Squre Floor, Shopping Mall Floor Etc. |
| High Light: | 720dpi uv digital flatbed printing machine,smart uv digital flatbed printing machine,auto cleaning digital flatbed printer |
||

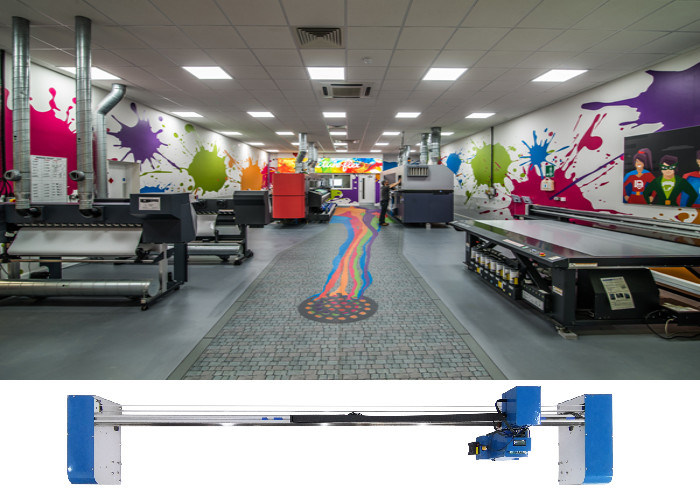

Smart 2 print heads Auto Cleaning CMYKW 5 colors special UV ink floor printer with laser light
This multifunction flatbed UV printer can print on the ground for ground decoration, can print on parking space, can give Your driving a special , relaxed and fun feeling. Furthermore, this printer also can print on wood doors, metals, glass, ceilings etc any material surface.
Wherever there is a car, there is a market, everybody want their parking space decorated. There are so many cars in underground parking stations, You can earn around 1000 euro per day if You just print 3 standard parking places per day which is around 30 squre meters (each 10-meter parking space You can charge over USD300).
|
|
||
| Basic Parameters | New arrival time | April 2021 |
| Data transmission mode | USB 3.0 | |
| Sensor amount | 2 ultrasonic sensors | |
| L*W*H(main body from ground) |
0.4m*3.3m*0.4m |
|
| Painting speed | 3---8㎡/h | |
| Ink type |
Standard model: special UV ink, |
|
| Print head amount | 2 | |
| Ink consumption | 8--12 ml /㎡ | |
| Ink cost of 1㎡ | Less than 1usd | |
| Painting precision | 720---2880dpi adjustable | |
| Painting direction | Horizontal | |
| Painting size |
0.1---2.4m width (can be tailor-made) |
|
| Machine configuration | X axis guide | Tailor-made |
| Y axis guide | limitless | |
| Z axis guide | 14cm | |
| Display screen | N | |
| X axis effective stroke | Tailor-made | |
| Y axis effective stroke | limitless | |
| Z axis effective stroke | 10cm | |
| Synchro belt | 1PCS | |
| Drive rack | N | |
| Applied floor | Indoor and outdoor parking space, basement floor, square floor, shopping mall floor, etc | |
| Control configuration | Ink container capacity | CMYK 100ml*4, WWWW,100ml*4 |
| Print head cleaning | Auto | |
| Flash test | Y | |
| Ink jet test | Y | |
| Z-Axis Automation | Y | |
| Level | Y | |
| Laser light | Y | |
| Raster | N | |
| Ultrasonic sensors | 2 | |
|
Performance |
Language switch | English, Chinese |
| Painting mode | Bidirectional | |
| Automatic surface tracking |
Laser positioning & ultrasonic sensor, |
|
| Drive motor | Multi-axis high-precision serving drive motor, synchronous precise movement, accurate printing | |
| Image processing | AI intelligent image processing | |
| Static zone calibration | Y | |
| Step calibration | Y | |
| Print head buffer | N | |
| Spray distance | 0.5-1cm | |
| Ink supply mode | Negative pressure auto ink supply | |
| Color matching treatment | Auto | |
| Painting media | All planar materials | |
| Integrated voltage stabilizer | Y | |
| Laser positioning | Y | |
| Magnetic induction limit | N | |
| Auto blank skip | Y | |
| Ink heating | N | |
| Power supply | 220V | |
| Power-off continue | N | |
| Photo database | your own photo resource, and we can provide you some theme pictures | |
| Remarks:The above data for reference only, may change due to continuous product/model updating. | ||
ZKMC ground printer is made of high technology, suitable for any material, with strong compatibility. ZKMC wall printer has professional coloring software, which can change color anytime and anywhere, and complete full-color image at one time without additional payment, achieves the best photo printing 3d effect.
Contact Person: Liz Wen
Tel: Mob/WhatsApp/WeChat: +86-13718671303, Landline: +86-10-56147509
