| Place of Origin: | Beijing, China |
| Brand Name: | Zhongkemeichuang |
| Certification: | RoHS for ink |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 plywood box |
| Delivery Time: | 5-10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets/month |
| Name: | Auto Surface Tracing Auto Blank Skip Auto Ink Heating CMYKW Auto Color Matching 3d Floor Ground Garage Printing | Ink Heating: | Y |
|---|---|---|---|
| Auto Sensor Tracing: | Y | L*W*H (main body from ground): | 0.4m*3.34m*0.45m(Width Can Be Tailor-made) |
| Painting precision: | Adjustable From 720 DPI To 2880DPI | Y Axis Guide: | Limitless |
| Print Heads: | 2 Epson Print Heads | Ink: | 5 Color UV Ink, CMYKW UV Ink, CMYK+WWWW |
| Painting size: | 0.1---2.4m Width (can Be Tailor-made)Length: Limitless | Printing Speed: | 3--8㎡/h |
| Applied Floor: | Indoor And Outdoor Parking Space, Basement Floor, Squre Floor, Shopping Mall Floor Etc. | Auto Skip Blank: | Auto |
| High Light: | 2400mm flatbed uv digital printer,epson printheads flatbed uv digital printer,auto surface tracing flatbed color printer |
||

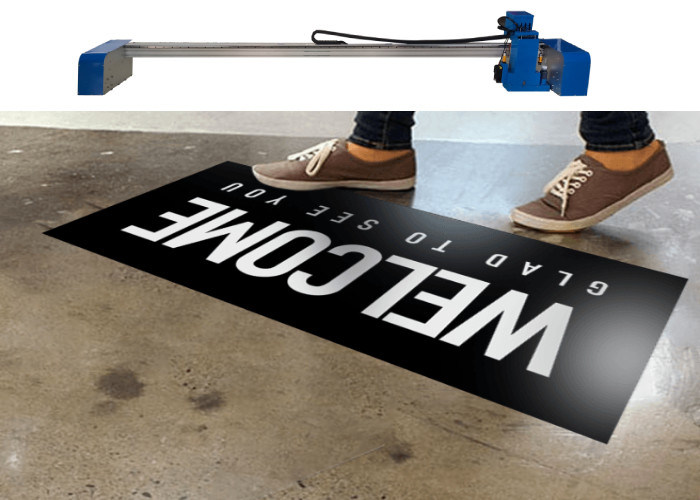

Auto Surface Tracing Auto Blank Skip Auto Ink Heating CMYKW Auto Color matching 3d floor ground garage printing
With the help of tracing system, the floor printer can print on curved and uneven brick surfaces.
In order to ensure print quality, the printer was installed two high-precision (up to 2880dpi )sensors that can automatically sense the distance between the print head and the ground. Even on uneven floors, the print head will automatically shrink to maintain the best distance from the floor to ensure the best print quality.
The ink cost only around 1 usd per square meter, and you can charge 300---600usd from Your clients to print a stand garage 10 square meters.
|
Multi-function Flatbed UV Printer(Floor Printer)
|
||
| Basic Parameters | New arrival time | April 2021 |
| Data transmission mode | USB 3.0 | |
| Sensor amount | 2 ultrasonic sensors | |
| L*W*H(main body from ground) |
0.4m*3.3m*0.4m (Width can be tailor-made) |
|
| Painting speed | 3---8㎡/h | |
| Ink type |
Standard model: special UV ink, CMYKW 5 colors |
|
| Print head amount | 2 | |
| Ink consumption | 8--12 ml /㎡ | |
| Ink cost of 1㎡ | Less than 1usd | |
| Painting precision | 720---2880dpi adjustable | |
| Painting direction | Horizontal | |
| Painting size |
0.1---2.4m width (can be tailor-made) Length: limitless |
|
| Machine configuration | X axis guide | Tailor-made |
| Y axis guide | limitless | |
| Z axis guide | 14cm | |
| Display screen | N | |
| X axis effective stroke | Tailor-made | |
| Y axis effective stroke | limitless | |
| Z axis effective stroke | 10cm | |
| Synchro belt | 1PCS | |
| Drive rack | N | |
| Applied floor | Indoor and outdoor parking space, basement floor, square floor, shopping mall floor, etc | |
| Control configuration | Ink container capacity | CMYK 100ml*4, WWWW,100ml*4 |
| Print head cleaning | Auto | |
| Flash test | Y | |
| Ink jet test | Y | |
| Z-Axis Automation | Y | |
| Level | Y | |
| Laser light | Y | |
| Raster | N | |
| Ultrasonic sensors | 2 | |
|
Performance configuration |
Language switch | English, Chinese |
| Painting mode | Bidirectional | |
| Automatic surface tracking |
Laser positioning & ultrasonic sensor, automatic sensing ground waves |
|
| Drive motor | Multi-axis high-precision serving drive motor, synchronous precise movement, accurate printing | |
| Image processing | AI intelligent image processing | |
| Static zone calibration | Y | |
| Step calibration | Y | |
| Print head buffer | N | |
| Spray distance | 0.5-1cm | |
| Ink supply mode | Negative pressure auto ink supply | |
| Color matching treatment | Auto | |
| Painting media | All planar materials | |
| Integrated voltage stabilizer | Y | |
| Laser positioning | Y | |
| Magnetic induction limit | N | |
| Auto blank skip | Y | |
| Ink heating | N | |
| Power supply | 220V | |
| Power-off continue | N | |
| Photo database | your own photo resource, and we can provide you some theme pictures | |
| Remarks:The above data for reference only, may change due to continuous product/model updating. | ||
ZKMC ground printer is made of high technology, suitable for any material, with strong compatibility. ZKMC wall printer has professional coloring software, which can change color anytime and anywhere, and complete full-color image at one time without additional payment, achieves the best photo printing 3d effect.
Contact Person: Liz Wen
Tel: Mob/WhatsApp/WeChat: +86-13718671303, Landline: +86-10-56147509
