Auto Clean Multifunction Flatbed Printer 2880 Dpi For Parking Spot

Auto Clean Multifunction Flatbed Printer 2880 Dpi For Parking Spot

Auto Clean Multifunction Flatbed Printer 2880 Dpi For Parking Spot
Auto Clean Multifunction Flatbed Printer 2880 Dpi For Parking Spot
Auto Clean Multifunction Flatbed Printer 2880 Dpi For Parking Spot
Product Details:
Place of Origin: Beijing, China
Brand Name: Zhongkemeichuang
Certification: RoHS for ink
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: 1 plywood box
Delivery Time: 5-10 work days
Payment Terms: T/T
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Name: Auto Clean 2880 Dpi Parking Spot Printer 3D Floor Printer Blue Sea Market Project Print Head Auto Clean: Y
Printing Speed: 3--8㎡/h Ink: 5 Color UV Ink, CMYKW UV Ink, CMYK+WWWW
L*W*H (main body from ground): 0.4m*3.34m*0.45m(Width Can Be Tailor-made) Painting precision: Adjustable From 720 DPI To 2880DPI
Y Axis Guide: Limitless Sensors: 2pcs
Print Heads: 2 Epson Print Heads Painting size: 0.1---2.4m Width (can Be Tailor-made)Length: Limitless
Ink Container Capacity: 400ml CMYK, 400ml WWWW Applied Floor: Indoor And Outdoor Parking Space, Basement Floor, Squre Floor, Shopping Mall Floor Etc.
High Light:

auto clean multifunction flatbed printer

,

multifunction flatbed printer 2880 dpi

,

parking spot flatbed color printer

Auto clean 2880 dpi Parking Spot Printer 3D Floor Printer blue sea market project

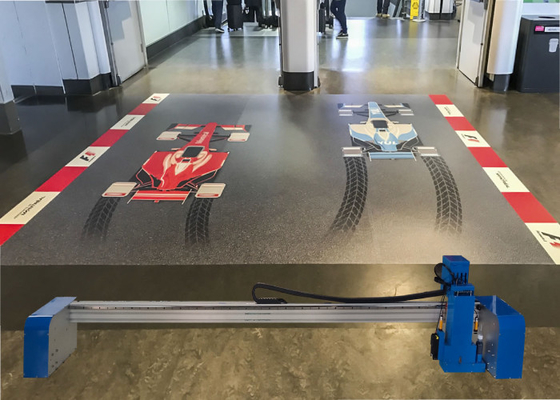

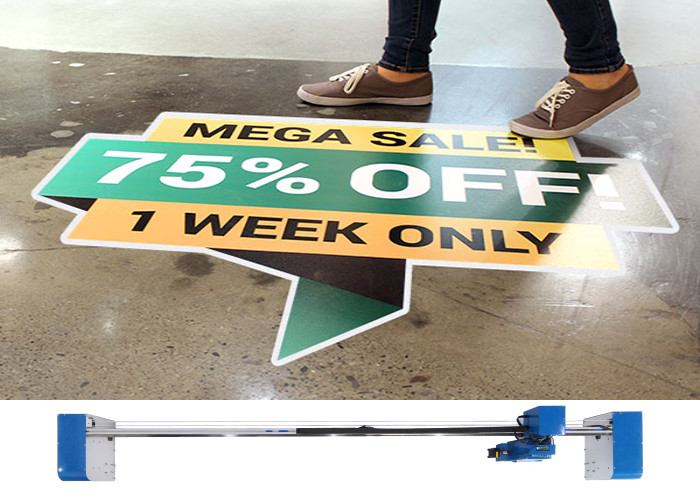

Our Parking Spot Printer can print out any images directly on the floor.

Compared with the hand-drawn image, the machine printing effect is more realistic, more efficient, much more cost-effective, and  longer keeping time.

The hand-drawn image on the parking spot is easier to fade off, and the graphic printed with UV ink shines and can last for several years. And also has good abrasion resistance.



Auto Clean Multifunction Flatbed Printer 2880 Dpi For Parking Spot 0Auto Clean Multifunction Flatbed Printer 2880 Dpi For Parking Spot 1

Auto Clean Multifunction Flatbed Printer 2880 Dpi For Parking Spot 2Auto Clean Multifunction Flatbed Printer 2880 Dpi For Parking Spot 3







Multi-function Flatbed UV Printer(Floor Printer)



Basic Parameters New arrival time April 2021
Data transmission mode USB 3.0
Sensor amount 2 ultrasonic sensors
L*W*H(main body from ground)

0.4m*3.3m*0.4m

(Width can be tailor-made)

Painting speed 3---8㎡/h
Ink type

Standard model: special UV ink,

CMYKW 5 colors

Print head amount 2
Ink consumption 8--12 ml /㎡
Ink cost of 1㎡ Less than 1usd
Painting precision 720---2880dpi adjustable
Painting direction Horizontal
Painting size

0.1---2.4m width (can be tailor-made)

Length: limitless

Machine configuration X axis guide Tailor-made
Y axis guide limitless
Z axis guide 14cm
Display screen N
X axis effective stroke Tailor-made
Y axis effective stroke limitless
Z axis effective stroke 10cm
Synchro belt 1PCS
Drive rack N
Applied floor Indoor and outdoor parking space, basement floor, square floor, shopping mall floor, etc
Control configuration Ink container capacity CMYK 100ml*4, WWWW,100ml*4
Print head cleaning Auto
Flash test Y
Ink jet test Y
Z-Axis Automation Y
Level Y
Laser light Y
Raster N
Ultrasonic sensors 2

Performance

configuration

Language switch English, Chinese
Painting mode Bidirectional
Automatic surface tracking

Laser positioning & ultrasonic sensor,

automatic sensing ground waves

Drive motor Multi-axis high-precision serving drive motor, synchronous precise movement, accurate printing
Image processing AI intelligent image processing
Static zone calibration Y
Step calibration Y
Print head buffer N
Spray distance 0.5-1cm
Ink supply mode Negative pressure auto ink supply
Color matching treatment Auto
Painting media All planar materials
Integrated voltage stabilizer Y
Laser positioning Y
Magnetic induction limit N
Auto blank skip Y
Ink heating N
Power supply 220V
Power-off continue N
Photo database your own photo resource, and we can provide you some theme pictures
Remarks:The above data for reference only, may change due to continuous product/model updating.





Auto Clean Multifunction Flatbed Printer 2880 Dpi For Parking Spot 4



ZKMC ground printer is made of high technology, suitable for any material, with strong compatibility. ZKMC wall printer has professional coloring software, which can change color anytime and anywhere, and complete full-color image at one time without additional payment, achieves the best photo printing 3d effect.
