Place of Origin: | Beijing, China |
Brand Name: | Zhongkemeichuang |
Certification: | RoHS for ink |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiable |
Packaging Details: | 1 plywood box |
Delivery Time: | 5-10 work days |
Payment Terms: | T/T |
Supply Ability: | 100 sets/month |
Name: | 5 Colors 60x40cm 120w A2 Uv Flatbed Printer Full Automatic | UV lamp series: | 20 Section Uv Power Adjustable |
---|---|---|---|
After Warranty Service: | Online Support Available | UV lamp power: | 390-400NM |
Light intensity: | 500MW/W | Ink system: | Refillable Cartridge System |
Ink Tube Capacity: | 220ml*5 | Printing Size: | A2+,400*600MM |
Highlight: | a2 uv printer,silent a2 uv flatbed printer,a2 uv flatbed printer |

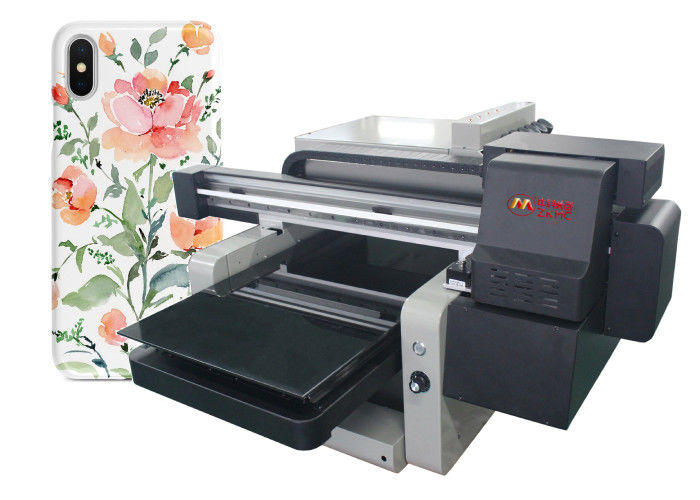

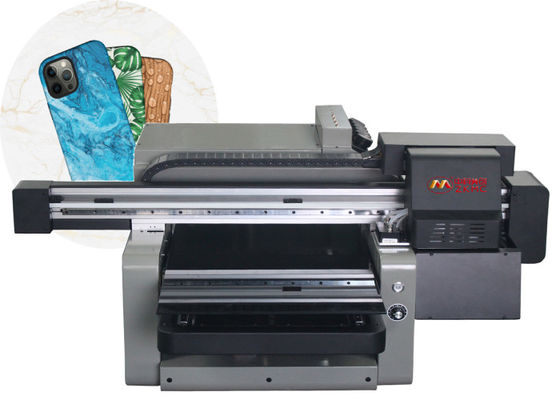

5 Colors 60x40cm 120w A2 Uv Flatbed Printer Full Automatic
Why flatbed UV Printer is frequently choosen by investors?
Because it suits well many materials including ceramic, leather, pvc, wood, glass, metal etc. and it can bring the machine owner convenience and large income, whether it is for family/company self use, or for advettising companies printing for clients, it is a good choice.
ZKMC multifunctional flatbed UV printer is our 2021 new product, we use imported Epson Printhead, and the printing effect is great.
UV lamp series |
20 section uv power adjustable |
UV lamp power | single lamp configuration 120w |
UV lamp life | 50000 hours |
UV lamp wavelength | 390-400NM |
Light intensity | 500MW/W |
Temperature adjustment | automatic on/off, 25-30℃ |
Software | ZMKM output software, Rip |
Ink system | refillable cartridge system |
Cooling system | air cooling+water cooling |
Print head | Epson I1600 |
Print head protection | Auto checking |
Ink tube capacity | 220ml*5 |
Ink reproduction | Linear curve ICC calibration curve |
Print color | KCMY+W |
Print speed | High /Medium /Low adjustable |
Print direction | single/bi-direction |
Max. print medium thickness | 0-150mm |
Max. print medium weight | 30kg |
Max. print resolution | 2440*1440*720dpi |
Work power | 110V-220V, 50-60HZ |
Port | USB2.0/ USB 3.0/ TCPIP |
Work environment | 25-30℃, 50% humidity, no dust |
Machine size | 1200*1000*660mm |
Packaging dimension | 1300*900*1125mm |
Maximum printing size | A2+,400*600MM |
Print head maintenance | Clean the print head before using and after using, keep the print head moisture when it is not work |
Computer system request | Window7/ 10 |
Platform lifting configuration | Screw rail plus linear guide rail |
Positioning mode | computer typesetting printing positioning |
Height adjustment mode | software one key control /physical keyboard control |
Platform type | glass platform +aluminum platform |
Ink processing system | Can set time for ink automatic cycling and mixing (ink colors matching),have liquid level sensor for ink cooling alarm |
Transmission way | X axis linear guide rail, Two linear guiderails on both sides of Y axis,equipped with double high-precision grinding lead screws |
Remark above data for reference only. Data may change due to continuous product upgrading and development. |
